Sennheiser 502399 User Manual
Page 24
22

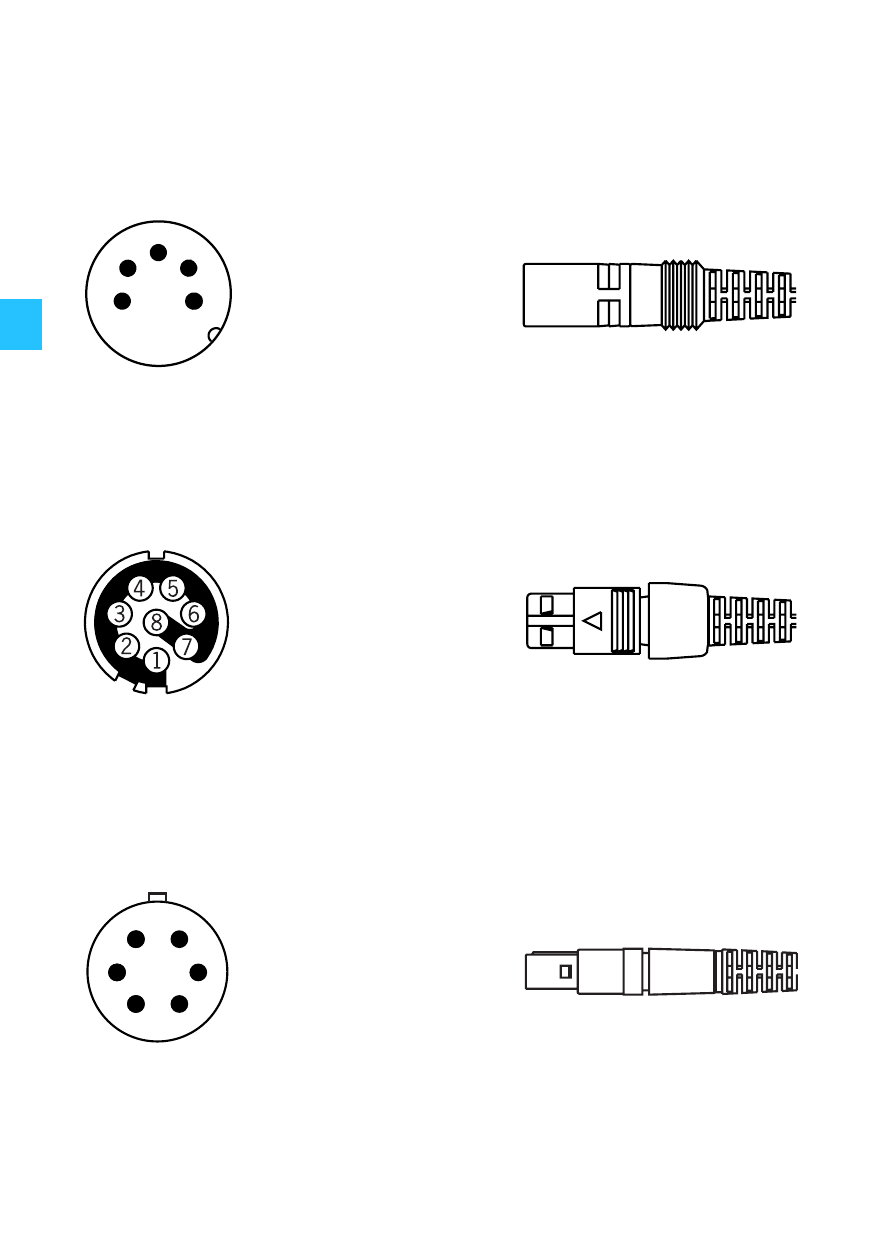

HMEC 26-CP, -V-CP, -B-CP, -BV-CP
HMEC 26-NP
HMEC 26-V-RP
Solder side
1
2
3
Audio Hi
Audio Lo / DC–
Microphone Hi
4
5
1
2
3
4
5
Microphone Lo
NoiseGard
TM
(DC+)
Solder side
1 Audio Hi
2 Audio Lo
3 not assigned
4 Microphone Lo
5 Microphone Hi
6 not assigned
7 DC–
8 NoiseGard
TM
(DC+)
Solder side
1 NoiseGard
TM
(DC+)
2 Audio Lo / DC–
3 Audio Hi left
4 Audio Hi right
5 Microphone Hi
6 Microphone Lo
1
3
2
6
4
5
