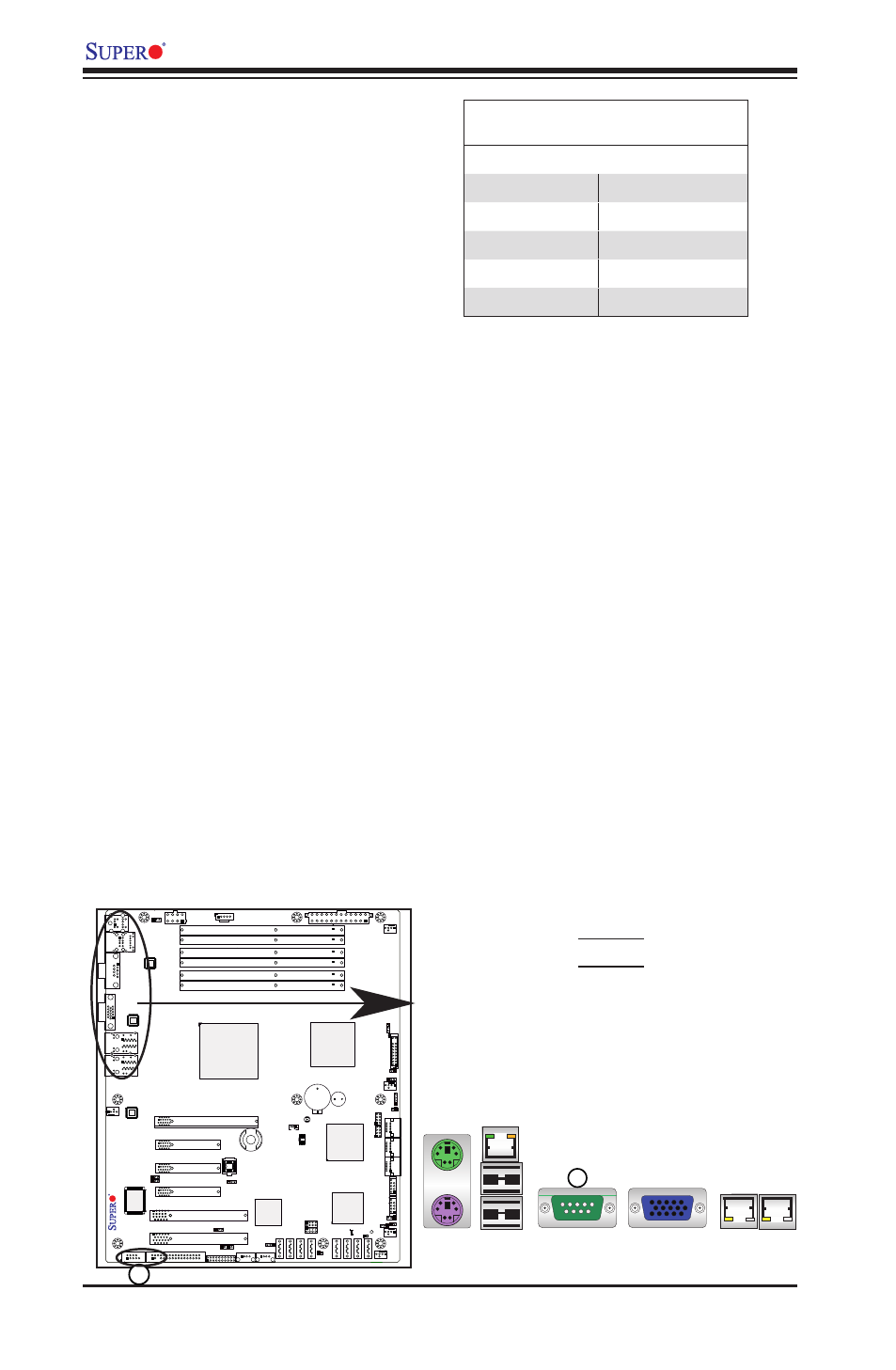

Serial Ports
A COM Port is located on the IO
Backplane and a Serial port is lo-
cated next to the Floppy Drive to
provide front access. See the table
on the right for pin definitions. Serial Port Pin Definitions
(COM1/COM2)
Pin # Definition Pin # Definition
1 CDC 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 Ground 10 NC
1. COM1
2. COM2
X8ST3-F/X8STE
