CVQ1000 4
SVAT ELECTRONICS
now you can see
INST INST ALLA ALLA TION TION

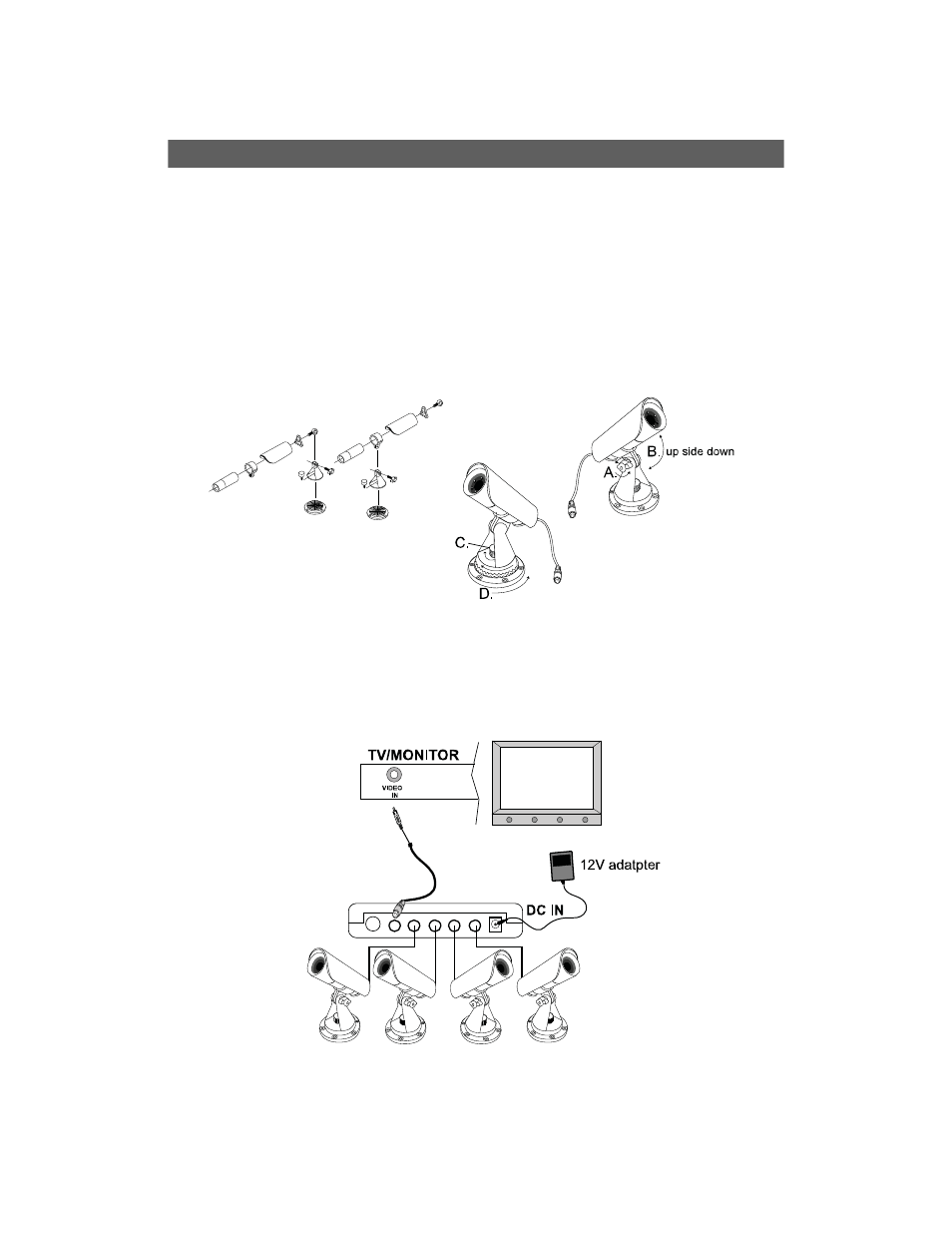

CAMERA INSTALLATION & ADJUSTMENT
1. Install or mount the camera at the desired location. Do not place camera in a location
subject to direct sunlight or bright light.
2. The cable supplied has one end with a DIN connector (Male) and the opposite end
with a DIN connector (Female). Insert the DIN plug into the cameras DIN connection.
3. The camera body could be adjusted up and down by loosening screw A and
tightening up at desired angle B.
4. The camera body can be rotated around the mounting bracket “D” by adjusting
screw “C” for any direction (360 degree).
SWITCHER INSTALLATION
1. Connect the adapter to the adapter jack (DC IN) and plug it into a wall outlet.
2. Connect the DIN plug to the output jack, connect the RCA end to your TV or monitor.
3. Connect the DIN jack to the camera DIN plug.
4. After connecting all the cameras; power on the system, the power indication LED will
light up and indicate camera number on channel display LED.
