The Skil model 2346 Cordless Screwdriver has a
magnetic bit holder that accepts any 1/4" hex bit.
The low RPM capability of this model is not a
deficiency. On the contrary, low speed means
high torque and high torque is a definite plus for
efficient driving. The low speed also provides
more control to prevent stripout of the screw and
damage to the work surface.

TRIGGER "ON-OFF" SWITCH

TO TURN THE TOOL "ON" squeeze the trigger
switch. TO TURN THE TOOL "OFF", release the
trigger switch, which is spring loaded and will
return to the "OFF" position automatically (Fig.1).

FORWARD/REVERSING LEVER &

TRIGGER LOCK

After tool use, lock trigger in
“OFF” position to help

prevent accidental starts and accidental discharge.

Your tool is equipped with a forward/
reversing lever and trigger lock located above
the trigger (Fig. 1). This lever was designed for
changing rotation of the bit, and for locking the
trigger in an “OFF” position.

FORWARD/REVERSE INDICATOR LIGHTS

Your tool is equipped with lights which
indicate the rotation of the bit.

For forward rotation, (with bit pointed away from
you) move the lever to the far left and a green
indicator light depicting a forward arrow will light up.

Model number

2346

Voltage rating

3.6 V

No load speed

n0 200/min

Charge time

3-5 hr

Collet capacity

1/4"

Drilling Wood

3/32" (2 mm)

Screw Sizes

3/16" (5 mm)

OPERATING INSTRUCTIONS

WARNING

MAGNETIC BIT

HOLDER

BIT

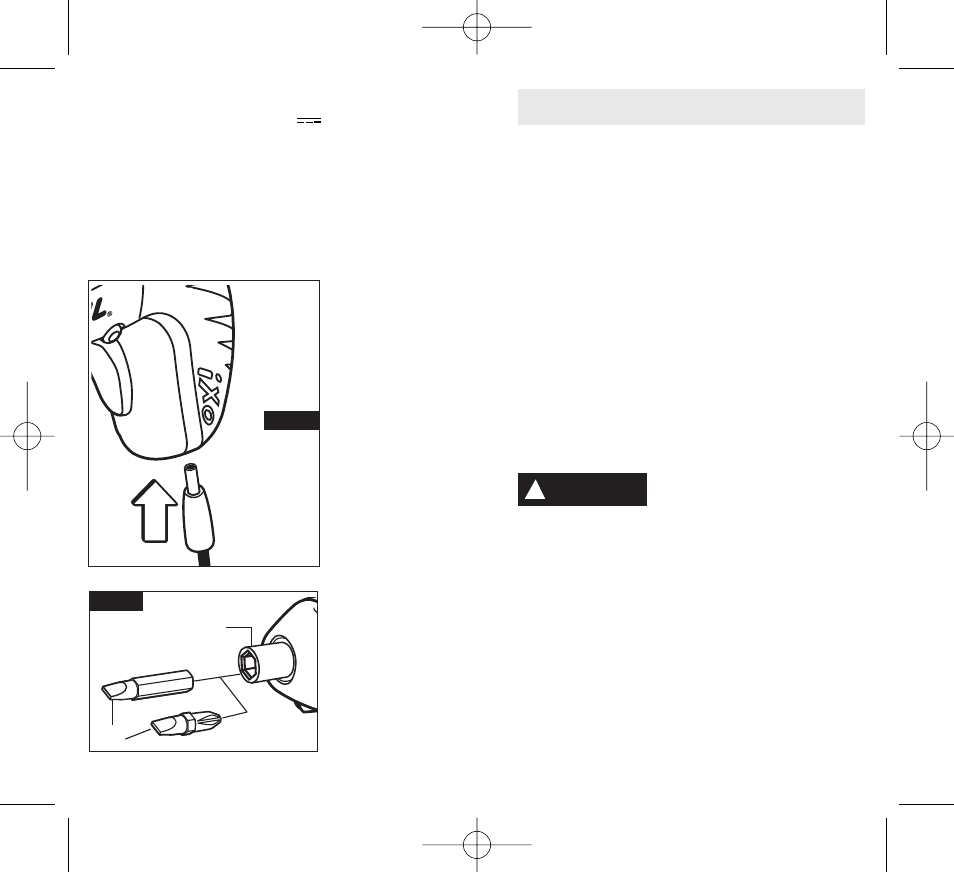

FIG. 2

FIG. 3
