Service
NO USER SERVICEABLE
PARTS INSIDE. Preventive
maintenance performed by unauthorized
personnel may result in misplacing of
internal wires and components which could
cause serious hazard.
TOOL LUBRICATION
Your Skil tool has been properly lubricated
and is ready for use.
D.C. MOTORS
The motor in your tool has been engineered for many
hours of dependable service. To maintain peak
efficiency of the motor, we recommend it be examined
INSERTING BITS
Your tool is equipped with an magnetic bit
holder. Simply push the bit into the bit holder as
far as it will go (Fig. 3).

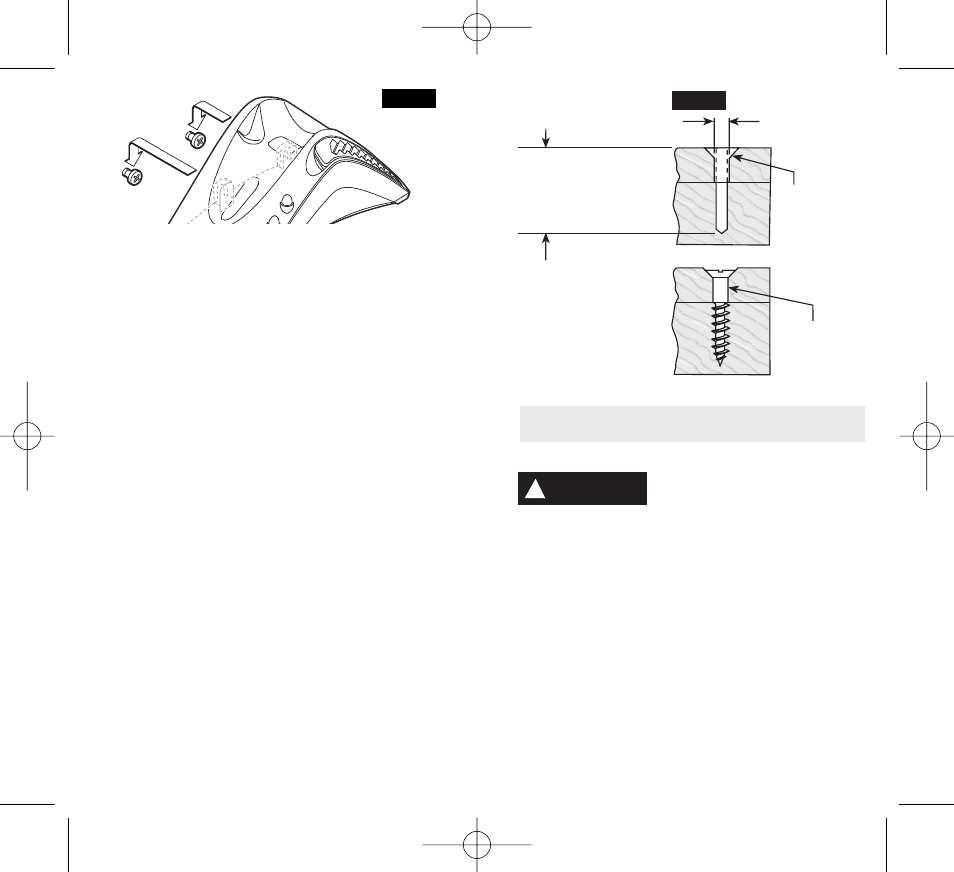

FASTENING WITH SCREWS
The procedure shown in figure. 5 will enable
you to fasten materials together with your
Cordless Screwdriver without stripping,
splitting, or separating the material.
First, clamp the pieces together and drill the
first hole 2/3 the diameter of the screw. If the
material is soft, drill only 2/3 the proper length.
If it is hard, drill the entire length.
Second, unclamp the pieces and drill the
second hole the same diameter as the screw
shank in the first or top piece of wood.
Third, if a flat head screw is used, countersink
the hole to make the screw flush with the
surface. Then, simply apply even pressure when
driving the screw. The screw shank clearance
hole in the first piece allows the screw head to
pull the pieces tightly together.
20 21
FIG. 4
2. Drill same
diameter as
screw shank.
3. Countersink
same
diameter
as screw
head.
1. Drill 2/3 diameter and
2/3 of screw length for
soft materials, full
length for hard
materials.
Screw
Apply a slight
even pressure
when driving
screws.
FASTENING WITH
SCREWS
MAINTENANCE
! WARNING
FIG. 5
