Connecting the drive – Sony CDU711 User Manual
Page 16
16

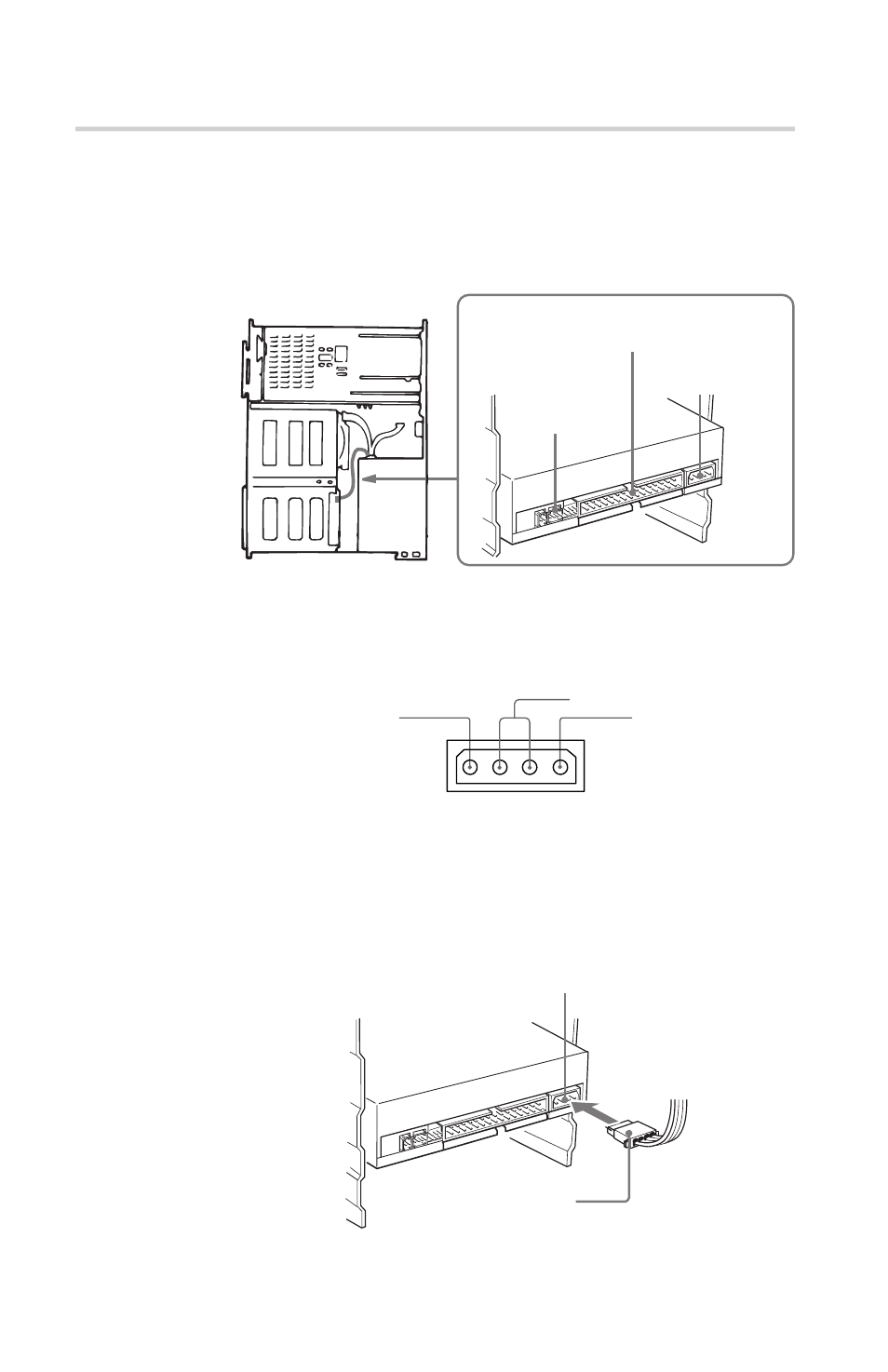

Connecting the Drive
Connect the drive to the computer with the f
ollo wing connector
s:
• DC INPUT connector
• AUDIO OUT connector (if you plan to connect audio equipment)
• INTERFACE CONNECTOR.
■
DC INPUT connector
The pin assignment is as follows.
After matching the beveled edges, insert the plug of the power
supply cable to the DC INPUT connector and push it firmly in place.
Caution: Improper connection may damage the drive and void the
warranty .
Installing the Drive Unit into the Computer
INTERFACE CONNECTOR
DC INPUT connector
AUDIO OUT
connector
+5 V DC
+12 V DC
GND
DC INPUT connector
Power supply cable
(4-pin connection cable)
