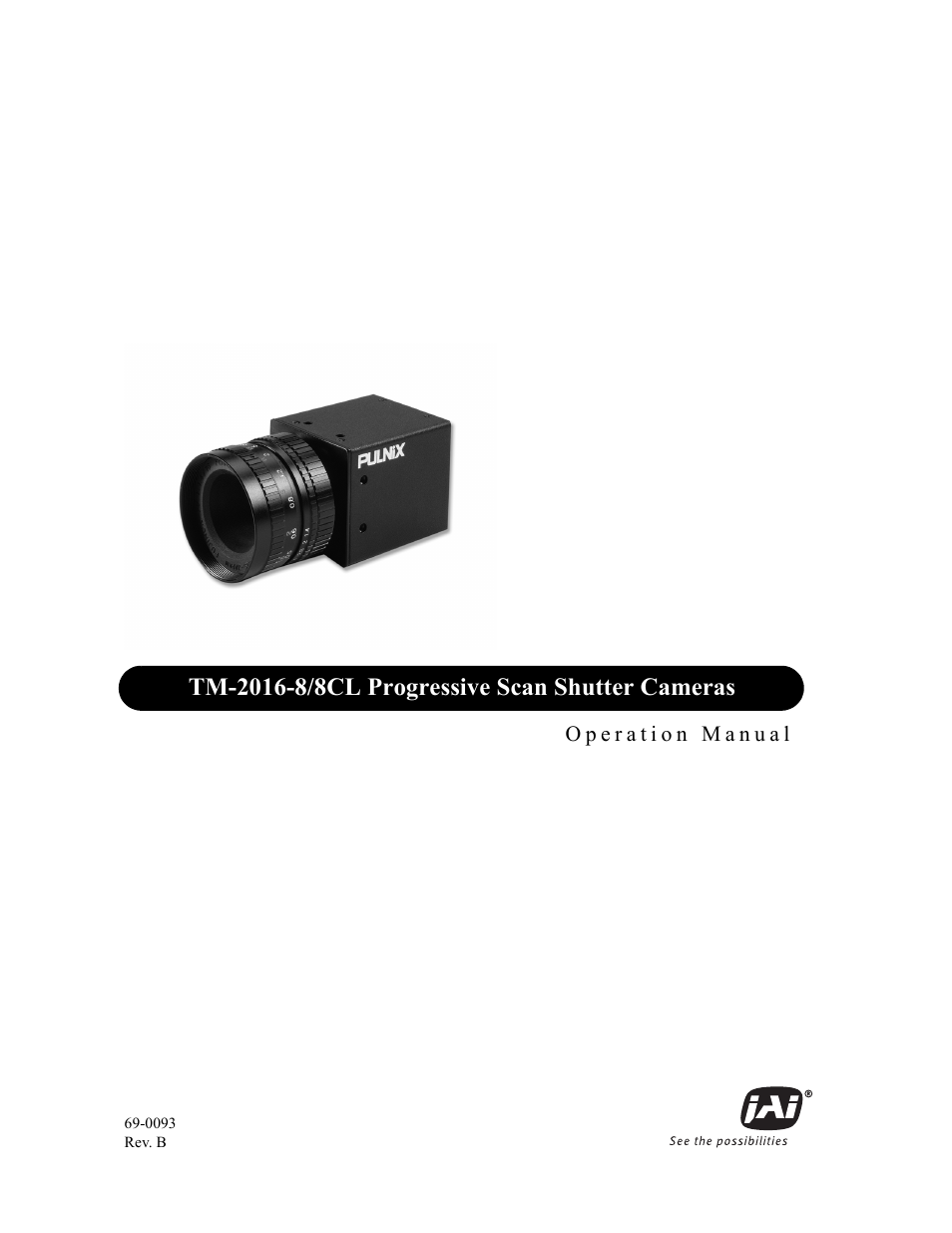

JAI TM-2016-8/8CL User Manual
JAI Cameras
Table of contents
Document Outline
- Notice
- Warranty
- Certifications
- WARNING
- Table of Contents
- List of Figures
- List of Tables
- 1 Introduction
- 2 Installation
- 2.1 Getting Started
- 2.2 Camera Setup
- 2.2.1 Heat Dissipation
- 2.2.2 Connector Pin Configurations
- 2.2.3 Shutter Speed Control Dial (TM-2016-8 only)
- 2.2.4 RS-232 Communication Cable (TM-2016-8 only)
- 2.2.5 Digital Output Cable (TM-2016-8 only)
- 2.2.6 Camera Link Cable (TM-2016-8CL only)
- 2.2.7 Power Supplies and Power Cable Setup
- 2.2.7 (a) Power Supplies
- 2.2.7 (b) JAI, Inc. Power Cables
- 2.2.7 (c) “K” Series Power Supplies
- 1. Attach the 110V line cord to the two terminals marked “AC.” Do not plug the cord into a 110V AC socket until you have completed steps 1 through 3.
- 2. Attach the Gray and Yellow leads of the power cable to the Ground and 12V DC terminals, respectively.
- 3. Replace the plastic terminal guard on the power supply.
- 2.2.7 (d) Building Your Own Power Cable
- 2.2.7 (e) Attaching the Power Cable to the Connector
- 2.2.8 Attaching the Analog Video Output
- 2.2.9 Attaching the Camera Lens
- 3 Operation
- 4 Troubleshooting
- 5 Appendix
- 5.1 Specifications
- TM-2016-8 and TM-2016-8CL
- 1”, 7.4µm x 7.4µm progressive scan interline transfer CCD
- 1920 (H) x 1080 (V)
- 15.90 (H) mm x 8.61 (V) mm
- 7.4µm x 7.4µm
- 1920 x 1080 lines at 8Hz,
- 1920 x 540 at 16Hz (two-row binning)
- Internal/external auto switch
- HD/VD, 4.0 Vp-p impedance 4.7K½
- HD=9.09kHz±5%
- VD=8Hz±5%, non-interlace
- 20.000 MHz
- Digital: 1920 (H) x 1080 (V), Analog; over 1200 TV lines (H) x 800 TV lines (V)
- 50dB min. (AGC: off)
- 2.0 lux f=1.4
- Sensitivity: 13µV/ e-
- Analog: 1.0 Vp-p composite video, 75½
- Digital output: 8-bit RS-644 output (A/D input from CCD: 10-bit)
- Camera Link (TM-2016-8CL only)
- OFF
- Programmable LUT (1.0 std.)
- C-mount (use 1” format lenses)
- (Adjustable back focus: optional)
- 12V DC, 440mA (current measured at 25°)
- -10°C to 45°C
- 7 Grms (10Hz to 2000Hz)
- 70G, 10-11msec
- 44mm x 44mm 64mm (1.75” x 1.75” x 2.50”)
- 136 grams, 4.8 oz. (141gr, 5.0 oz.: CL version)
- RS-644 output, adjustable back-focus front end
- 30DG-02 digital output cable,
- CS-232E serial communication kit (TM-2016-8),
- 26CL-02-26 Camera Link output cable (TM-2016-8CL)
- 12P-02S
- PD-12UU series (includes power connector)
