TM-2016-8 and TM-2016-8CL Progressive Scan Shutter Camera
Installation
2.2.2 (e) Analog Output Connector
The TM-2016-8 has a BNC connector on the rear panel to output analog
video data. See Section 2.2.4 on page 10 for additional information on analog
video output.

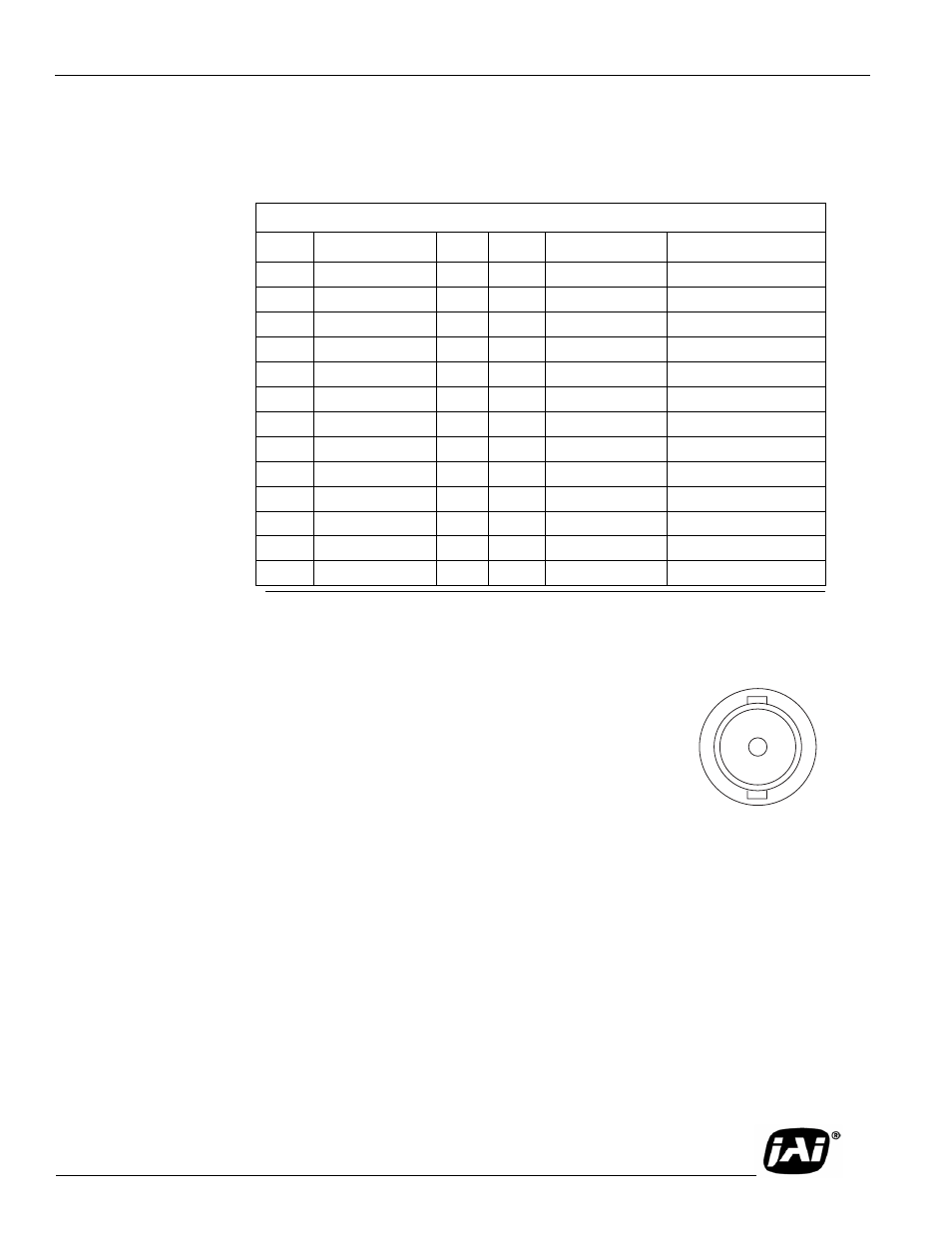

TABLE 4.
Connector and Pinout Configurations
Camera Link Connector MDR 26-pin Connector 10226-6212VC
Pin #
Description
I/O
Pin #
Description
I/O
1
GND
14
GND
(Shield)
2
Tx OUT 0-
Out
15
Tx OUT 0+
Out
3
Tx OUT 1-
Out
16
Tx OUT 1+
Out
4
Tx OUT 2-
Out
17
Tx OUT 2+
Out
5
Tx CLK OUT -
Out
18
Tx CLK OUT+
Out
6
Tx OUT 3-
Out
19
Tx OUT 3+
Out
7
SerTC+
In
20
SerTC-
In (LVDS or RS-232
a
a. RS-232 optional (custom camera)
8
SerTo FG
Out
21
SerToFG+
Out
9
VINIT-
In
22
VINIT+
In
10
INTEG+
In
23
INTEG-
In
11
N/C
24
N/C
12
N/C
25
N/C
13
GND
26
GND
