TM-2016-8 and TM-2016-8CL Progressive Scan Shutter Camera
Installation
•
Make sure the flow of heat from the camera case to the bracket is not blocked by a non-conductive
material like plastic.
•
Make sure the camera has enough open space around it to facilitate the free flow of air.
Please contact JAI, Inc. at (800) 445-5444 or send an email to [email protected] if you have any
questions.

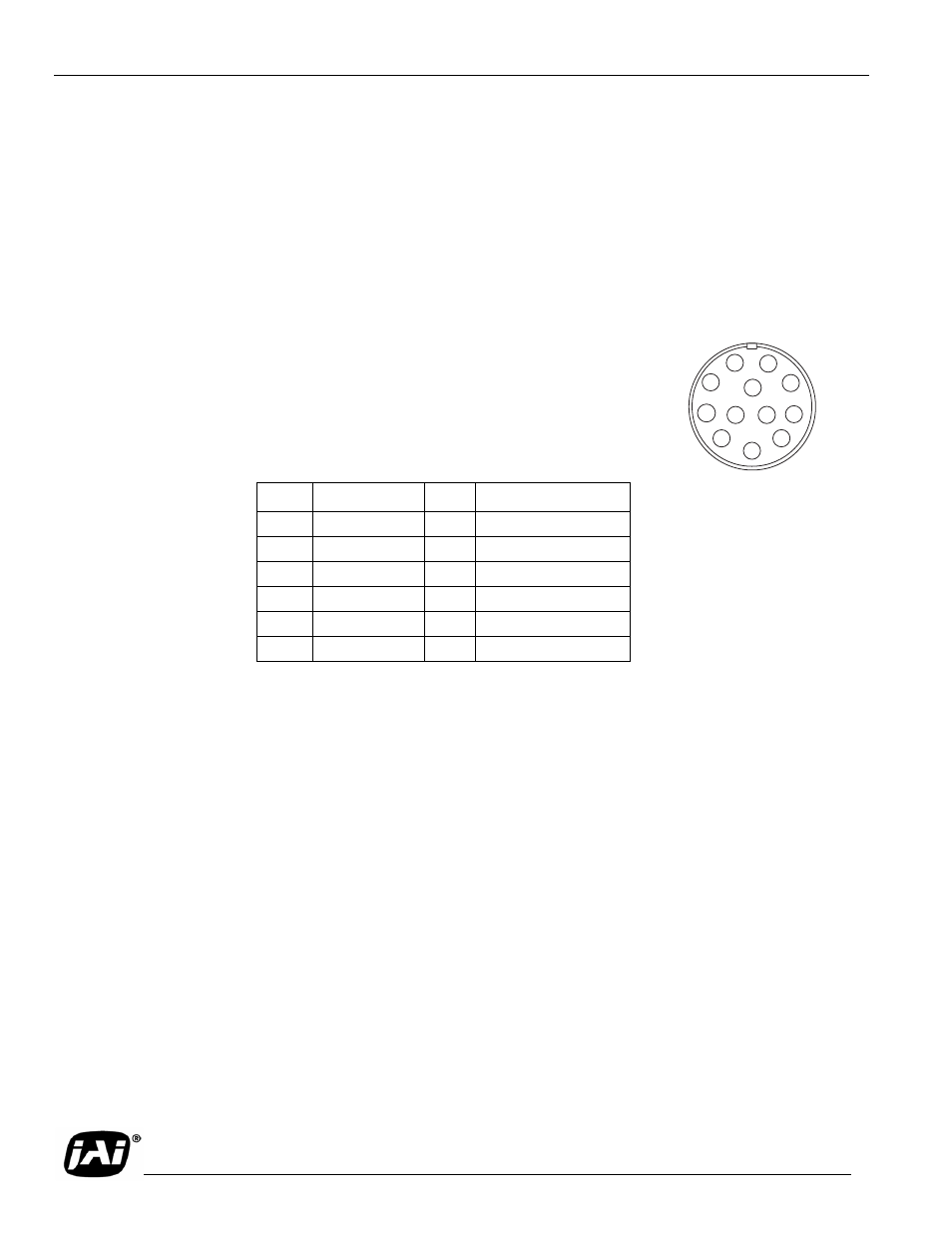

2.2.2 Connector Pin Configurations
2.2.2 (a) 12-Pin Connector (TM-2016-8)
The TM-2016-8 has a 12-pin Hirose connector for power input, serial
communication, and signal integration. Pin #1 is Ground and Pin #2 is
+12V DC. Other pins handle a number of input and output functions, as
shown in Table 1 below.
TABLE 1.
12-Pin Connector (TM-2016-8)
Pin
Description
Pin
Description
1
GND (power)
7
VD In
2
+12V DC
8
N/C
3
GND (analog)
9
HD In
4
Video Out
10
RXD (RS-232)
5
GND (digital)
11
Integration Control
6
VINIT In
12
TXD (RS-232)
1
2
3
4
5
6
9
8
7
11
12
10
