EN
41

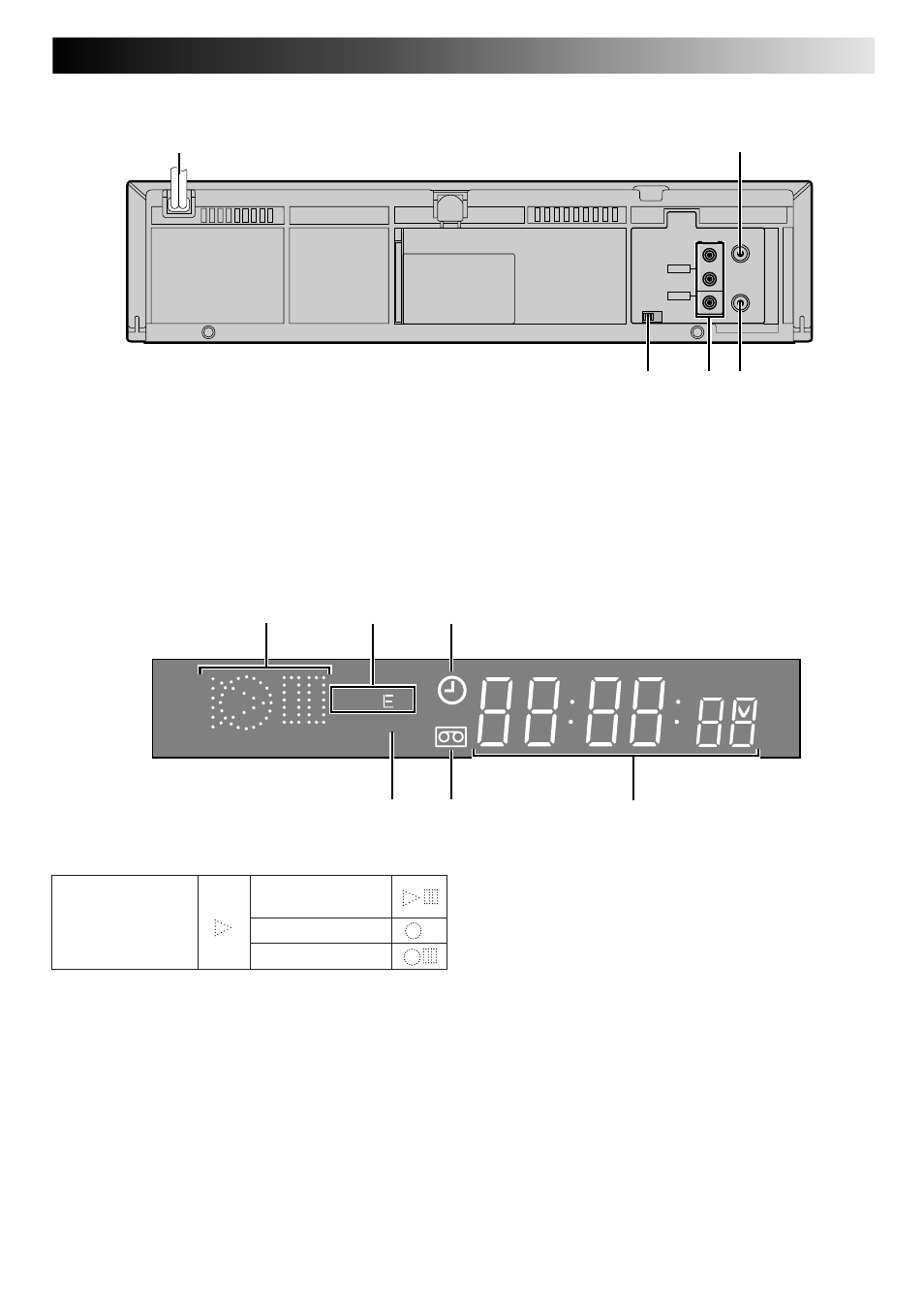

REAR VIEW
ANT. IN
RF OUT
CH3 CH4
1
5 3
2
4
OUT
AUDIO
VIDEO
1 Power Cord (
੬
pg. 6)
2 ANT. IN Connector (
੬
pg. 6)
3 Channel 3/4 Switch (
੬
pg. 6)
4 VIDEO/AUDIO Output Connectors (
੬
pg. 33)
5 RF OUT Connector (
੬
pg. 6)
2 Tape Speed Indicators (
੬
pg. 17)
3 Timer Mode Indicator (
੬
pg. 29)
4 VCR Mode Indicator (
੬
pg. 26)
5 “Cassette Loaded” Mark
6 Channel Display ["F-1" for AUX mode]
Counter Display (
੬
pg. 8)
Clock Display (
੬
pg. 8)
1 Symbolic Mode Indicators
STILL:
SLOW:
RECORD:
RECORD PAUSE:
PLAY:
FF/REW VARIABLE
SEARCH:
FRONT DISPLAY PANEL
SP P
VCR
4 5 6
1 2 3
