5.

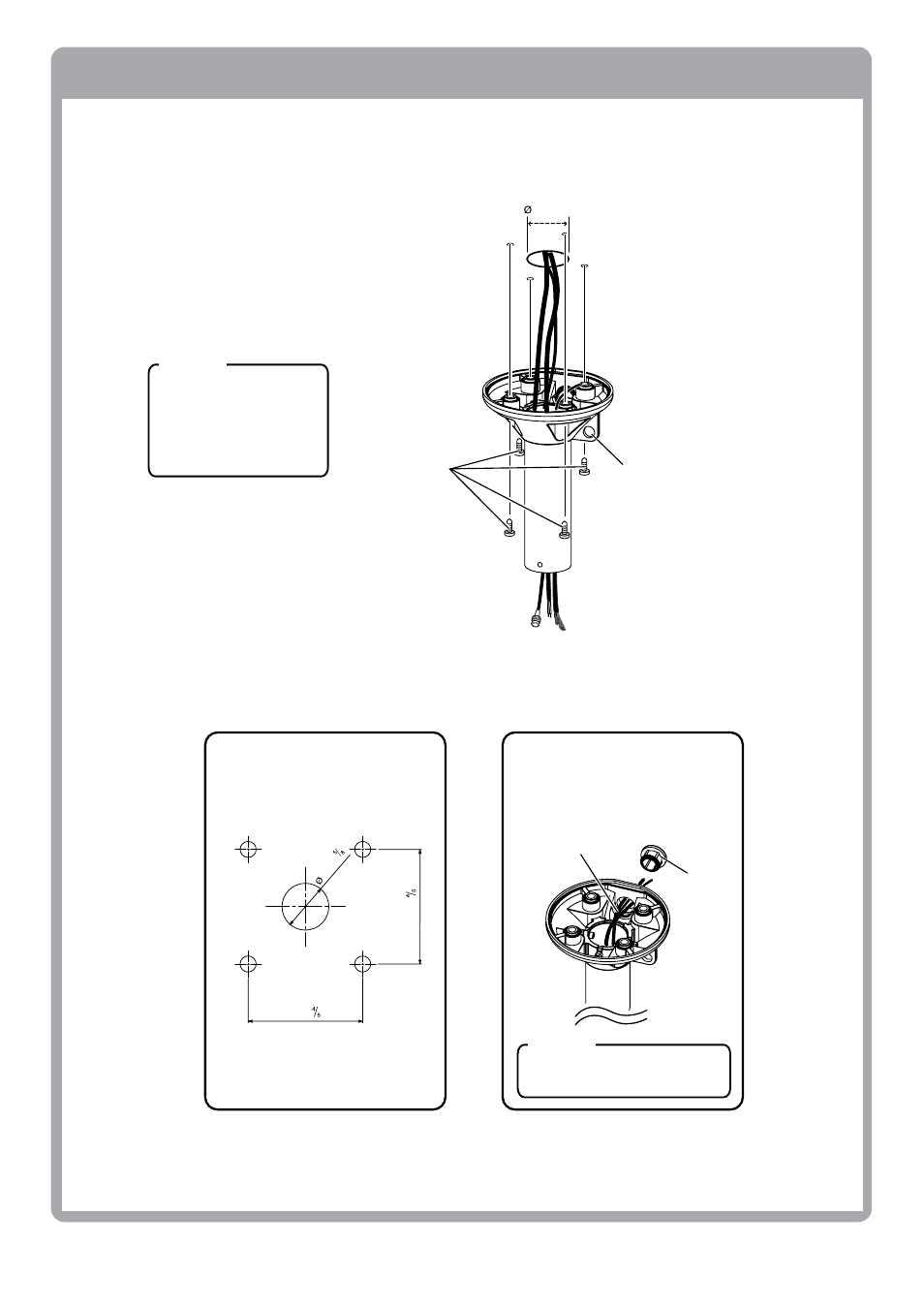

Make a hole in the ceiling.
6.
Thread the cables on
the ceiling.
7.
Mount WB-S684U on
the ceiling. (4 locations)
Fall prevention wire hole
Bolts (M6~M8)
or
Anchor Bolts (M8)
Making a hole in the ceiling When a hole cannot be made
in the ceiling
Remove the cap and thread the
cables.
(Thread the coaxial cable first.)
Cap
Cables
40 mm
• Use waterproof material to
seal around the mounting
surface of WB-S684U.
• Use GE silicon or its
equivalents as the sealing
material.
CAUTION
72 (2- )
72 (2-
)
Use waterproof material to seal
around the cap.
CAUTION
40 (1-
)
