Press
Press
Press
Release
lever Release
lever
Release
lever
2.
3.
2.
4.
Rotate in
anticlockwise
direction.
Screw
driver
Screw driver
Fixing screw (x3)
Stopper
release lever
Stopper
Push
upwards
Always support the camera with the
palm of your hand when performing
this operation.
CAUTION
3.
Rotate the fixing
screws (x3) in
anticlockwise direction.
1.
Remove the ceiling
attachment fitting and
the cable.
Remove in the reverse
procedure of mounting.
Remove the fall
prevention wire.
Remove the camera
from WB-S685U.
Press the release lever and
remove.
1.
Remove the ceiling panel.
Remove WB-S685U from the ceiling.
Remove the stopper.
Push up the stopper release
lever with a screw driver.
Be sure to support WB-S685U when
performing this operation.
CAUTION

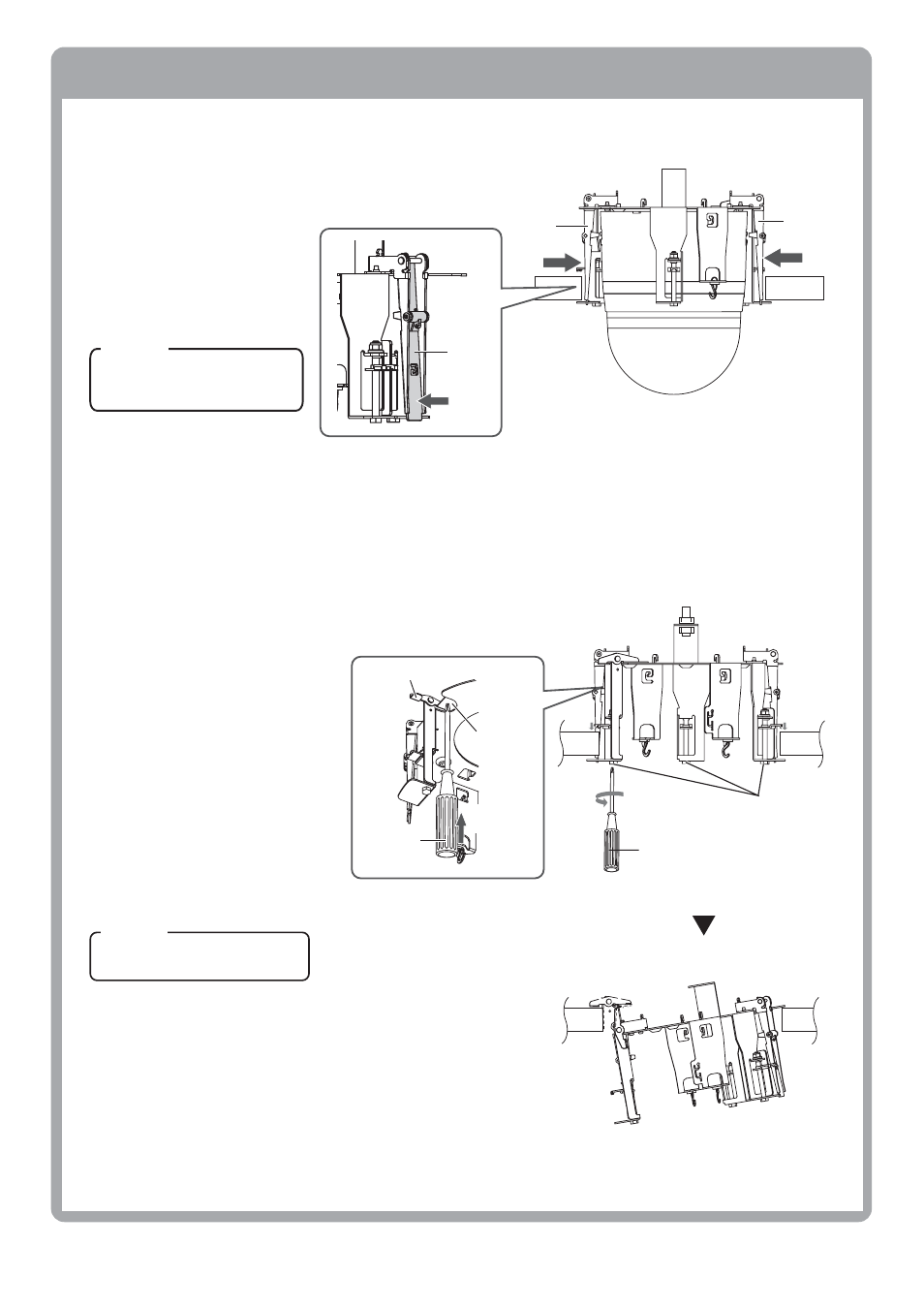

Dismantling the camera
Dismantling WB-S685U
3.
2.
4.
2. 2.
