DISPLAY

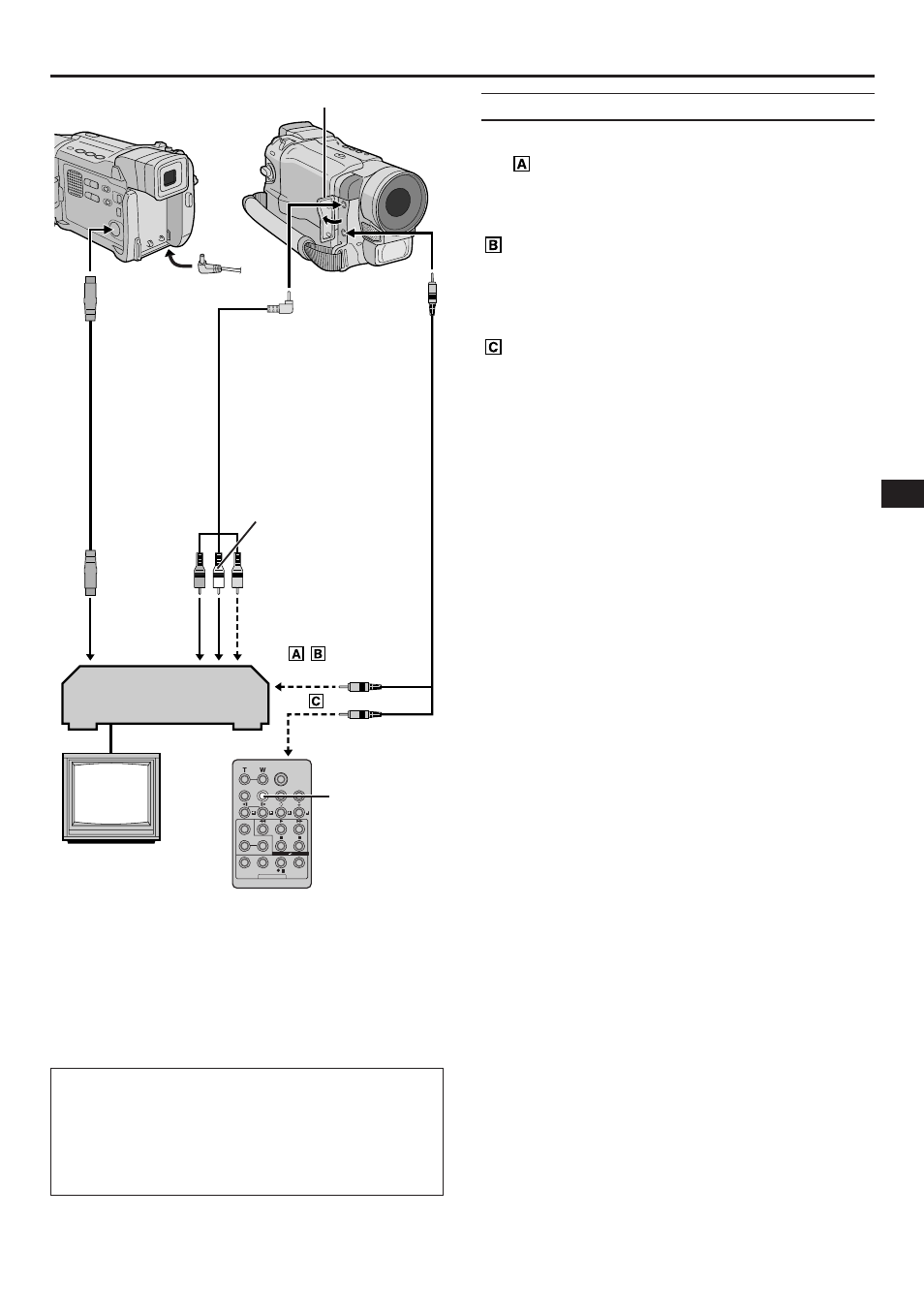

MAKE CONNECTIONS

Also refer to pg. 22 and 23.

A JVC VCR equipped with a remote

pause connector . . .

..... connect the editing cable to the Remote PAUSE

connector.

A JVC VCR not equipped with a remote

pause connector but equipped with an
R.A.EDIT connector . . .

..... connect the editing cable to the R.A.EDIT

connector.

A VCR other than above . . .

..... connect the editing cable to the remote control’s

PAUSE IN connector.

Insert a recorded tape into the camcorder. Set the

VIDEO/MEMORY Switch to “VIDEO” (GR-DVL1020/
DVL820/DVL520 only), then set the Power Switch to
“PLAY” while pressing down the Lock Button located
on the switch.

Turn the VCR power on, insert a recordable tape

and engage the AUX mode (refer to the VCR’s
instructions).

NOTES:

●

Before Random Assemble Editing, make sure the
indications do not appear on the TV monitor. If they do,
they will be recorded onto the new tape.

To choose whether or not the following displays
appear on the connected TV . . .
• Date/Time

..... set “DATE/TIME” to “AUTO”, “ON” or “OFF” in the

Menu Screen (

੬

pg. 50).

Or, press DISPLAY on the remote control
(provided) to turn on/off the date indication.

• Time Code

..... set “TIME CODE” to “ON” or “OFF” in the Menu

Screen (

੬

pg. 50).

• Playback Sound Mode, Tape Speed And Tape Running

Displays

..... set “ON SCREEN” to “LCD” or “LCD/TV” in the Menu

Screen (

੬

pg. 50).

●

When editing on a VCR equipped with a DV input
connector, an optional DV cable can be connected
instead of an S-Video cable and audio/video cable.

Connect when an S-Video cable is not used.

** When connecting cables, open this cover.
*** JLIP : GR-DVL320

EDIT : GR-DVL1020/DVL820/DVL520

For GR-DVL320 Owners:

ATTENTION FOR EDITING CABLE

Make sure you connect the end with the core
filter (plug which has 3 rings around the pin) to
the camcorder.

To Remote

PAUSE or R.A.EDIT

VCR

White to
AUDIO L IN

Red to
AUDIO R IN

To
S-VIDEO IN

To PAUSE IN

Editing
cable
(provided)

S-Video
cable
(optional)

Audio/Video
cable
(provided)

Yellow to
VIDEO IN*

Connector cover**

To AV

To EDIT***

or JLIP***

To S-VIDEO
