50
EN
RE N E ON SC LCD / TV
U A O T I ME T DATE /
T I ME CODE
–
–
–
F F O
N RETUR
BEEP MELODY
N O TAL LY
–
–
I D U N M ER B – 6 0
DEMO MODE – N O
– N O S I D L E ED
N RETUR
CAM E R SET
M D O E SOUND
M D O E 12B I T
RO SYNCH
ODE REC M
COPY
STEREO –
SOUND 1
SP
OF F
–
–
–
–
OF F –
N RETUR
O . O
M SYSTE
AY D I SPL
V I DEO SOUND MODE
MODE
MODE
12B I T
NPUT S / AV I
SYNC RO H
REC
END
COPY
NPUT S / AV I

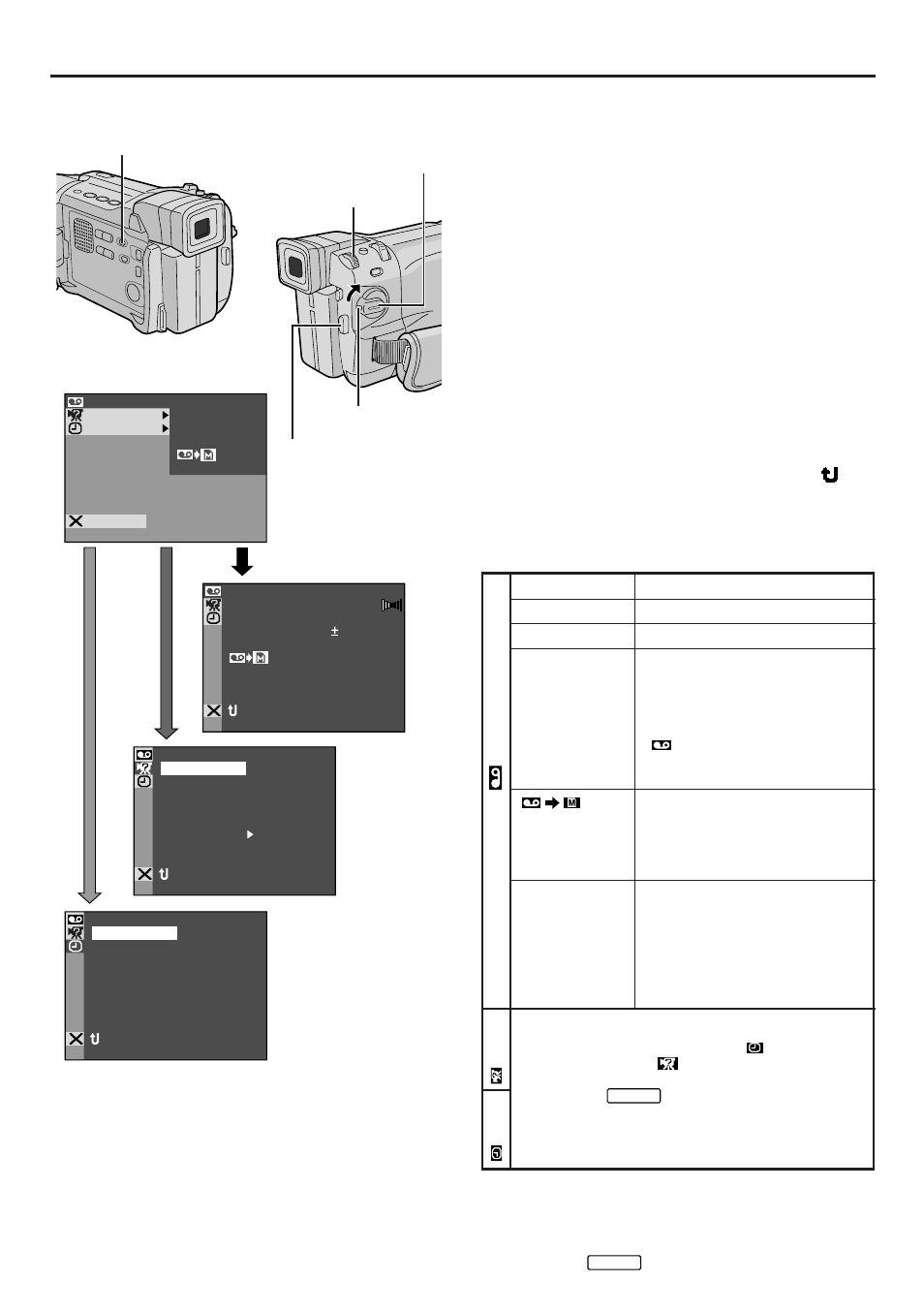

For Playback Menu
The following procedure applies to all except Synchro
Comp (
੬
pg. 62).
1
Set the VIDEO/MEMORY Switch to “VIDEO” (GR-
DVL1020/DVL820/DVL520 only), then set the Power
Switch to “PLAY” while pressing down the Lock
Button located on the switch.
2
Press the MENU/BRIGHT wheel in. The Menu
Screen appears.
3
Rotate the MENU/BRIGHT wheel to select the
desired function menu, and press it. The selected
function menu appears.
4
Rotate the MENU/BRIGHT wheel to select the
desired function, and press it to display the Sub Menu.
5
Rotate the MENU/BRIGHT wheel to select the
desired parameter and press it. Selection is complete.
6
Rotate the MENU/BRIGHT wheel to select “
RETURN” and press it twice to close the Menu Screen.
Display
Power Switch
MENU/BRIGHT Wheel
Recording
Start/Stop Button
NOTES:
● The date indication can also be turned on/off by
pressing DISPLAY on the remote control (provided).
●
“REC MODE” can be set when the Power Switch is set
to “PLAY” or “
MANUAL ” (
੬
pg. 13, 47).
Menu Screen Explanations
੬
pg. 51.
੬
pg. 51.
੬
pg. 62.
Allows you to set the tape
recording mode (SP or LP)
depending on your preference
(
੬
pg. 13). It is recommended
you use “REC MODE” in the
“
VIDEO” Menu when using
this camcorder as a recorder
during dubbing (
੬
pg. 53).
ON: Enables dubbing of images
recorded on a tape to a memory
card (
੬
pg. 32).
OFF: Enables snapshots to be
taken during tape playback.
ON: Enables audio/video signal
input from the AV and S-VIDEO
connectors (
੬
pg. 52).
OFF: Enables audio/video signal
output to a TV, VCR, etc. via the
AV and S-VIDEO connectors
(
੬
pg. 22, 52).
SOUND MODE
12BIT MODE
SYNCHRO
REC MODE
COPY
(GR-DVL1020/
DVL820/DVL520
only)
S/AV INPUT
(GR-DVL1020/
DVL820 only)
SYSTEM
DISPLA
Y
Each setting is linked with “
DISPLAY” or “
SYSTEM”, which
appears when the Power Switch is
set to “
MANUAL ” (
੬
pg. 48, 49).
The parameters are the same as in
the description on pg. 48, 49.
VIDE
O
USING MENUS FOR DETAILED ADJUSTMENT
(cont.)
Lock Button
* Actual menus differ by model and may appear
differently from these illustrations. Some menu items
may be unavailable on your model.
VIDEO/MEMORY Switch
(GR-DVL1020/DVL820/DVL520 only; open
the LCD monitor to access this switch.)
