Names of parts and controls
6

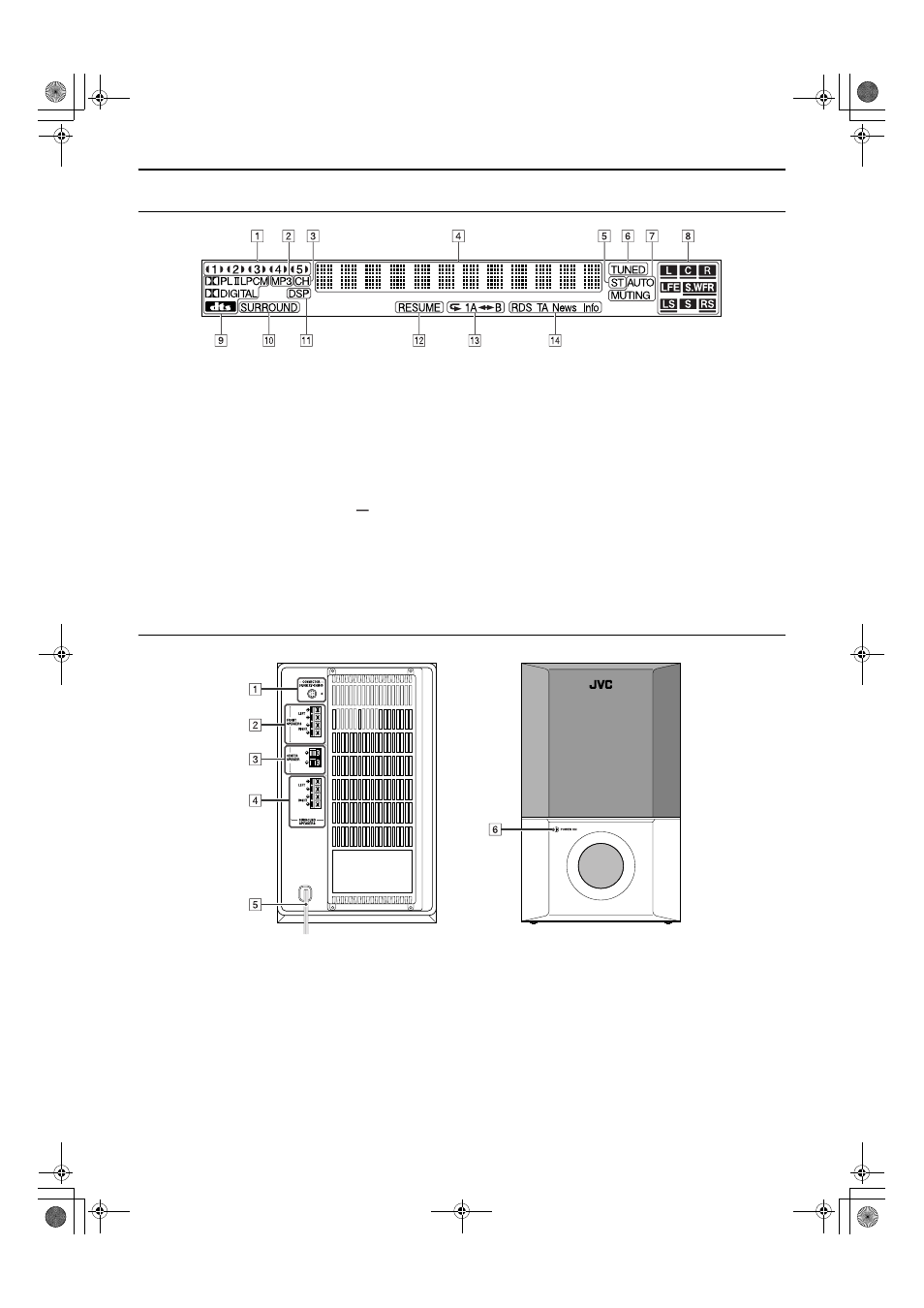

Display window (center unit)
A Disc indicators A pg. 23
B MP3 indicator A pg. 22
C Channel indicator (CH) A pg. 26
D Main display A pg. 22
E Stereo indicator (ST) A pg. 25
F Tuning indicator (TUNED) A pg. 25
G Auto muting indicator (AUTO MUTING) A pg. 26
H • Source signal indicators (abcdghi)
A pg. 32
• Subwoofer indicator (f) A pg. 32
• Sound reproducing speaker indicator ( ) A pg. 32
I • Dolby Pro Logic II indicator (GPLII) A pg. 31
• Linear PCM indicator (LPCM)
A pg. 32
• Digital signal format indicators A pg. 32
Dolby Digital (GDIGITAL), DTS (C)
J Surround indicator (SURROUND) A pg. 33
K DSP indicator A pg. 31 – 33
L Resume indicator (RESUME) A pg. 22
M Repeat mode indicators A pg. 46
N RDS reception mode indicators A pg. 27 – 30
RDS, TA, News, Info
Powered subwoofer
A System cord connector A pg. 10
B Front speaker terminals (FRONT SPEAKERS) A pg. 11
C Center speaker terminals (CENTER SPEAKER) A pg. 11
D Surround speaker terminals (SURROUND SPEAKERS) A pg. 11
E Power cord A pg. 13
F Power lamp (POWER ON) A pg. 17
Rear Front
