Quick Setup Connections

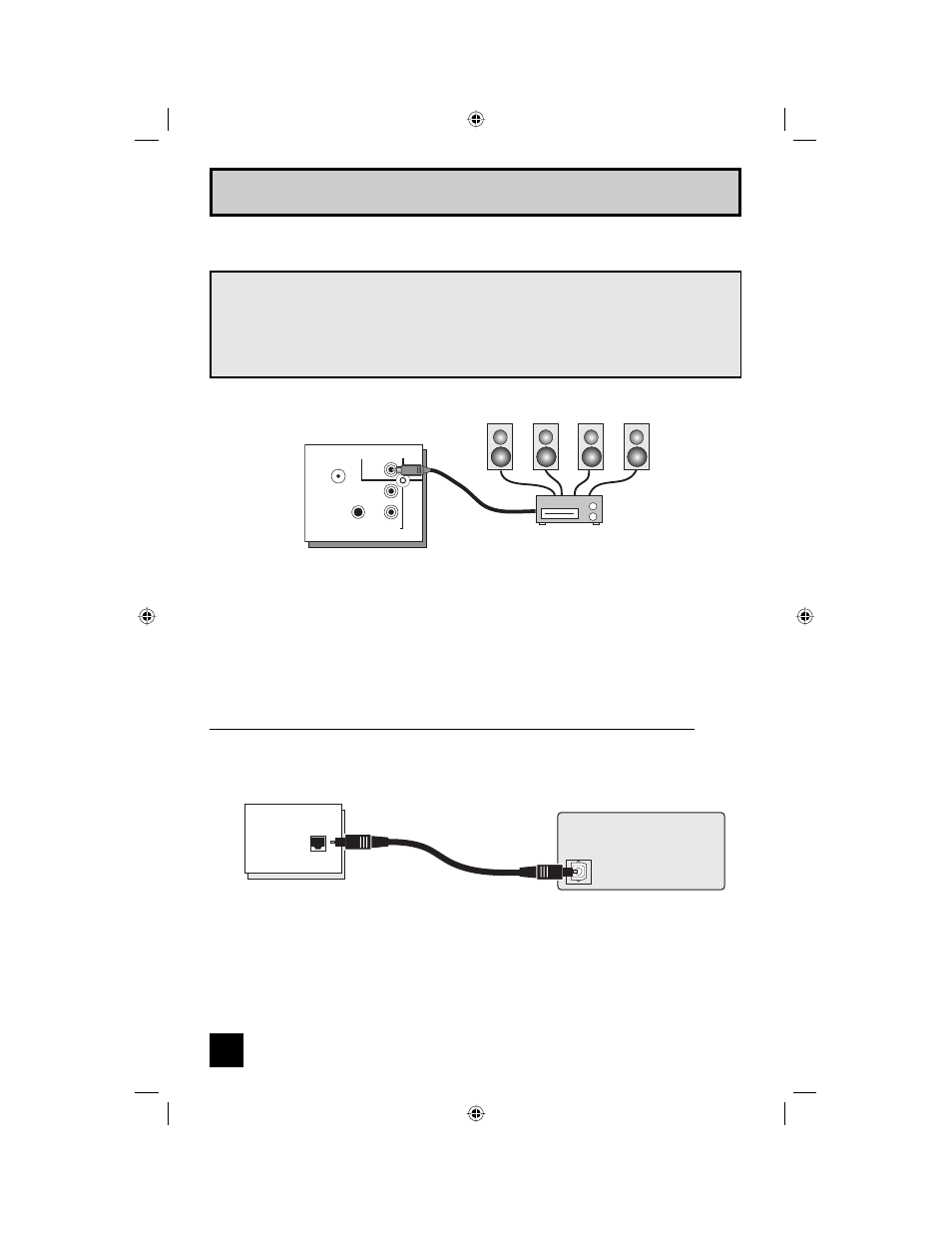

Connecting to the Surround Amplifier
CENTER
CHANNEL INPUT
75Ω (VHF/UHF)
AV COMPULINK III AUDIO OUT
R
L
Front
CENTER CHANNEL OUTPUT
TV Rear Panel
Front Surround
1) Connect the Pin cable from the TV's CENTER CHANNEL INPUT terminal to the surround
amplifier's CENTER CHANNEL OUTPUT terminal.
Note:
• Please read the benefit of this feature on page 54.
In multi-channel sound such as 5.1 channel, the speech characters are played back from the
center speaker.
A center speaker in a movie theater is set in back of the screen so it can recreate a
conversation scene in the movie more natually. By using your TV's speaker as the center
speaker, you can obtain the same sound effect as in a movie theater in you home theater
sound system.
Connecting to an amplifier using your optical output
You can connect an amplifier that has an optical digital input terminal by using an optical digital
cable from the optical output. The signal that is output can be PCM or Dolby Digital.
OPTICAL OUT
Digital Audio
Television Rear Panel
Amplifier
1) Connect the optical cable from the back of the television to the back of the amplifier.
Notes:
• This terminal can only output digital audio.
• In order to use the optical output connection, select PCM or Dolby Digital on Digital Sound in
the Digital Setup Menu. See page 72.
• Refer to your owners manual on using your amplifier.
