19

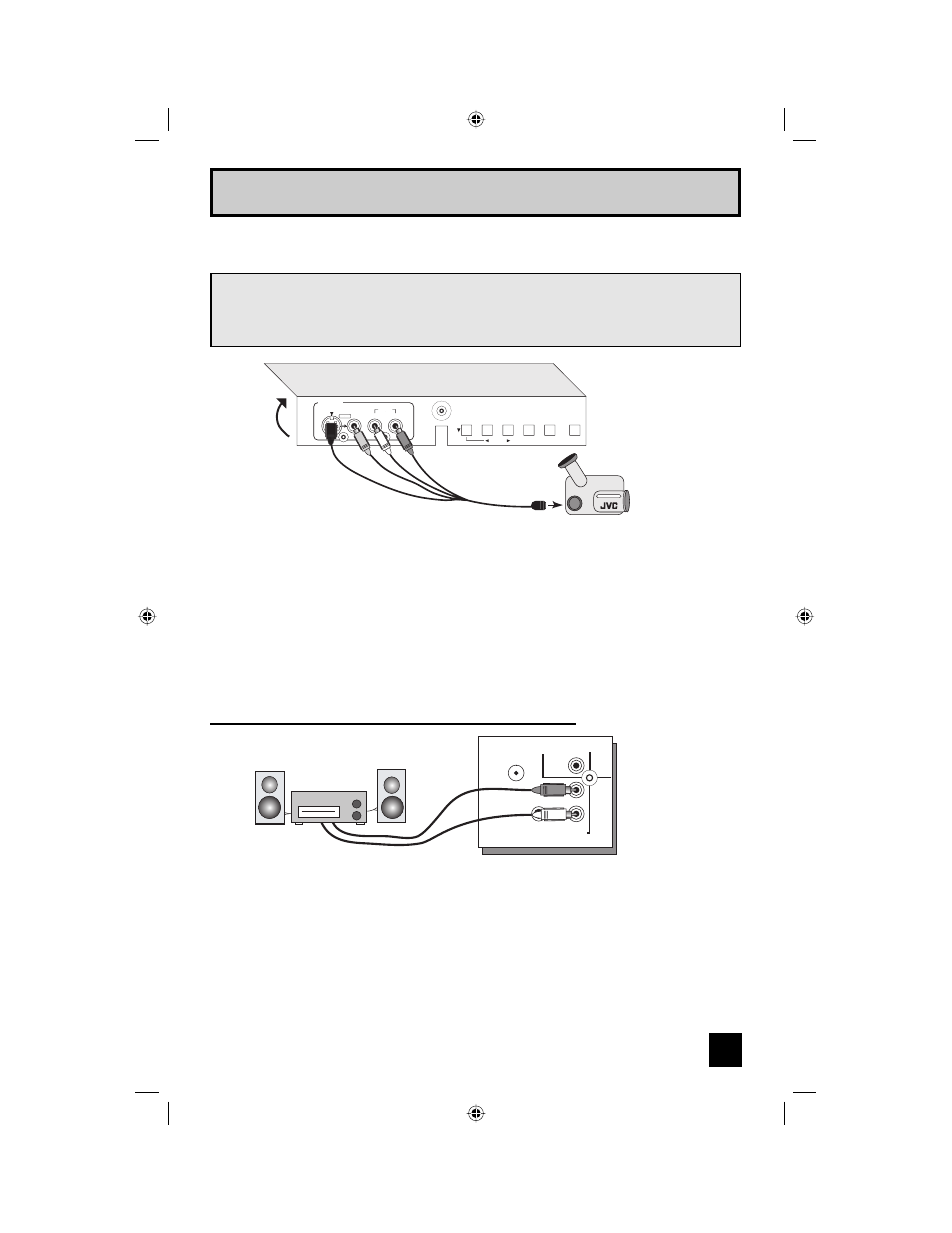

Quick Setup Connections
1) Connect a yellow composite cable from the camcorder VIDEO OUT, into the VIDEO IN on
the front of the TV, OR connect an S-Video cable from the front of the TV to the camcorder.
2) Connect a white cable from the camcorder LEFT AUDIO OUT, into the LEFT AUDIO IN on
the front of the TV.
3) Connect a red cable from the camcorder RIGHT AUDIO OUT, into the RIGHT AUDIO IN on
the front of the TV.
Note:
• If your camcorder is a mono sound model it will have only one AUDIO OUT. Connect it to the
LEFT AUDIO IN on the front of the TV.
You may connect a camcorder, game console or other equipment to your television by using
the front input jacks (Input 4) located under the front panel door. To access, pull on the door
to open it. You can also connect these using the television’s rear input jacks, using the same
instructions.
CAMCORDER
MENU CHANNEL VOLUME SUPER
FOCUS
OPERATE
– + – +
INPUT- 4
S-VIDEO VIDEO AUDIO
R L / MONO OVER
- OR -
Connecting to a Camcorder
TV Rear Panel
Speaker Speaker
Amplifier
CENTER
CHANNEL
INPUT
75Ω (VHF/UHF)
AV COMPULINK III AUDIO OUT
R
L
1) Connect a white composite cable from the LEFT AUDIO OUTPUT on the back of the TV to
the LEFT AUDIO INPUT on the amplifier.
2) Connect a red composite cable from the RIGHT AUDIO OUTPUT on the back of the TV to
the RIGHT AUDIO INPUT on the amplifier.
Notes:
• Refer to your amplifier’s manual for more information.
• You can use AUDIO OUTPUT for your home theater system.
Connecting to an External Amplifier
