15
INPUT-1 INPUT-2
COMPONENT VIDEO
Y
Pb
Pr
S-VIDEO
OVER
INPUT-1
INPUT-2
OVER INPUT-3
R L
AUDIO VIDEO
CENTER CHANNEL INPUT
75Ω (VHF/UHF)
AV COMPULINK III AUDIO OUT
R
L
VIDEO
AUDIO
L
R
TV Rear Panel
Coaxial Cable
(Attachment)
Cable or Antenna
Output
OR
VCR
Two-Way
Splitter
(Attachment)
ATSC
/DIGITAL CABLE IN
OUT
R L V
IN
OUT
IN
OUT OUT
Green
Blue
Red
DVD Player (OPTIONAL)
Y
P B
P R
OUT
AUDIO OUT
R L
IN
Coaxial Cable
(Attachment)
MONITOR
/REC OUT

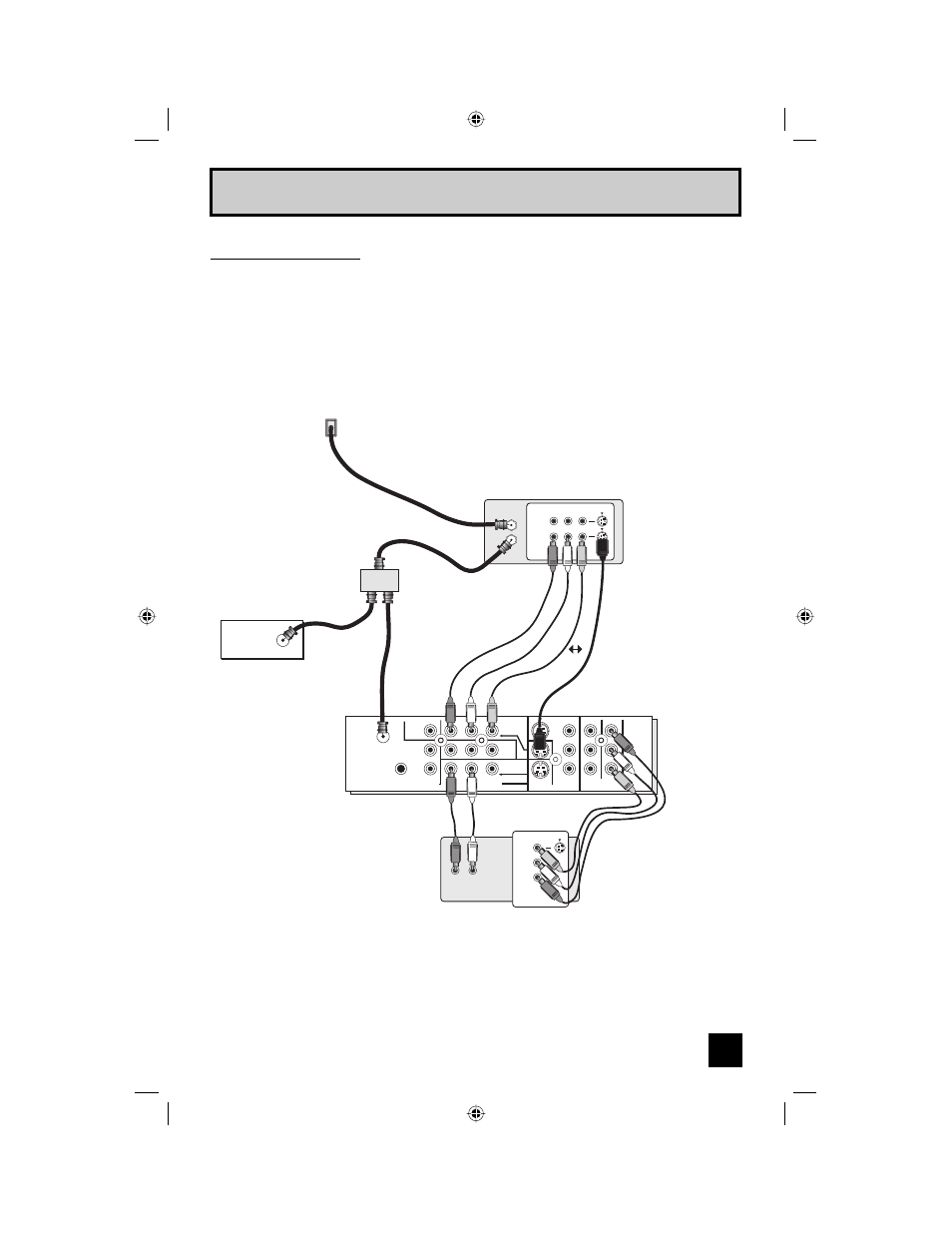

Quick Setup Connections
Notes:
• Green, blue and red are the most common colors for DVD cables. Some models may vary
colors. Please consult the user’s manual for your DVD player for more information.
• Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete
one set of connections (DVD or audio output) before starting the other to avoid accidentally
switching the cables.
• You may also connect the DVD player to Input 1.
VCR Connection
Note:
• If this connection setup does not work for you, try the connection setup on page 16.
Diagram #1
