8

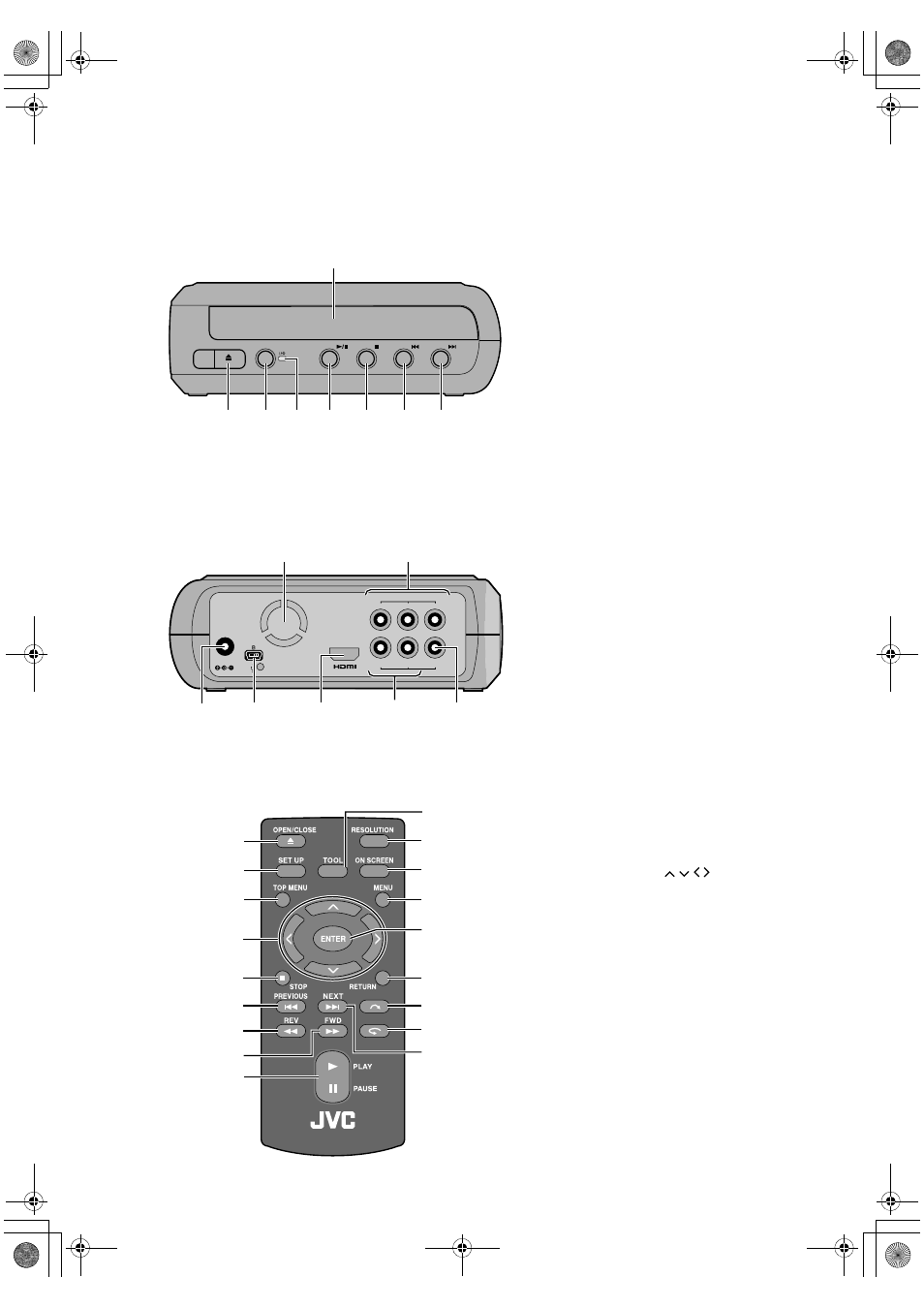

Guide to Parts and Controls
..................................................................................................................................................................
Front
..................................................................................................................................................................
Rear
..................................................................................................................................................................
Remote control
A Open/Close Button ( M)
B Power Button ( C/B)
C Power Lamp
Green light:
When connected to Everio camera or
PC.
Orange light:
During playback.
D Play/Pause Button ( I/W)
E Stop Button ( o)
F Previous Button ( S)
G Next Button ( T)
H Disc Tray
A DC Connector
B USB Connector
C Cooling Fan
D HDMI Terminal
E COMPONENT VIDEO OUT Connectors
F AUDIO Output Connectors
G VIDEO Output Connector
A OPEN/CLOSE Button ( M)
B SET UP Button
C TOP MENU Button
D Selection keys ( / / / )
E STOP Button (
o)
F PREVIOUS Button ( S)
G REV Button ( O)
H FWD Button ( N)
I PLAY/PAUSE Button ( I/W)
J TOOL Button
K RESOLUTION Button
L ON SCREEN Button
M MENU Button
N ENTER Button
O RETURN Button
P Skip Button (
v)
Q Replay Button ( w)
R NEXT Button ( T)
H
A B C D E F G
DC
AUDIO
COMPONENT VIDEO OUT
R
P R P B Y
L VIDEO
A B
C
D
E
G F
I
H
G
F
E
D
C
B
A
J
K
L
M
N
O
P
Q
R
