10
Connect the output connectors of the burner to the input connectors of the TV with the provided Audio/Video
cable.
NOTES:
z Images can only be displayed on a High-bandwidth Digital Content Protection (HDCP) monitor. (0P24)
z When black-and-white images are not clear, set the “HDMI ENHANCE SETTING” in the setting menu to “ON”. (0P21)

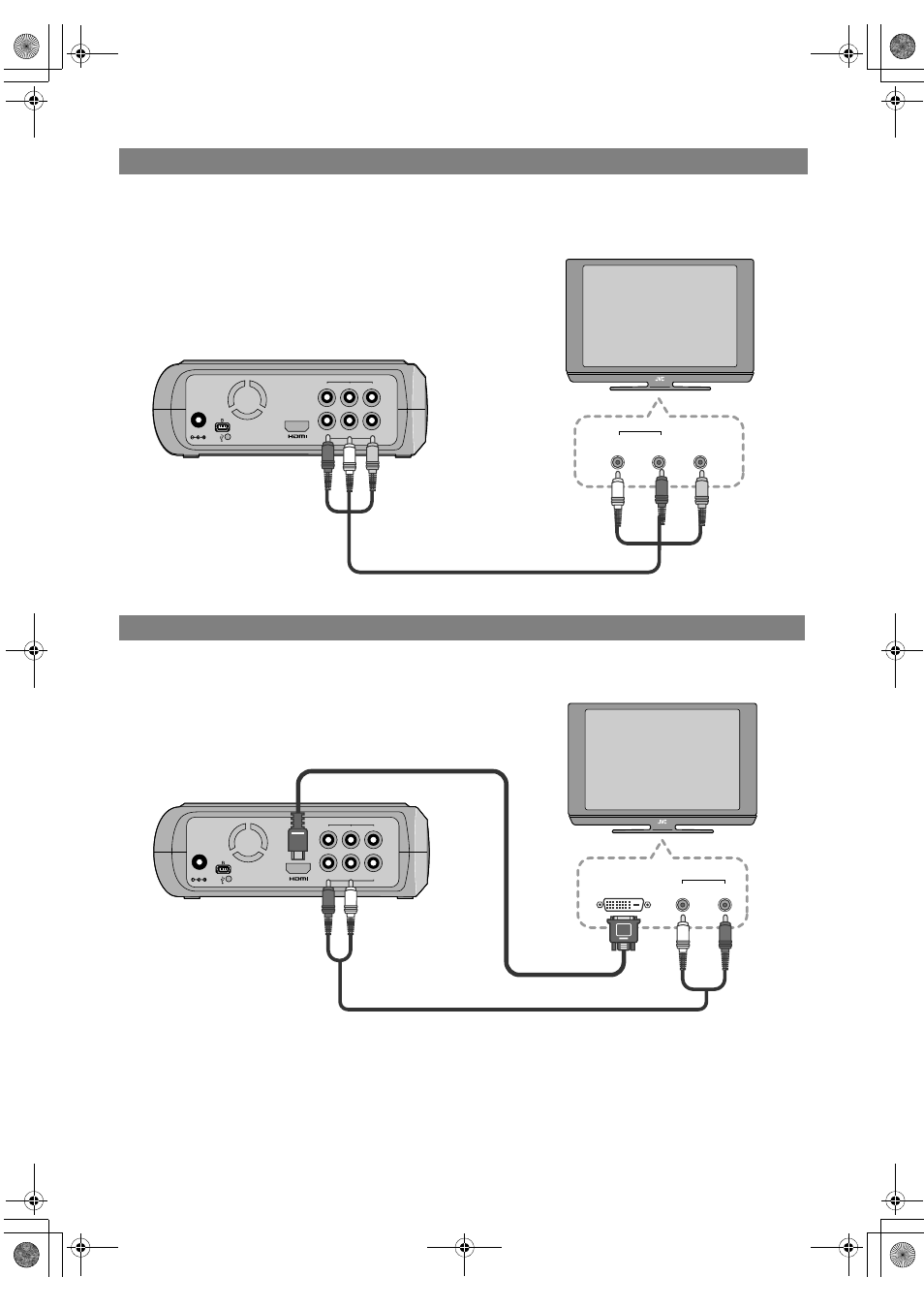

Connecting to a TV with Video/Audio Input Connectors
Connecting to a TV with DVI Input Terminal
DC
AUDIO
COMPONENT VIDEO OUT
R
P R P B Y
L VIDEO
L VIDEO IN R
AUDIO IN
„ This burner
„ TV
Audio/Video cable (provided)
Audio/Video cable
R=Red
L=White
VIDEO=Yellow
DC
AUDIO
COMPONENT VIDEO OUT
R
P R P B Y
L VIDEO
L DVI R
AUDIO IN
„ This burner
„ TV
HDMI-DVI cable
(not provided)
Audio cable (not provided)
Audio cable
R=Red
L=White
