Jensen VR182 - Manual (Page 6)

VR182
6

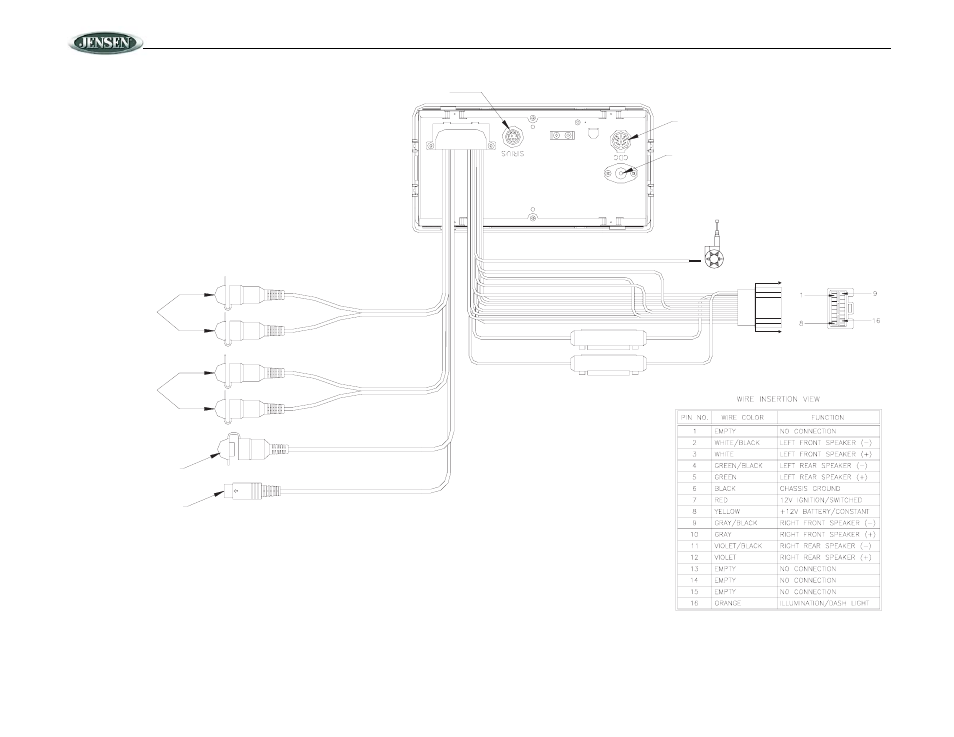

WIRING
Power Antenna
Connect to power antenna
or amplifier. If not used,
tape bare end of wire.
CD Changer Connector
Antenna Connection
0.5A FUSE
15A FUSE
(RED WIRE)
(YELLOW WIRE)
(YELLOW WIRE) Aux-In RCA
Connections
IR Remote Connector
iPOD Connector
Chassis Ground
Connect to ground terminal or clean
unpainted metal part of chassis.
+12V Battery/Constant
Connect to battery or 12 volt power source
that is always live. The radio will not work if
this wire is not connected.
12V Ignition/Switched
Connect to existing radio wire or radio fuse.
SIRIUS Connector
RED
WHITE
(WHITE WIRE)
(BLUE WIRE)
(BLACK WIRE)
A
A
A - A
(GRAY WIRE)
RED
WHITE
Aux-Out RCA
Connections
