User Instructions
13 DATE OF ISSUE: OCTOBER 1996
XK8 Range 1997 User Instructions
Wiring Symbols Wiring Color Codes
N Brown O Orange
B Black S Slate
W White L Light
K Pink U Blue
G Green P Purple
R Red T Tan
Y Yellow BRD Braid
When a wire has two or more color code letters, the first
letter indicates the main color and the subsequent letter(s)
indicate the tracer color(s).
Wiring Harness Codes
Code Description
AC Air Conditioning (Climate Control)
AN Generator Suppression Module
AS Generator to Starter
BB Trunk Bridging Link
BC Main Power Distribution
BL Trunk Lid
BT Trunk
DD Door, Driver
DP Door, Passenger
EL Engine Management Cruise Control Link
EM Engine Management
EN Engine Management Side Marker Link
FC Fascia
FL LH Front Wheel
FR RH Front Wheel
IC In-Car Entertainment
IS Inclination Sensor Link
LF Left Forward
LL Power Steering Link
PI Engine
QL Convertible LH Quarter Light Link
QR Convertible RH Quarter Light Link
RF Roof
RH Rearward
RL LH Rear Wheel
RR RH Rear Wheel
RT Radio Telephone
SA Starter to Generator Link
SC Column Switchgear
SD Seat, Driver
SP Seat, Passenger
SW Steering Wheel
TL Telephone
Code Numbering
When numbering connectors, grounds and splices, Jaguar
Engineering uses a three-position format: AC001, AC002,
etc. Because space is limited in this Electrical Guide, the
codes have been shortened. Thus AC001-001 becomes
AC1-1, AC002-001 becomes AC2-1, etc.

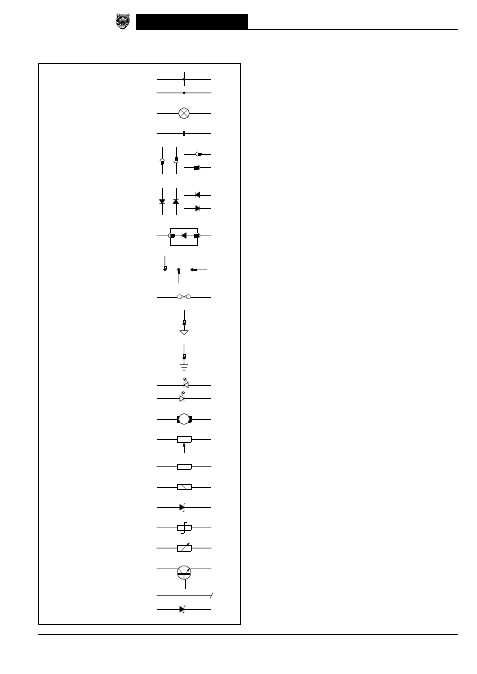

XX1 XX1-X XX1-X
SPLICE
SIMPLIFIED SPLICE
BULB
CAPACITOR
CONNECTOR
DIODE
DIODE (IN HARNESS)
EYELET AND STUD
FUSE
LOGIC GROUND
POWER GROUND
LED
LED
MOTOR
POTENTIOMETER
RESISTOR
SOLENOID
SUPPRESSION DIODE
SUPPRESSION RESISTOR
THERMISTOR
TRANSISTOR
WIRE CONTINUED
ZENER DIODE
