Buckets 450D LC
A full line of buckets is offered to meet a wide variety of applications. Digging forces are with power boost. Tooth selection includes either the John Deere Fanggs ® , Standard,
Tiger, Twin Tiger, Abrasion panel, or Flare tooth, or the ESCO (Vertalok) Standard, Tiger, Twin Tiger, or Flare tooth. Replaceable cutting edges are available through John Deere
parts. Optional side cutters add 6 inches (150 mm) to bucket widths.
Arm Dig Arm Dig Arm Dig Arm Dig
Bucket Bucket Bucket Force 9 ft. Force 11 ft. Force 12 ft. Force 16 ft. Bucket
Type Bucket Width Capacity* Weight Dig Force 6 in. (2.9 m) 2 in. (3.4 m) 10 in. (3.9 m) 1 in. (4.9 m) Tip Radius No. Teeth
in. mm cu. yd. m 3 lb. kg lb. kN lb. kN lb. kN lb. kN lb. kN in. mm
General-Purpose 54 1370 2.30 1.76 2,215 1005 40,505 180.2 34,778 155.0 69.5 1765 7
Plate Lip
Heavy-Duty 42 1065 1.85 1.41 3,124 1417 54,900 244.0 51,705 230.0 44,354 197.0 40,474 180.0 71.5 1816 5
Plate Lip 48 1220 2.15 1.64 3,320 1505 54,900 244.0 51,705 230.0 44,354 197.0 40,474 180.0 71.5 1816 6
54 1370 2.45 1.87 3,578 1623 54,900 244.0 51,705 230.0 44,354 197.0 40,474 180.0 71.5 1816 6
60 1525 2.74 2.10 3,771 1710 54,900 244.0 51,705 230.0 44,354 197.0 40,474 180.0 71.5 1816 7
66 1675 3.01 2.30 3,825 1735 54,900 244.0 51,705 230.0 44,354 197.0 40,474 180.0 71.5 1816 7
72 1830 3.29 2.52 4,061 1842 54,900 244.0 51,705 230.0 44,354 197.0 40,474 180.0 71.5 1816 8
Truck Loading 72 1830 4.18 3.20 4,340 2041 53,028 236.0 51,013 227.0 43,816 195.0 40,026 178.0 74.0 1880 6
Heavy-Duty 48 1220 2.69 2.06 3,969 1800 53,028 236.0 51,013 227.0 43,816 195.0 40,026 178.0 74.0 1880 5
High Capacity 54 1370 3.06 2.34 4,478 2031 53,028 236.0 51,013 227.0 43,816 195.0 40,026 178.0 74.0 1880 5
60 1525 3.43 2.62 5,131 2327 53,028 236.0 51,013 227.0 43,816 195.0 40,026 178.0 74.0 1880 6
66 1675 3.80 2.91 5,003 2269 53,028 236.0 51,013 227.0 43,816 195.0 40,026 178.0 74.0 1880 6
72 1830 4.18 3.20 5,865 2660 53,028 236.0 51,013 227.0 43,816 195.0 40,026 178.0 74.0 1880 7
*All capacities are SAE heaped ratings and with side cutters.

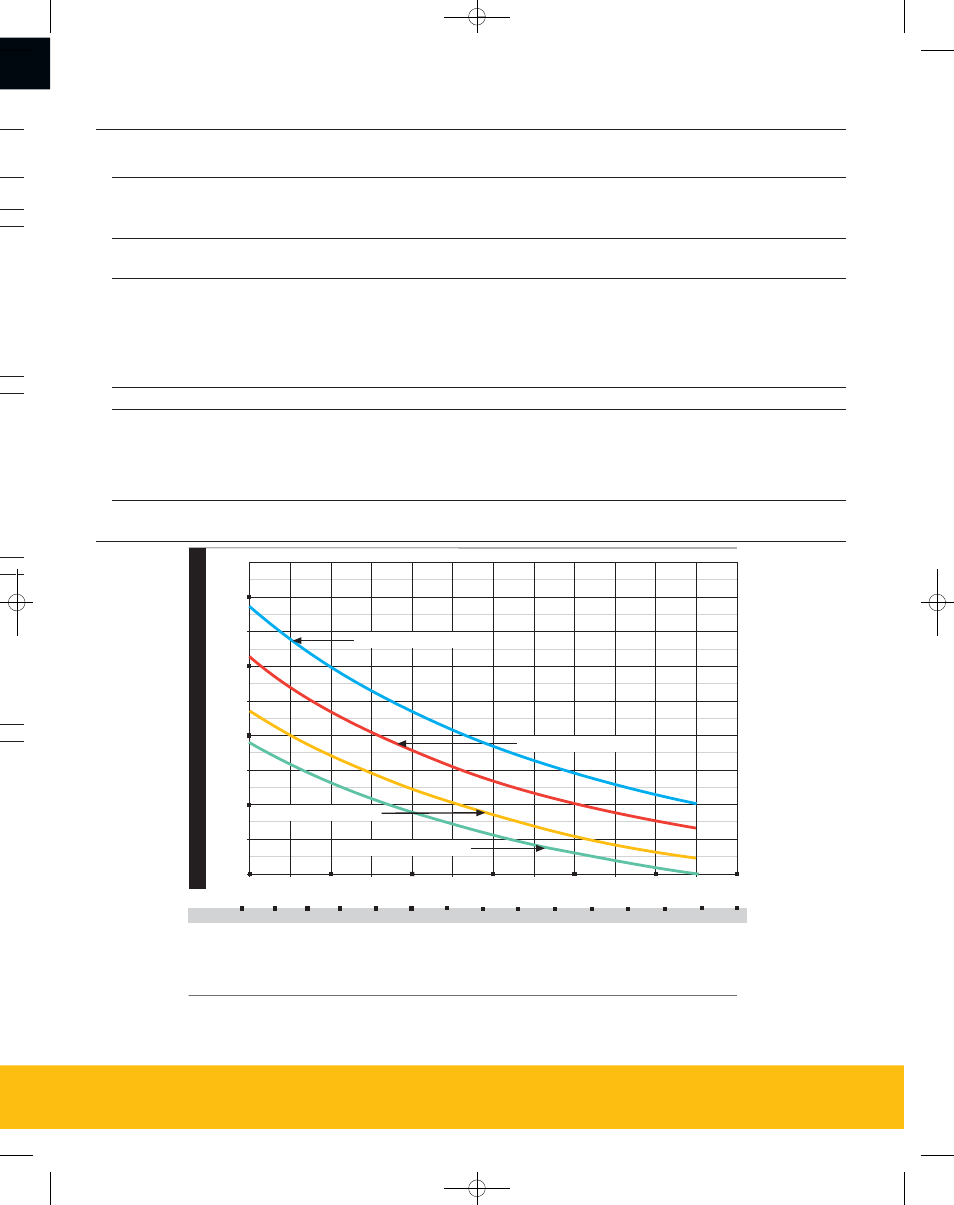

Bucket Selection Guide*
5.0
(3.8)
4.0
(3.0)
3.0
(2.3)
2,000 2,200 2,600 3,200 lb./cu. yd.
kg/m 3
BUCKET SIZE cu.
yd.
(m
3
)
1,600
6.0
(4.5)
3,400
2.0
(1.5)
2.5
(1.9)
3.5
(2.7)
4.5
(3.4)
5.5
(4.2)
1,200 1,400 1,800 2,400 2,800 3,000 3,600
W
et P
eat
Topsoil Coal Caliche Shale Dr
y Sand
Dr
y Clay
Limestone W
et Earth
W
et Clay
, Granite
Moist Sand W
et Sand
W
et Sand,
Gravel
Contact your John Deere dealer for optimum bucket and attachment selections. These recommendations are for general conditions and average use. Does not include optional
equipment such as thumbs or couplers. Larger buckets may be possible when using light materials, for flat and level operations, less compacted materials, and volume loading
applications such as mass excavation applications in ideal conditions. Smaller buckets are recommended for adverse conditions such as off-level applications, rocks, and uneven
surfaces. Bucket capacity indicated is SAE heaped. *
1300 700 800 900 1000 1100 1200 2000 1400 1500 1600 1700 1800 1900 2100
6.5
(5.0)
Deere 9-ft. 6-in. (2.9 m) Arm
Deere 11-ft. 2-in. (3.4 m) Arm
Deere 12-ft. 10-in. (3.9 m) Arm
Deere 16-ft. 1-in. (4.9 m) Arm
