ations
Capacities (U.S.) 450D LC
Fuel Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192 gal. (725 L)
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . . 50.7 qt. (48 L)
Engine Lubrication, Including Filter . . . . . . . . . . . . 59 qt. (55.8 L)
Hydraulic Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 gal. (322 L)
Hydraulic System . . . . . . . . . . . . . . . . . . . . . . . . . 148 gal. (560 L)
Propel Gearbox (each) . . . . . . . . . . . . . . . . . . . . . . 9 qt. (8.5 L)
Swing Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 qt. (4.7 L)
SAE Operating Weights
With Full Fuel Tank; 175-lb. (79 kg) Operator;
3.06-cu.-yd. (2.34 m 3 ), 54-in. (1370 mm),
4,478-lb. (2031 kg) Bucket; 12-ft. 10-in.
(3.9 m) Arm; 20,172-lb. (9150 kg) Counter-
weight; and 36-in. (900 mm) Triple Semi-
Grouser Shoes. . . . . . . . . . . . . . . . . . . . . . . . . 106,180 lb. (48 163 kg)
Component Weights
Undercarriage
30-in. (750 mm) Triple Semi-Grouser Shoes . . . 40,227 lb. (18 247 kg)
36-in. (900 mm) Triple Semi-Grouser Shoes . . . 41,726 lb. (18 927 kg)
One-Piece Boom (with arm cylinder) . . . . . . . . . . . 9,458 lb. (4290 kg)
Arm with Bucket Cylinder and Linkage
9 ft. 6 in. (2.9 m). . . . . . . . . . . . . . . . . . . . . . . 5,291 lb. (2400 kg)
With 20-ft. 7-in. (6.3 m) Mass-Excavat-
ing Boom . . . . . . . . . . . . . . . . . . . . . . 5,291 lb. (2400 kg)
11 ft. 2 in. (3.4 m). . . . . . . . . . . . . . . . . . . . . . 5,137 lb. (2330 kg)
12 ft. 10 in. (3.9 m). . . . . . . . . . . . . . . . . . . . . 5,820 lb. (2640 kg)
16 ft. 1 in. (4.9 m). . . . . . . . . . . . . . . . . . . . . . 4,078 lb. (1850 kg)
Boom Lift Cylinders (2) Total Weight . . . . . . . . . . . 1,851 lb. (840 kg)
3.06-cu.-yd. (2.34 m
3 ), 54-in. (1370 mm)
General-Purpose Bucket . . . . . . . . . . . . . . . . . 4,478 lb. (2031 kg)
Counterweight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 20,172 lb. (9150 kg)

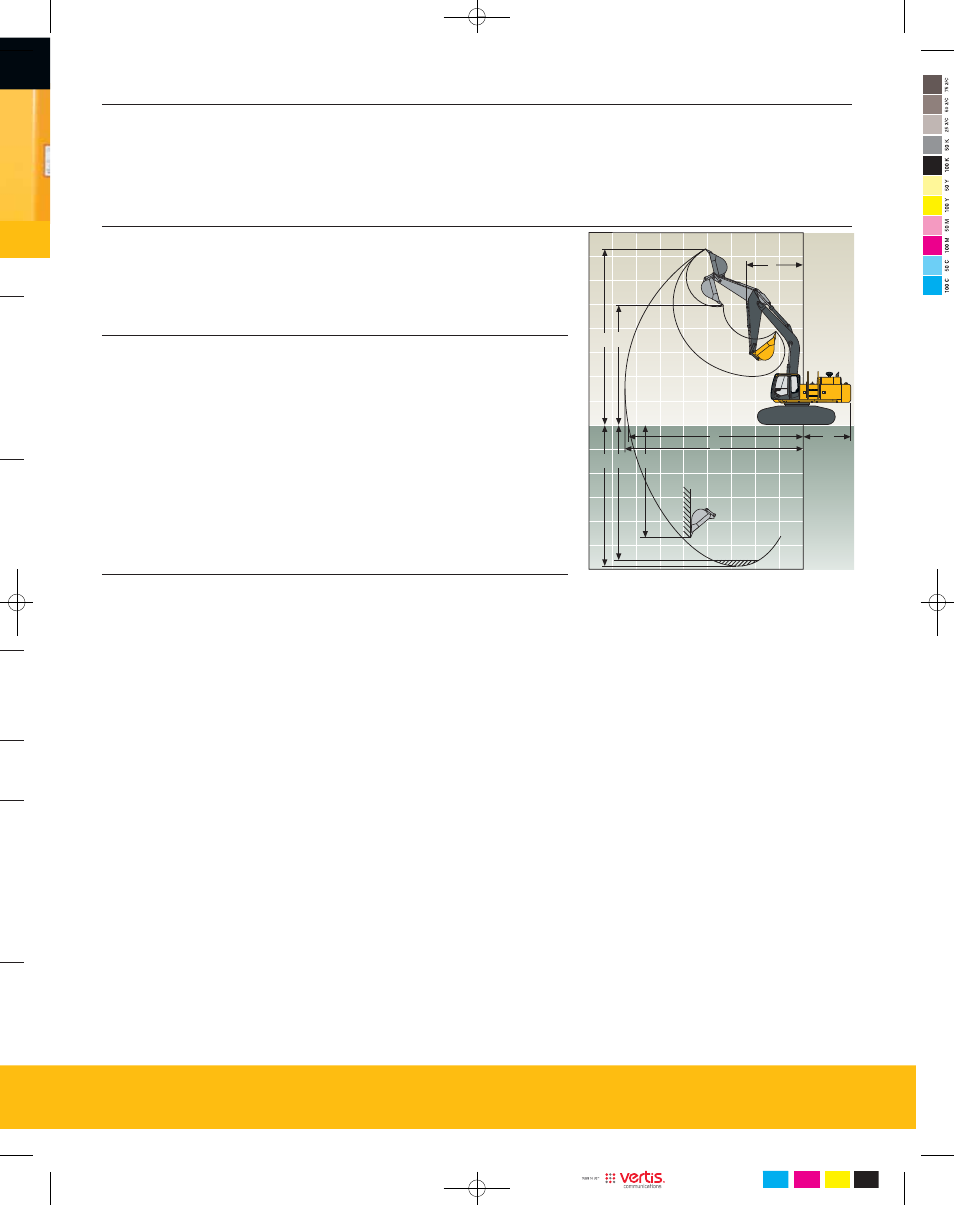

Operating Information
Arm Length 20-ft. 7-in. (6.3 m) Mass-Excavat- Arm Length Arm Length Arm Length
9 ft. 6 in. (2.9 m) ing Boom w/9-ft. 6-in. (2.9 m) Arm 11 ft. 2 in. (3.4 m) 12 ft. 10 in. (3.9 m) 16 ft. 1 in. (4.9 m)
Arm Force with 36-in. (900 mm) Triple Semi-
Grouser Shoes* . . . . . . . . . . . . . . . . . . . . . . . . 51,014 lb. 51,014 lb. (227 kN) 47,321 lb. 43,028 lb. 37,560 lb.
(227 kN) (210 kN) (192 kN) (167 kN)
Bucket Digging Force with 36-in. (900 mm)
Triple Semi-Grouser Shoes* . . . . . . . . . . . . . . 57,111 lb. 57,111 lb. (254 kN) 57,111 lb. 57,111 lb. 43,624 lb.
(254 kN) (254 kN) (254 kN) (194 kN)
Lifting Capacity Over Front @ Ground Level
20-ft. (6.1 m) Reach* . . . . . . . . . . . . . . . . . . . 40,000 lb. 39,900 lb. (18 099 kg) 40,200 lb. 39,200 lb. 38,600 lb.
(18 144 kg) (18 235 kg) (17 781 kg) (17 509 kg)
A Maximum Reach . . . . . . . . . . . . . . . . . . . . . . 37 ft. 5 in. 35 ft. 8 in. (10.86 m) 39 ft. 7 in. 41 ft. 0 in. 43 ft. 9 in.
(11.40 m) (12.06 m) (12.49 m) (13.34 m)
A' Maximum Reach @ Ground Level . . . . . . . . . 36 ft. 8 in. 34 ft. 10 in. (10.61 m) 38 ft. 10 in. 40 ft. 3 in. 43 ft. 1 in.
(11.17 m) (11.84 m) (12.28 m) (13.14 m)
B Maximum Digging Depth . . . . . . . . . . . . . . . . 23 ft. 11 in. 20 ft. 5 in. (6.23 m) 25 ft. 6 in. 27 ft. 2 in. 29 ft. 11 in.
(7.28 m) (7.77 m) (8.27 m) (9.11 m)
B' Maximum Digging Depth @ 8-ft. (2.44 m)
Flat Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . 23 ft. 3 in.
19 ft. 11 in. (6.08 m) 25 ft. 0 in. 26 ft. 8 in. 29 ft. 6 in.
(7.08 m) (7.63 m) (8.14 m) (9.00 m)
C Maximum Cutting Height . . . . . . . . . . . . . . . . 33 ft. 8 in. 35 ft. 8 in. (10.88 m) 36 ft. 3 in. 36 ft. 7 in. 38 ft. 6 in.
(10.25 m) (11.06 m) (11.16 m) (11.73 m)
D Maximum Dumping Height . . . . . . . . . . . . . . 23 ft. 1 in. 24 ft. 1 in. (7.33 m) 25 ft. 1 in. 25 ft. 6 in. 28 ft. 5 in.
(7.03 m) (7.65 m) (7.77 m) (8.67 m)
E Minimum Swing Radius. . . . . . . . . . . . . . . . . 16 ft. 6 in. 12 ft. 11 in. (3.93 m) 15 ft. 10 in. 15 ft. 9 in. 15 ft. 11 in.
(5.02 m) (4.84 m) (4.81 m) (4.85 m)
F Maximum Vertical Wall. . . . . . . . . . . . . . . . . . 17 ft. 3 in. 16 ft. 6 in. (5.02 m) 21 ft. 7 in. 22 ft. 11 in. 27 ft. 7 in.
(5.27 m) (6.59 m) (6.98 m) (8.42 m)
G Tail Swing Radius . . . . . . . . . . . . . . . . . . . . . 12 ft. 0 in. 12 ft. 0 in. (3.65 m) 12 ft. 0 in. 12 ft. 0 in. 12 ft. 0 in.
(3.65 m) (3.65 m) (3.65 m) (3.65 m)
*Digging forces and lift capacities with power boost.
E
GROUND LINE
B
C D
F
G
CENTERLINE OF SWING
B'
A'
A
