ENGLISH

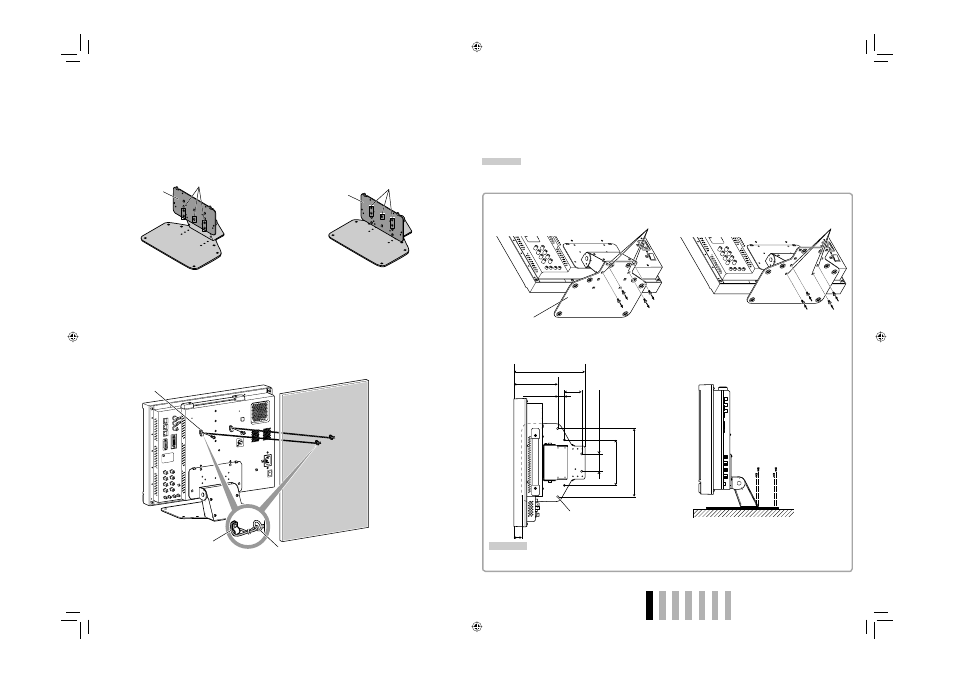

To adjust the stand height

To change the stand height, detach the stand from the monitor. (

☞ “To detach the stand” on page 4) Then,

change the position of the stand plate according to the stand height you want by choosing the screw holes to use.

Screw holes for higher position

Screw holes for lower position

Stand plate

To prevent an accidental fall

Fix the monitor to a wall by using strings.

Fixing the monitor
Attach the hook (not provided) to the VESA mounting holes on the rear panel (use the two holes on the upper
side) using M4 x 10 mm screws (not provided). Bind the hooks on the rear panel of the monitor to a wall or a pillar
using durable string.

Hook and screw (M4 x 10 mm)

(not provided)

Hook (not provided)

VESA mounting holes

To install the monitor on a shelf or any other suitable surface using screws

You can install the monitor on a shelf etc. by changing the position of the bottom plate of the stand to a rearward
position.

CAUTION

• Lay the monitor on a cloth with the LCD panel facing down to prevent the LCD panel from being damaged.
• When you change the position of the bottom plate of the stand, be sure to install the monitor using screws (not

provided).

1 Remove the bottom plate of the stand from the

stand body.

2 Remove the bottom plate of the stand from the

stand body.

Screw holes
for the normal position

Bottom plate

Screw holes
for the rearward position

3 Be sure to fix the bottom plate using screws (not provided). Use two holes or more on one side and four

holes (

6 –

or more on both sides of the bottom plate of the stand.

CAUTION

Be sure to install the monitor on the shelf etc. using screws. Otherwise, the monitor may topple over or fall
down, leading to injury, electric shock, or other hazards.

Screw hole

(6 –

ø 8)

235 (9 3/8)

151 (6)

53.1

(2 1/8)

20.6 (7/8)

36 (1 1/2)

210 (8 3/8)

140 (5 5/8)

54 (2 1/4)

Unit: mm (inch)
