2
English

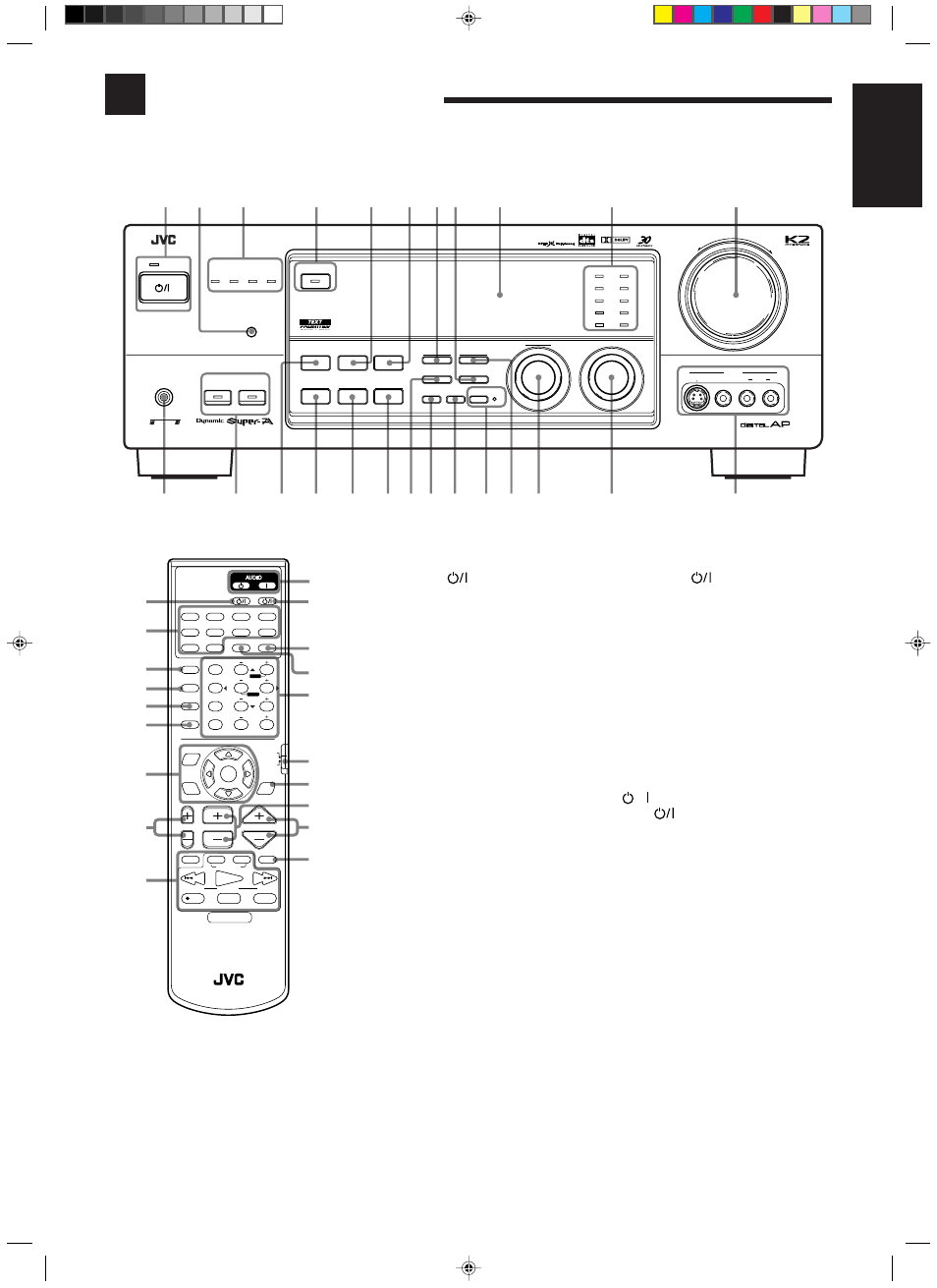

Parts Identification
Become familiar with the buttons and controls on the receiver before use.
Refer to the pages in parentheses for details.
Remote Control
1 TV/CATV/DBS
button (43 – 45)
2 Source selecting buttons (9)
DVD, DVD MULTI, CD, TAPE/MD, TV/DBS,
VIDEO, PHONO, FM/AM, VCR 1, VCR 2
3 SURROUND ON/OFF button (27)
4 SURROUND MODE button (23)
5 DISC button (42)
6 SOUND button (19, 23, 26)
7 On-screen operation buttons (31, 38)
MENU, SET, EXIT,
%, fi, @, #
8 TV VOL +/– buttons (43, 44)
9 Operating buttons for audio/video components
(42 – 45)
p AUDIO buttons (9)
,
q VCR 1
button (43, 45)
w SLEEP button (16)
e ANALOG/DIGITAL button (13)
r • 10 keys for selecting preset channel (18)
• 10 keys for adjusting sound (23 – 26, 30)
• 10 keys for operating audio/video components
(42 – 45)
t Remote control mode selector (9, 42, 44)
y TEXT DISPLAY button (38)
u CHANNEL +/– button (43 – 45)
i VOLUME +/– button (10)
o MUTING button (11)
Front Panel
1 STANDBY/ON
button and STANDBY
lamp (9)
2 Remote sensor (8)
3 DIGITAL SOURCE FORMAT lamps (10)
MPEG, DTS, DOLBY DIGITAL, LINEAR
PCM
4 DOLBY/DTS/MPEG SURROUND ON/OFF
button and lamp (27)
5 SEA MODE button (19)
6 INPUT ANALOG/DIGITAL button (13)
7 FM/AM TUNING button (17) *
8 FM MODE button (18)
9 Display (9)
p Source lamps (9)
q MASTER VOLUME control (10)
w PHONES jack (11)
e SPEAKERS 1/2 buttons and lamps (10)
r DSP MODE button (23)
t BALANCE/SURROUND ADJUST button
(11, 12, 23) *
y SEA ADJUST button (19) *
u SETTING button (12 – 15) *
i TUNER/SEA MEMORY button (17 – 19)
o SOUND SELECT/INPUT ATT button
(10, 11)
; LOUDNESS/SOURCE NAME button
(11, 12)
a ONE TOUCH OPERATION button and lamp
(16)
s TUNER PRESET button (18) *
d MULTI JOG control
What this control actually does depends on
which function you are trying to adjust. Before
using this control, select the function by pressing
one of the buttons marked with *.
f SOURCE SELECTOR control (9)
g VIDEO input jacks (7)
1 BIT P-E-M D-D-COMVERTER
1
3
2
4
5
6 7 8
9
p
q
g
f
d
s
a
;
o
i
u
y
t
r
e
w
–
+
RX-889P AUDIO/VIDEO CONTROL RECEIVER
VIDEO
STANDBY
STANDBY/ON
DIGITAL SOURCE FORMAT
LINEAR
PCM
DOLBY
DIGITAL
DTS
MPEG
SPEAKERS
1
2
PHONES
DOLBY/DTS/MPEG
SURROUND ON/OFF
DSP MODE
BALANCE/SURROUND
ADJUST
SEA MODE
SEA ADJUST
SETTING
MULTI JOG
MASTER VOLUME
SOURCE SELECTOR
S-VIDEO
VIDEO
AUDIO
L
R
INPUT
ANALOG/DIGITAL
FM/AM TUNING
TUNER PRESET
TUNER/SEA MEMORY
FM MODE
DVD
TV SOUND/DBS
PHONO
TAPE/MD
VCR 1
VCR 2
FM
AM
VIDEO
CD
SOUND SELECT
INPUT ATT
LOUDNESS
ONE TOUCH OPERATION
SOURCE NAME
COMPULINK
Remote
D I G I T A L
1
2
3
4
5
6
7
8
9
o
i
u
y
t
r
e
w
q
p
RM-SRX889P REMOTE CONTROL
CONTROL
CHANNEL
VOLUME
TV VOL
STOP
PAUSE
FF/
/REW
VCR 1
TV/VIDEO
TAPE
MUTING
REC
PLAY
TV/CATV/DBS
VCR 1
DVD
DVD MUILTI
CD
TAPE/MD
TV/DBS
VIDEO
PHONO
FM/AM
VCR 1
VCR 2
ANALOG/DIGITAL
SURROUND
CNTR TONE
CNTR
SURROUND
TEST
REAR-L
DISC
MODE
ON/OFF
EFFECT
REAR-R
SOUND
SEA MODE
SUBWOOFER
RETURN
SET
MENU
AUDIO/
TV/VCR
EXIT
TEXT
DISPLAY
FM MODE/MUTING
SLEEP
1
2
3
4
5
6
7
/P
8
9
10
0
+10
100+
CATV/DBS
MENU
MENU
ENTER
ENTER
TUNING
DOWN
UP
EN01-08.RX-889P[US, UB]/f
