Getting started
13
Getting star
ted
XV-M555BK [B, E, EV] EN
LVT0391-003A
COMP. Y/C
AV
PCM/STREAM
OPTICAL
VIDEO S-VIDEO
LEFT
RIGHT
AUDIO OUT DIGITAL OUT
VIDEO OUT AV OUT
VIDEO
IN
IN
S-VIDEO
AUDIO
RIGHT
LEFT
AV
IN
AUDIO
RIGHT
LEFT
COMP. Y/C
AV
PCM/STREAM
OPTICAL
VIDEO S-VIDEO
LEFT
RIGHT
AUDIO OUT DIGITAL OUT
VIDEO OUT AV OUT
SCART cable
(not supplied)
TV
The unit
• Connect the unit's AUDIO OUT to any line-level inputs (such as AUX, DVD, CD, etc.) of an audio amplifier or
receiver.
To connect to an audio amplifier or receiver
You can enjoy high-quality audio by connecting the unit's audio output to your amplifier or receiver.
Audio cable
(not supplied)
The unit
Amplifier or receiver
White Red White
Red

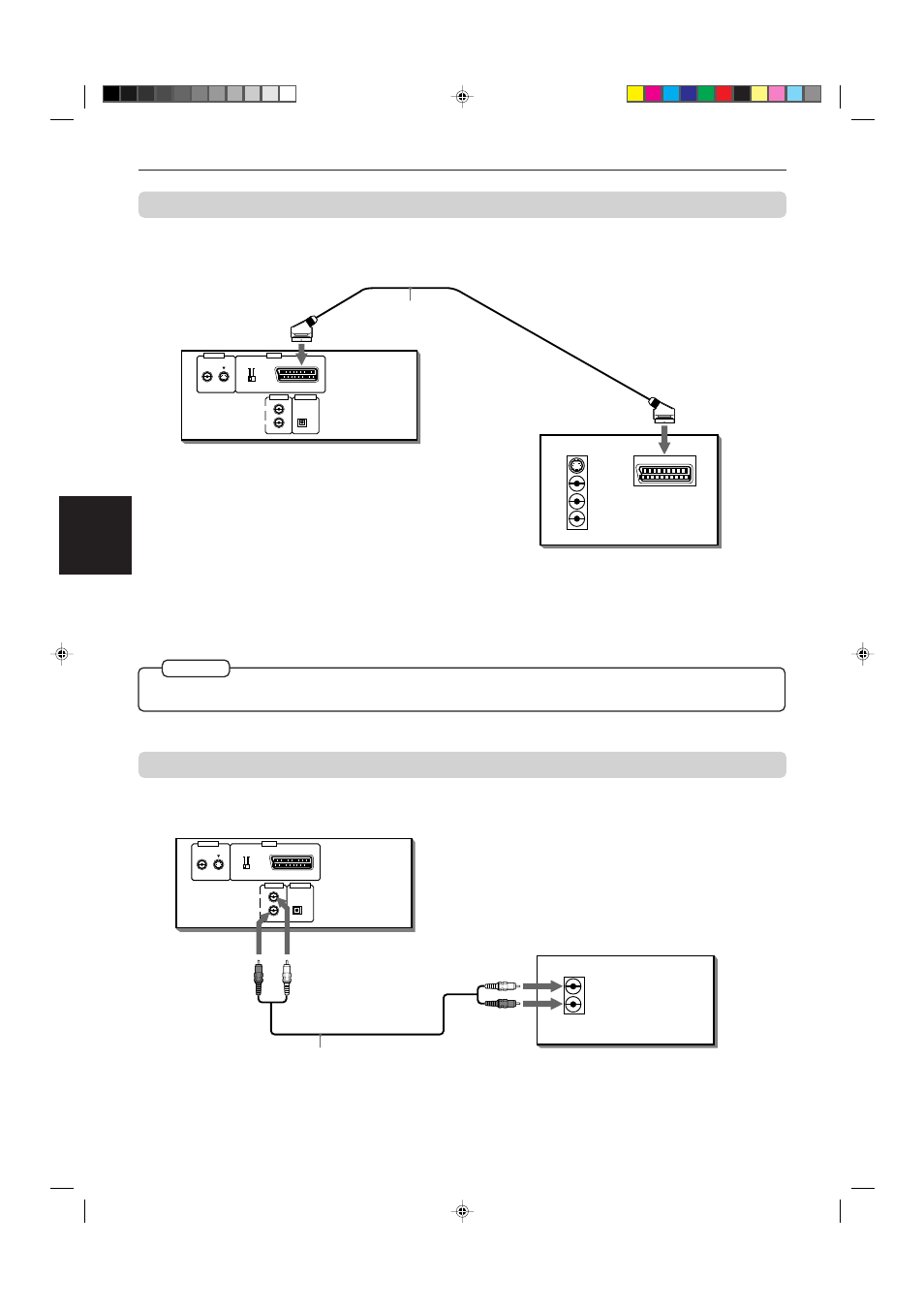

To connect to a TV with the SCART connector
You can enjoy using the unit by simply connecting it to your television set with a 21-pin SCART cable. To hear audio
sound with better quality, connect the audio output to your audio equipment. (See below.)
Connect the unit’s AV OUT connector with your TV’s SCART connector using an optional SCART cable.
• If your TV’s SCART connector is compatible only with the regular video signal, set the COMP.-Y/C switch to “COMP.”.
• If your TV’s SCART connector is compatible with the Y/C signal, set this switch to “Y/C”. You will enjoy better-
quality pictures.
NOTE
• Do not connect the unit to a NTSC television. Connect it to a PAL television.
