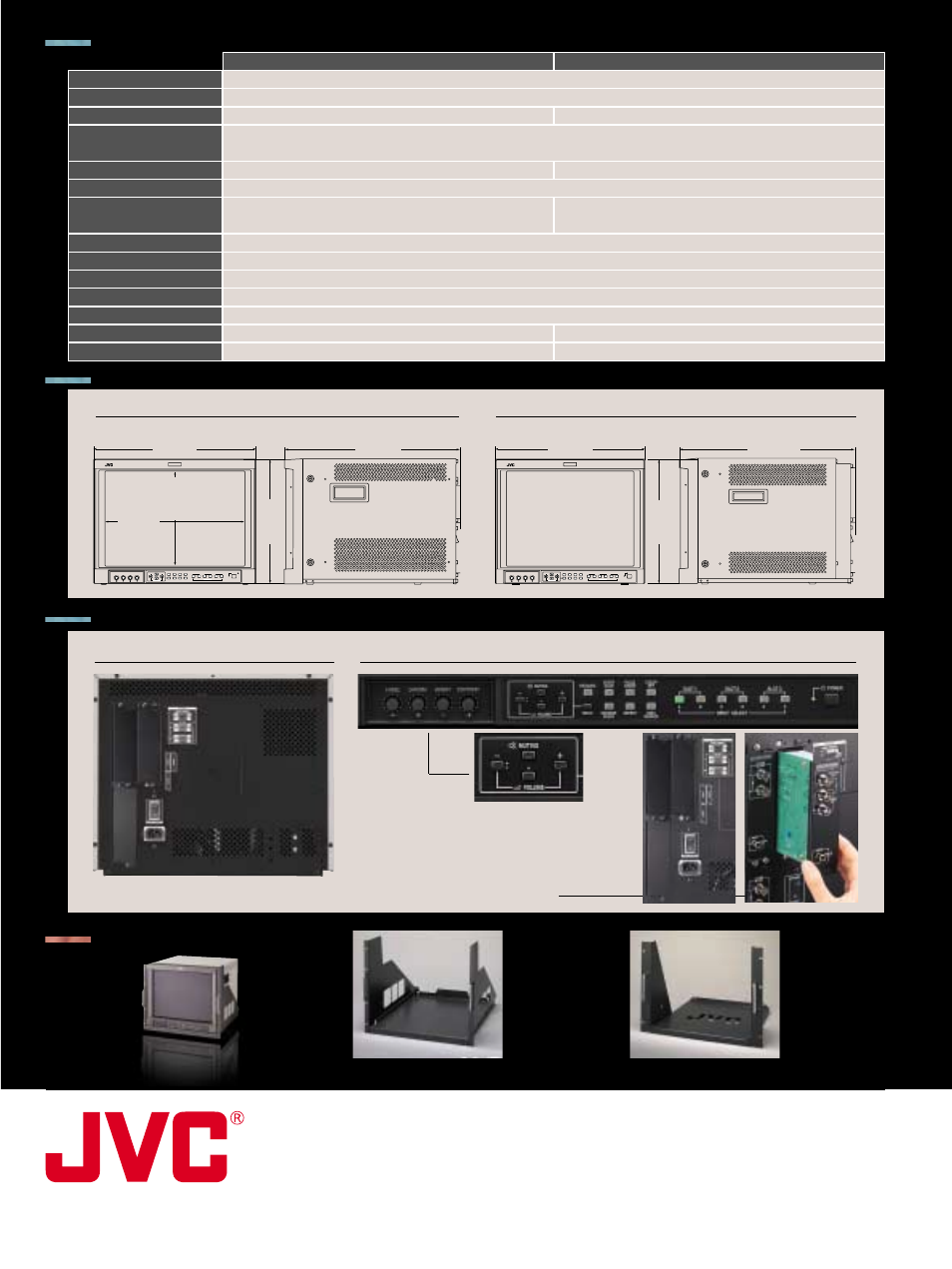

19-5/8 (496)
● Side View
14-7/8 (377)
11-1/4 (285)
PHASE CHROMA BRIGHT CONTRAST POWER
17-3/8 (440)
14-7/8 (375)
Y/TI Y/TI Y/TI Y/TI Y/TI
Y/TI Y/TI Y/TI Y/TI
Y/TI Y/TI
A B C D E
DTV Component-multi
INPUT SELECT MENU/SELECT
● Front View
4:3
● Side View
18-3/8 (466.5)
● Front View
PHASE CHROMA BRIGHT CONTRAST POWER
15-5/8 (395)
13-1/4 (334)
Y/TI Y/TI Y/TI Y/TI Y/TI
Y/TI Y/TI Y/TI Y/TI
Y/TI Y/TI
A B C D E
DTV Component-multi
INPUT SELECT MENU/SELECT
Unit: inches (mm)
DT-V1910CG DT-V1710CG
Type Multi-Format Color HDTV/SDTV Video Monitor
Color Systems NTSC, PAL, 480i, 576i, 480p, 576p, 1080i, 1080/24psF, 720/60p, 720/50p
CRT 18"V (19") in-line gun, AG pitch 0.25 mm, Natural Flat CRT 16"V (17") in-line gun, AG pitch 0.25 mm, Natural Flat CRT
Scanning Frequency
(H) 15.625/15.734/28.125/31.5/33.75/45kHz
(V) 48 (24psF)/50/59.94/60Hz
Horizontal Resolution More than 900 TV lines More than 800 TV lines
Power Requirement 120V/220V/230V AC, 50Hz/60Hz
Power Consumption
120V AC, 1.8A (MAX. 2.1A) when input card is inserted.
220V/230V AC, 1.0A (MAX. 1.2A) when input card is inserted.
120V AC, 1.56A (MAX. 1.85A) when input card is inserted.
220V/230V AC, 0.9A (MAX. 1.0A) when input card is inserted.
Color Temperature 6,500°K/9,300°K selectable
Video Input 3 slots for optional input cards
Audio Input Video input card incorporates audio inputs
Audio Speaker 3-3/16" (8 cm) round
Remote Terminals
Dimensions (W x H x D) 17-3/8" x 14-7/8" x 19-5/8" (440 x 375 x 496 mm)
Weight 64.7 lbs. (29.4 kg)
15-5/8" x 13-1/4" x 18-3/8" (395 x 334 x 466.5 mm)
52.2 lbs. (23.7 kg)
DT-V1910CG DT-V1710CG
Specifications
Dimensions
Design and specifications subject to change without notice.
RS-485: 9-pin, D-sub x 2. Contact Closure & Trigger: 15-pin, D-sub
Printed in Japan
ICN-0293
"JVC" is the trademark or registered trademark of Victor Company of Japan, Limited.
DISTRIBUTED BY JVC PROFESSIONAL PRODUCTS COMPANY
DIVISION OF JVC AMERICAS CORP.
1700 Valley Road, Wayne, N.J. 07470
TEL: (973) 317-5000, (800) 582-5825 FAX: (973) 317-5030
Internet Web Site http://www.jvc.com/pro
E-mail: [email protected]
JVC CANADA INC.
21 Finchdene Square, Scarborough, Ontario M1X 1A7
TEL: (416) 293-1311 FAX: (416) 293-8208
Internet Web Site http://www.jvcpro.com/
Rear Slot/Remote Controls for the DT-V1910CG Front and Rear Slot/Remote Controls
Front and Rear Controls
E. & O.E. Design and specifications are subject to change without notice. All brand or product names may be trademarks and/or registered trademarks of their respective owners. Any rights not expressly granted herein
are reserved. Certain accessories may not be available in certain areas. Copyright © 2004 Victor Company of Japan, Limited (JVC). All Rights Reserved.
Rack Mount Adapter RK-C1900E
EIA Rack Mount Adapter
for DT-V1910CG
RK-C1700E
EIA Rack Mount Adapter
for DT-V1710CG
