S-VIDEO
Connection

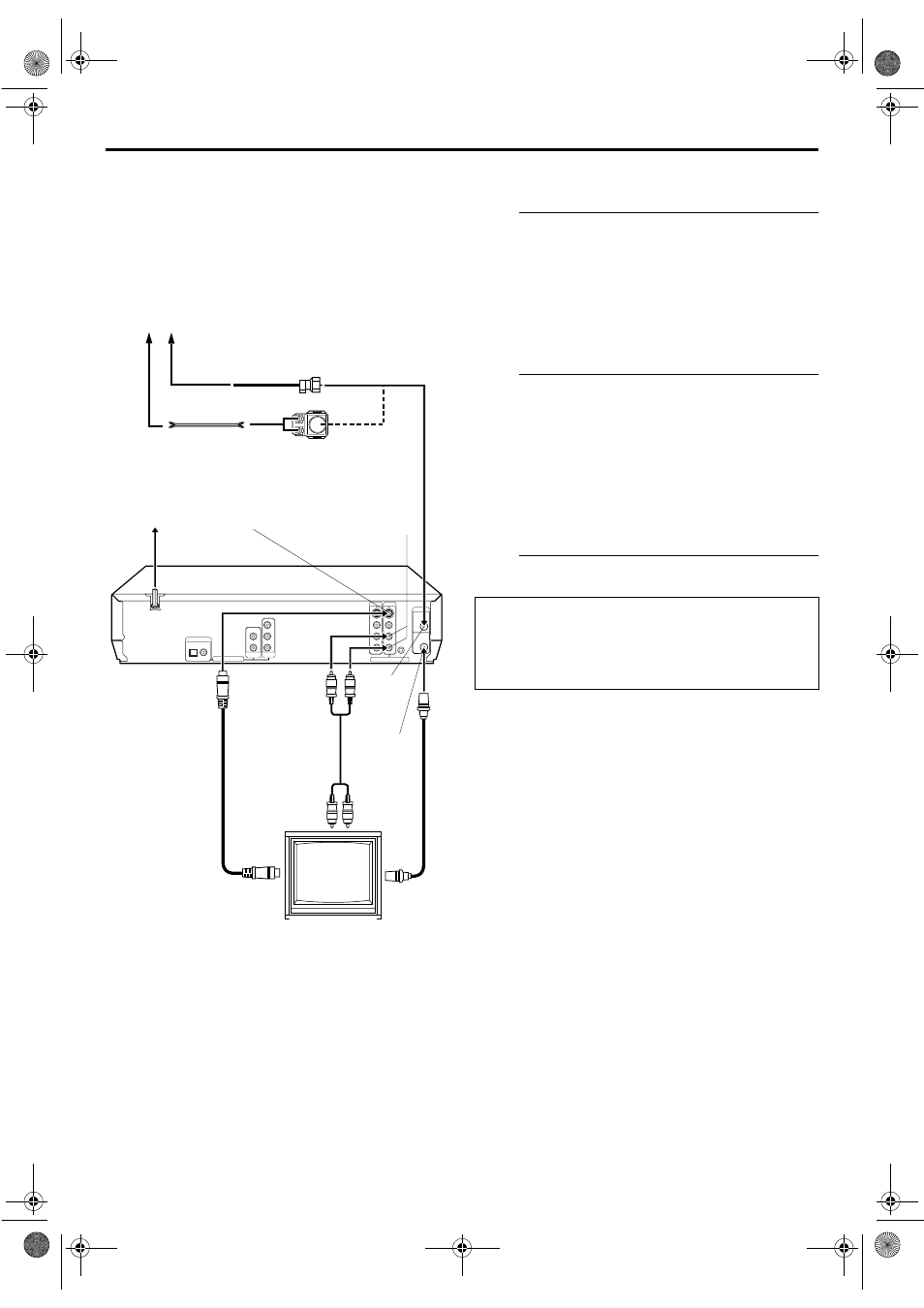

8To connect to a TV with S-VIDEO/AUDIO input
connectors . . .
A
Connect the unit to TV.
A Connect the antenna, unit and TV as per “RF
Connection”. (
੬
pg. 12)
B Connect an optional audio cable between the AUDIO
OUTPUT connectors on the rear panel of the unit and
the TV’s audio input connectors.
C Connect the unit’s S VIDEO OUTPUT connector to the
TV’s S-VIDEO input connector.
B
Connect the unit to power source.
Plug the end of the AC power cord into an AC outlet. This
unit performs Plug & Play Set automatically. (
੬
pg. 15)
● The clock and tuner channels will automatically be set when
the antenna is connected and when the AC power cord is first
connected to an AC outlet. (If “AUTO” and the channel
indicator are displayed on the front display panel before the
unit is powered on, the clock and tuner channels are being set
automatically. Wait for the time to be displayed on the front
display panel before turning on the unit.)
C
Set the VCR channel to off.
A Press POWER (1) to turn off the unit, then press
STOP ( 8) on the unit for more than 5 seconds. “3 CH”
appears on the front display panel.
B Press CH +/– on the Remote to select “– CH” (off),
then press OK.
NOTES:
● You can obtain high-quality S-VHS pictures.
● If your TV is not stereo-capable, use the unit’s AUDIO
OUTPUT (DVD/VCR) connectors to connect to an audio
amplifier for Hi-Fi stereo sound reproduction.
● To operate the unit with your TV using the S-VIDEO
connection, set your TV to its AV mode. You can also use the
TV/VCR button on the unit’s Remote to set your TV to the AV
mode. (
੬
pg. 71)
● For switching the TV’s mode, refer to the instruction manual of
your television.
TV
To S-VIDEO input
connector
AUDIO OUTPUT
S-Video cable
(supplied)
Audio cable
(not supplied)
AC outlet
AC power cord
Back of unit
RF cable
(supplied)
S VIDEO OUTPUT
Antenna or Cable
Matching transformer
(not supplied)
Coaxial cable
Flat feeder
To 75 ohm
Terminal
VHF/UHF
OUT
VHF/UHF
IN
Before performing the following steps:
● Make sure there is no cassette inserted in the unit.
● Make sure the unit is turned on, then press VCR/
DVD on the unit or VCR on the Remote so that the
VCR indicator lights up.
