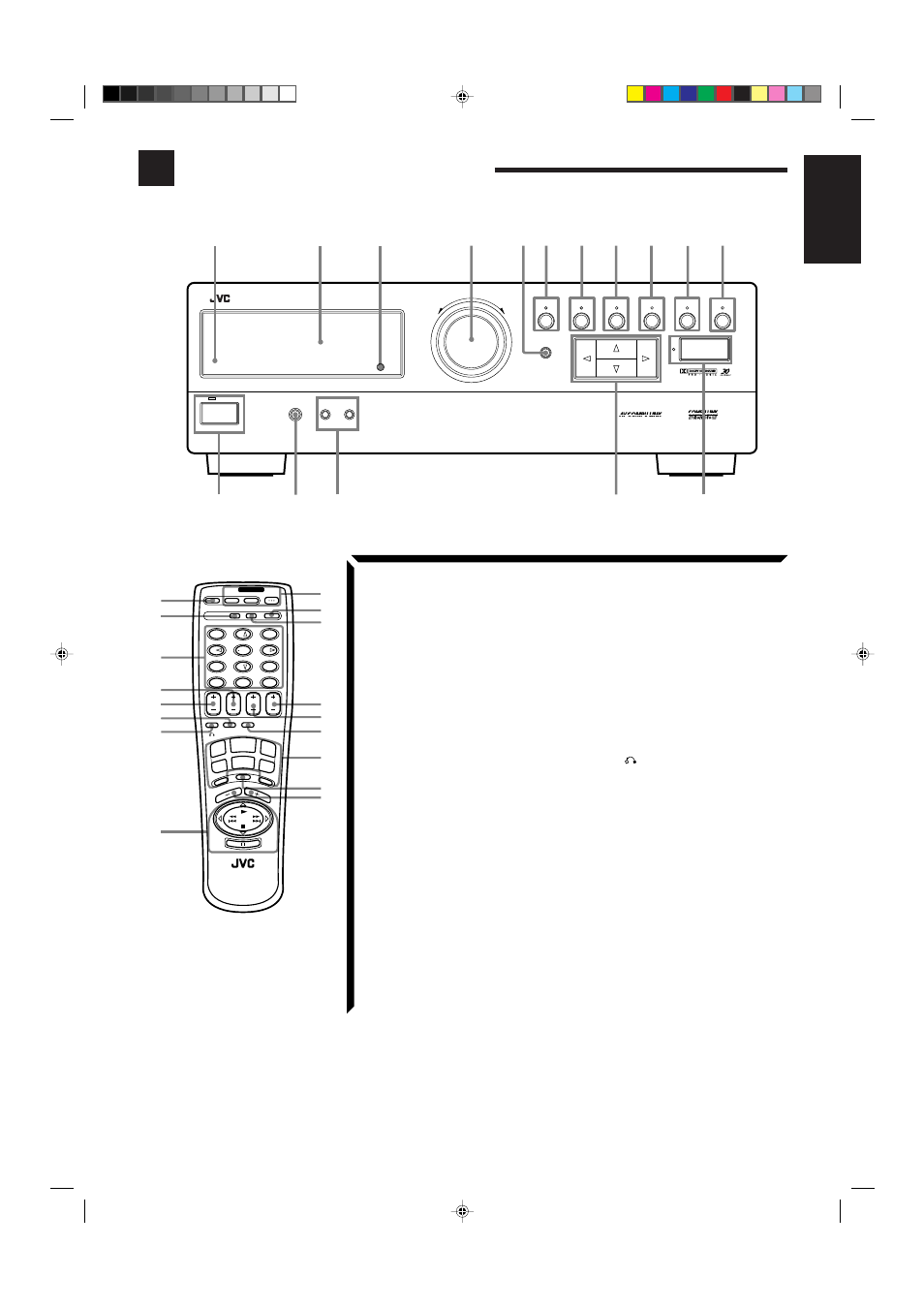

Parts Identification
Become familiar with the buttons and controls on the receiver before use.
Refer to the pages in parentheses for details.
Front Panel
1 Remote sensor (9)
2 Display (10)
3 DVD MULTI button (34)
4 MASTER VOLUME control (11)
5 MEMORY button (17)
6 TUNER/BAND button and lamp (17)
7 PRESET SEA button and lamp (20)
8 SOURCE button and lamp (10)
9 SURROUND button and lamp (23, 25)
0 ADJUST button and lamp (23, 25)
- SETTING button and lamp (13)
= POWER button and STANDBY lamp
(11)
~ PHONES jack (12)
! SPEAKERS 1/2 buttons (11)
@ Control
% / fi / @ / # buttons
# ONE TOUCH OPERATION button and
lamp (16)
Remote Control
$ SOUND CONTROL button (21, 24, 26,
31, 33, 35)
% VCD CONTROL button (41)
^ 10 keys/Sound control buttons
(18, 21, 24, 26, 31, 32, 33, 35)
& REAR (L) buttons (+/–) (32, 35)
* CENTER buttons (+/–) (32, 35)
( ONE TOUCH OPERATION button (16)
)
VCD button (41)
_ Operating buttons for JVC audio/video
components (39, 40, 41, 43)
+ POWER buttons (TV, VCR, AUDIO)
(10, 40, 42, 43)
¡ CD-DISC button (39)
™ VCD-DISC button (40)
£ CH (Channel) buttons (+/–) (40, 42, 43)
¢ TV VOLUME buttons (+/–) (40, 42)
∞ TV/VIDEO button (40, 42)
§ Source buttons (TUNER/BAND, CD,
TAPE, TV SOUND, VCR, DVD,
PHONO, DVD MULTI) (10, 35, 39, 40,
41, 43)
¶ MUTING button (11)
• VOLUME buttons (+/–) (11)
1 4 6
!
^
&
*
(
~ @
- 9 8
# =
0 7 5 3 2
DESIGNED BY JVC JAPAN
RX-60V AUDIO/VIDEO CONTROL RECEIVER
STANDBY
POWER
PHONES SPEAKERS
MASTER VOLUME
– +
TUNER/BAND PRESET SEA SOURCE SURROUND ADJUST
ONE TOUCH OPERATION
SETTING
MEMORY
1 2
_ ON — OFF
DVD MULTI
%
$
)
_
+
¡
™
£
¢
∞
§
SOUND CONTROL
TV/VIDEO
TV
VCD CONTROL VCD-DISC CD-DISC
VCR AUDIO
CENTER REAR
(L)
RETURN/ENTER
3 2 1
6 5 4
9 8
0
7/P
+10 10
CD
VCR
MUTING DVD MULTI
TAPE
DVD
POWER
TUNER/ BAND
TV
SOUND
RM-SR60U
REMOTE CONTROL
TV
VOLUME CH
ONE TOUCH
OPERATION
PHONO
VOLUME
DAP MODE 3D-PHONIC SURROUND
– REAR•R +
EFFECT DELAY TEST
SEA MODE SEA PRESET MENU
VCD
¶
•
