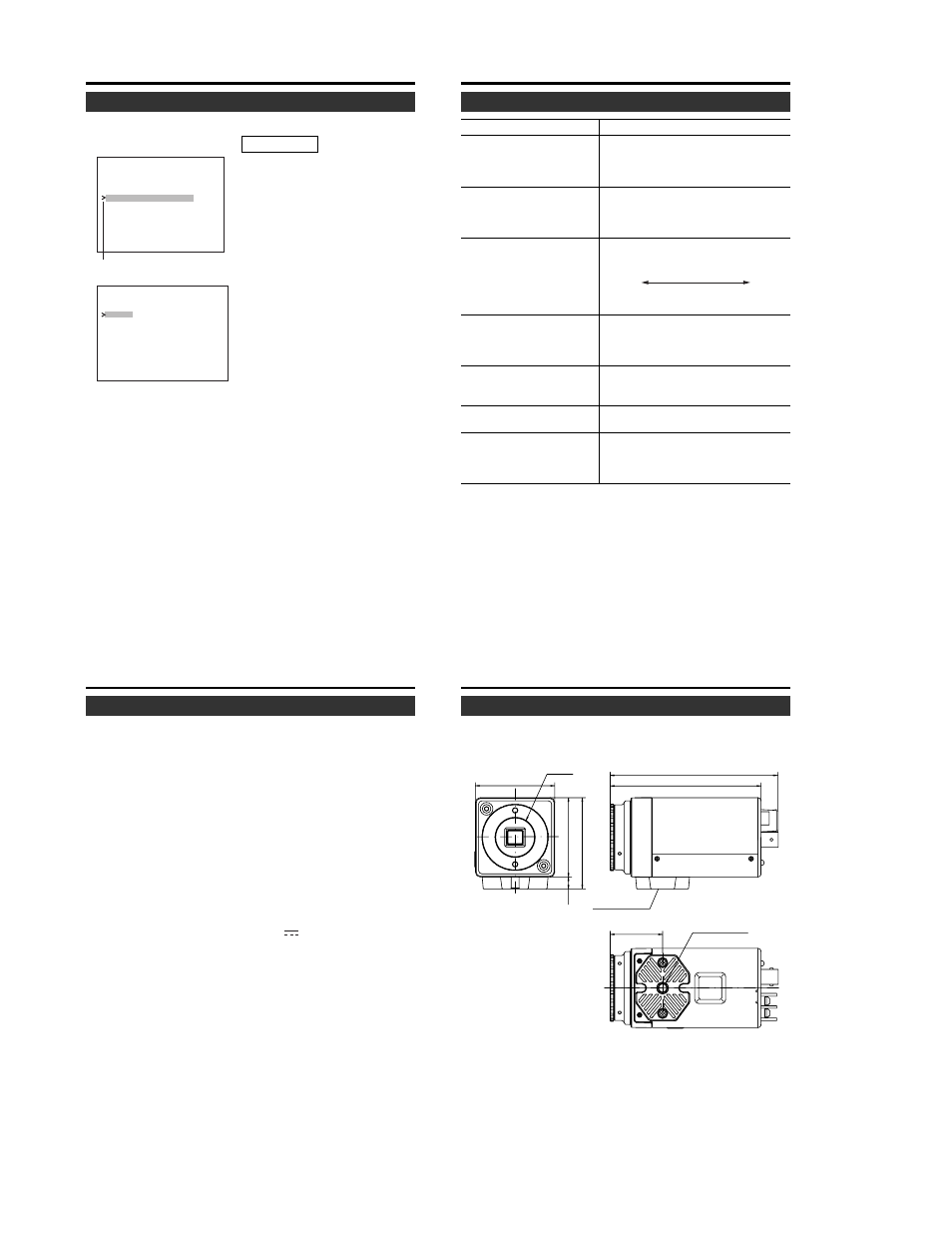

38
MENU SETTING
FACTORY SETTINGS screen
Returns set values to their factory settings.
1. Display the FACTORY SET-
TINGS screen. (
੬ Page 24)
2. Press the SELECTOR button in
the vertical direction (
6 or 7)
and move the cursor (>) to
CLEAR.
3. Press the SET button.
● Settings including the camera
title will be restored to the fac-
tory settings and the screen
will return to the MENU
screen.
* Select CANCEL and press the
SET button to return to the
MENU screen without chang-
ing settings.
4. Exit the menu screen.
Select EXIT within the MENU
screen and press the SET but-
ton to return to the normal
screen.
V I D E O A D J U S T . .
F OC U S A D J U S T . .
C AM E R A S E T T N G S I . .
F A C T O R Y S E T T N G S I . .
M E N U
C A N C
F — — — — — —
— — — — — —
A C T OR Y S E T T I N G S
E L
C L E A
E X I T
R
Cursor
Operation
39
Troubleshooting
OTHERS
Symptom Remedy
The operation becomes un-
stable
The auto iris will not operate
There is noise in the screen
or increase in residual images
The colors of the screen are
not natural
White balance adjusted
automatically/manually
cannot be used
The camera title will not ap-
pear
The vertical phase cannot be
adjusted using the V PHASE
menu item
Drop in voltage of the power supply can
be considered. Check the length and thick-
ness of the power supply cable.
(
੬ Page 17)
Set the VIDEO/DC switch on the side of
unit according to the type of auto iris lens
used.
(
੬ Pages 20, 21)
Lower the gain using the AGC MODE
menu item.
SUPER HIGH LOW OFF
(MAX) (MIN)
Gain
( ੬ Page 29)
When using in an environment where there
are changes in the light source, set the
WHITE BALANCE menu item to ATW.
(
੬ Page 32)
Set the WHITE BALANCE menu item to
AWB or MANUAL.
(
੬ Page 32)
Set the CAMERA TITLE menu item to ON.
(
੬ Page 35)
When adjusting the vertical phase during
line lock, set the LL/INT switch on the back
of unit to LL.
(
੬ Page 35)
40
OTHERS
Speifications
Image pickup device : 1/3 type WDR digital image device
Number of effective pixeis : 380,000 pixels ((H) 720 × (V) 540)
Synchronizaton method : Internal,Line lock
Scanning frequency : U Type (H) 15.734 kHz, (V) 59.94 Hz
E type (H) 15.625 kHz, (V) 50.0 Hz
Resolution : 480 TV lines (H)
VIDEO OUT : Composite video signal
1 V(p-p), 75 (BNC)
Video S/N ratio : 48 dB (AGC OFF)
Minimum required illumination : 2.5 lx (50%, F1.2, AGC SUPER,
WDR MODE 2)
Lens mount : CS mount
Power supply : AC 24 V ` 50 Hz/60 Hz
DC 12 V
Power consumption : U type Approx. 5.7 W
E type Approx. 400 mA
Ambient temperature : –10°C to 50°C (operation)
0°C to 35°C (recommended)
Mass : 330 g
Accessory : Instructions ........................ 1
Ferrite core ........................ 1
Design and specifications are subject to change without notice.
41
Ⅵ External Dimensions (Unit: mm)
TRIPOD BASE
1/4-20UNC
MOUNTING HOLE
COLOR VIDEO CAMERA
U1-32
50
57.5
7.5
50
107
95
33
