Basic Installation Steps

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

: Remove existing speaker.

: Position new speaker and align with existing mounting

holes.

: Attach the positive (+) and negative (-) speaker terminals

(see FIGURE 2). Be sure to observe proper polarity when
connecting the wires (the striped wire is the negative
lead).

: If not using factory grilles, attach grille.

: Mount speaker (using factory hardware when possible).

: Reconnect negative battery terminal.

INSTALLATION

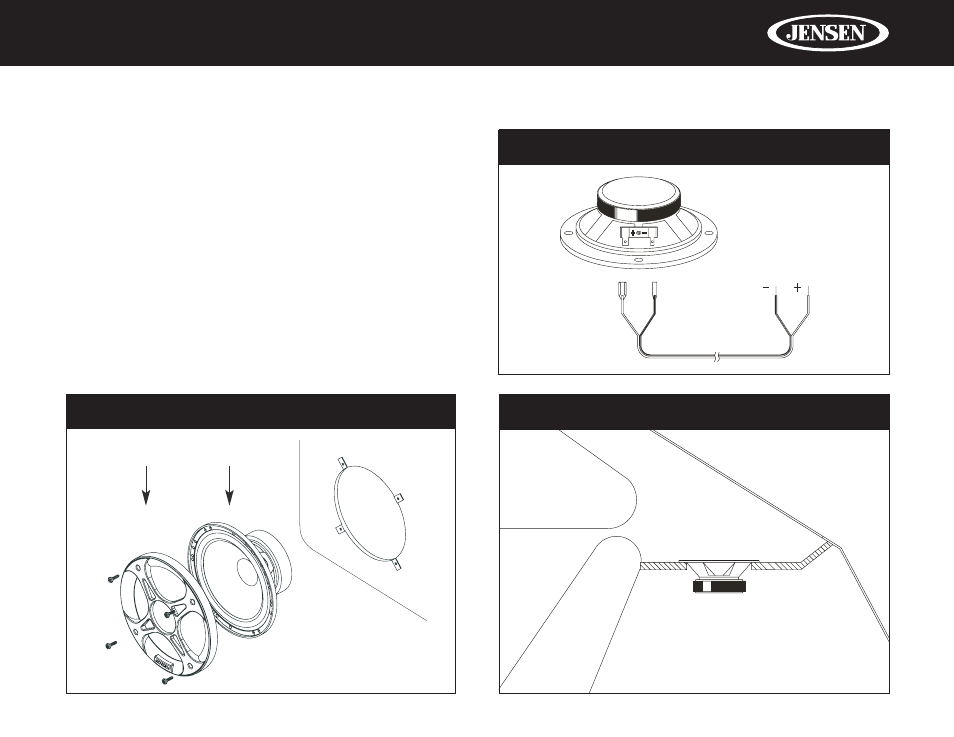

FIGURE 2 - CONNECTING SPEAKER WIRES

FIGURE 3 - REAR DECK INSTALLATION

FIGURE 1 - DOOR PANEL INSTALLATION

Speaker

Door Panel

3

Grille
