AV1 IN/OUT

AV2 IN

R

L

AUDIO

ANT. IN

RF OUT

OUT

1

6

5

4

3

2

4

ANT. IN Connector enables connection of aerial.

pg. 5

5

AV2 IN Connector enables connection of satellite
receiver or second recorder; input recordable when
"L-2" selected.

pg. 22, 24

6

RF OUT Connector enables connection to aerial
terminal of TV receiver.

pg. 5

1

Mains Power Cord supplies power to recorder.

pg. 5

2

AV1 IN/OUT Connector enables AV connection to
TV or second recorder; input recordable when "L-1"
selected.

pg. 5, 24

3

AUDIO OUT (L/R) Connectors enable
connection of audio cassette recorder, TV or second
video recorder for dubbing.

pg. 29

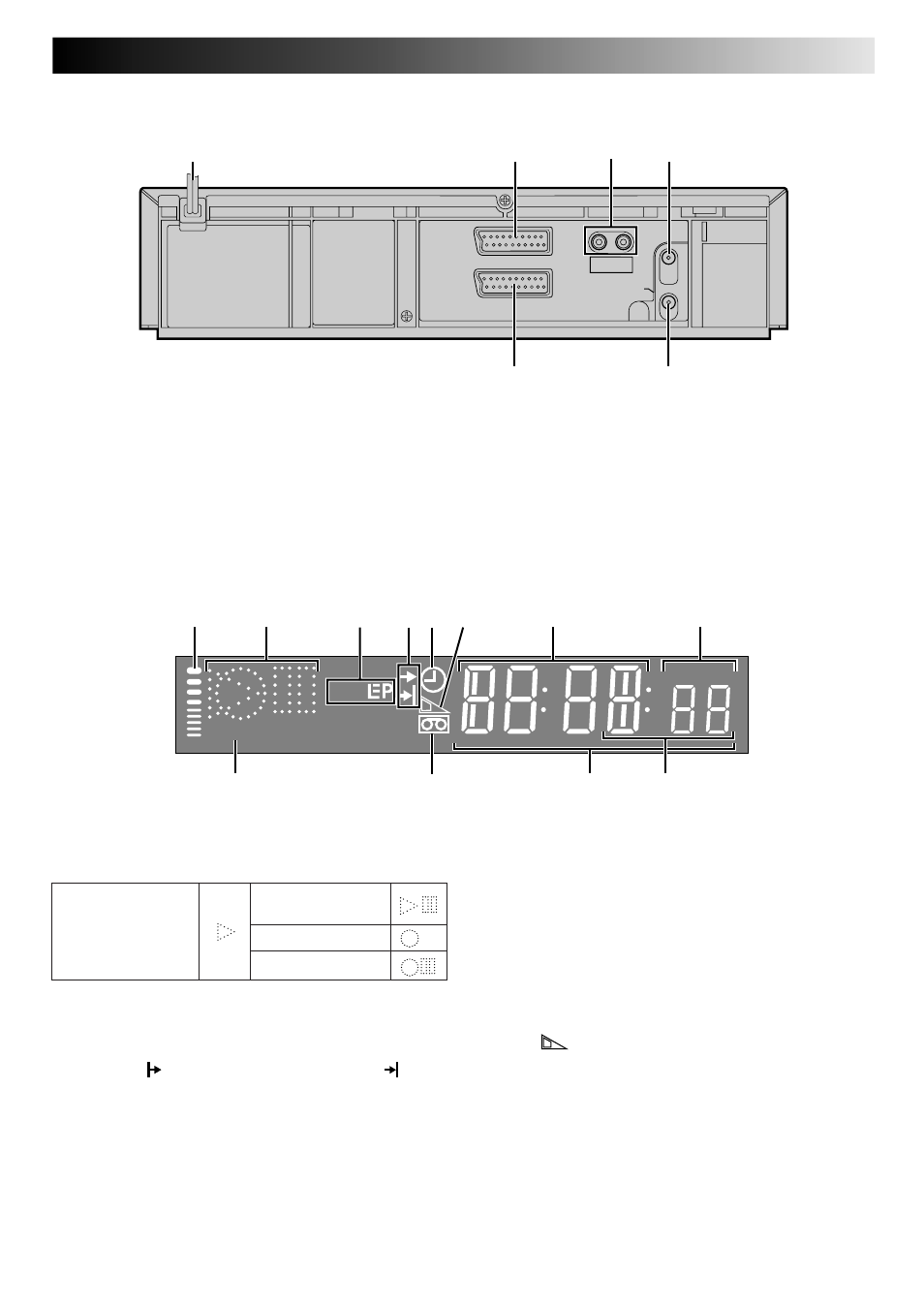

REAR VIEW

DISPLAY PANEL

1

B.E.S.T. Picture System Display lights from bottom to
top while B.E.S.T. is active.

pg. 18

2

Symbolic Mode Indicators

3

Tape Speed Indicators display mode of recording; light
during Record or Play mode.

pg. 10

* EP is only for NTSC playback.

4

Programme Time Indicators show the programme
start time ( ) and the programme stop time ( ) for
timer-recording.

pg. 14

5

"Timer" Indicator lights when ‰ has been pressed to
engage Timer mode.

pg. 13, 15

6

Tape Remaining Time Indicator displays time remaining
on tape when certain buttons are pressed.

pg. 11

7

Channel Display shows preset position where the
station currently being received is stored.
Clock Display shows current time.

pg. 7

8

Instant REVIEW Indicator blinks after timer-recording
and shows how many programmes have been timer-
recorded.

pg. 17

0

"Cassette Loaded" Mark lights once a cassette is
inserted; remains lit until cassette ejected or power
turned off.

9

PDC Indicator lights when PDC has been engaged
for timer recording.

pg. 13, 15

* VPS (Video Programme System) recording is not currently

available in the U.K. and not possible with this recorder.

!

Counter shows time elapsed since playback or
recording began.
With

displayed, shows time remaining from

current tape position to end of tape (

pg. 11).

Counter, Preset Position*, Clock and Tape Remaining
Time Display appear alternately when DISPLAY
(or – –:– –) is pressed.

* Preset Position is not displayed during playback.

@

Mode shows external input mode selected (L-1 or L-2).

STILL:
SLOW:

RECORD:

RECORD PAUSE:

PLAY:
FF/REW VARIABLE
SHUTTLE SEARCH:

REVIEW

SP

VPS/PDC

9

0

!

@

2

7

8

1

3

5 6

4

VPS/PDC
