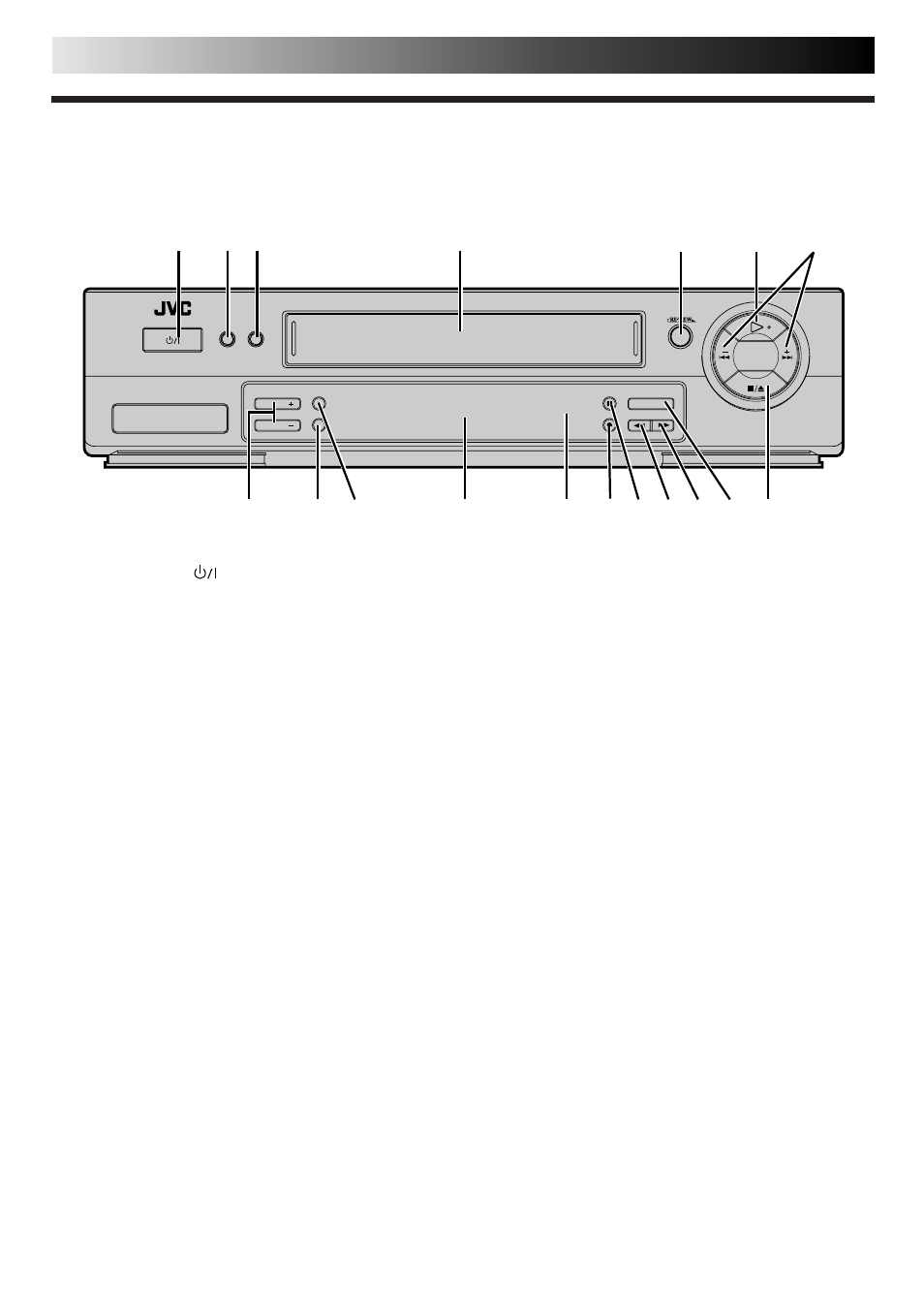

FRONT VIEW
SUBSIDIARY INFORMATION (cont.)
DISPLAY
REC LINK
COUNTER RESET
TV PROG
TV PROG
TIMER
STANDBY/ON
SP/LP
PUSH JOG
1 2 3
# & ^ % $ ! 8 0 9
4 5 6 7
* @
1 STANDBY/ON Button turns recorder on/off
(loading a cassette also turns power on).
2 TIMER Button engages timer standby mode.
੬
pg. 13, 15
3 SP/LP Button selects tape speed.
੬
pg. 10
4 Cassette Loading Slot is where cassette is
inserted; door closes, "cassette loaded" indicator
lights up on front display panel.
5 REVIEW Button "reviews" timer-recorded
programme.
੬
pg. 17
6 PLAY Button plays back tape ੬ pg. 8; cancels
Pause, Still, Slow, Search modes.
੬
pg. 9
7 PUSH JOG ™£ Button initiates functions
such as Index Search
੬
pg. 17, variable-speed
search, frame by frame playback.
੬
pg. 9
8 TV PROG +/– Buttons select a preset position.
੬
pg. 10
9 REC LINK Button enables/disables the Auto
Satellite Prog Rec mode.
੬
pg. 23
0 COUNTER RESET Button resets counter to
0:00:00.
੬
pg. 11
! Display Panel provides clear view of various
displays and indicators.
੬
pg. 45
@ Infrared Beam Receiving Window is where
remote control should be aimed when in use.
# RECORD Button starts regular recording (press
once), Instant Timer Recording (press twice);
sets duration of ITR.
੬ pg. 10, 11
$ PAUSE Button stops tape temporarily during
recording
੬ pg. 10; stops tape temporarily
during playback; plays back frame by frame
with each additional press.
੬ pg. 9
% Rewind [REW] Button rewinds the tape
੬ pg. 8;
initiates high-speed reverse search.
੬ pg. 9
^ Fast Forward [FF] Button fast-forwards tape
੬
pg.
8; initiates high-speed forward search.
੬
pg. 9
& DISPLAY Button switches display between
clock time, tape remaining time, counter
readings, preset position*.
੬
pg. 11
* Preset position is not displayed during playback.
* STOP/EJECT Button stops tape; ejects tape
during Stop mode.
੬
pg. 8
