22
This facility allows you to record automatically a satellite
programme which is timer-programmed on your external
satellite receiver. Connect a satellite receiver to the recorder's
AV2 IN connector and programme the timer on the satellite
receiver; the recorder starts recording when the signals input
from the satellite receiver to the AV2 IN connector, and when
there is no input signals the recorder stops recording and the
power shuts off.
Automatic
Satellite
Programme
Recording
AV1 IN/OUT
AV2 IN
R L
AUDIO
ANT. IN
RF OUT
OUT
DECODER VCR TV
EXT.2 EXT.1
NOTES:

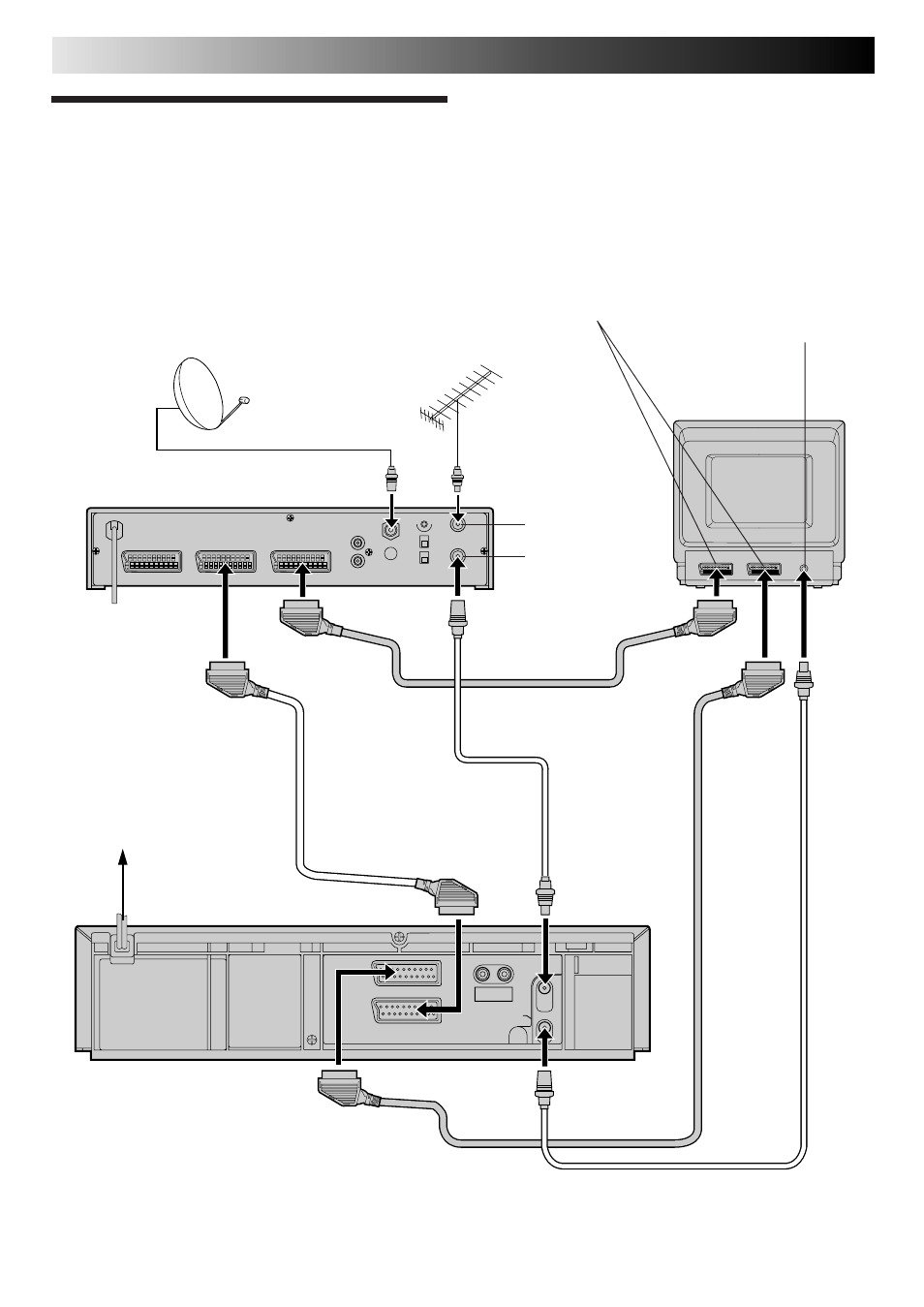

● When connecting your recorder to a TV equipped with 21-pin AV input connectors (SCART), follow the illustration above using the
cables shown in grey.
● For details, check your satellite receiver’s instruction manual.
Mains outlet
TV Aerial cable
Aerial connector
Satellite Receiver Unit
Satellite Cable
Outdoor Unit
Aerial
Back of TV
21-pin AV input
connectors (SCART)
RF OUT
ANT. IN
Back of Recorder
ADVANCED OPERATIONS (cont.)
