Page 14

Notes:

• These connections are examples.

• After you are finished connecting your devices, plug the power cord into the nearest power

outlet and turn on the TV.

• If you follow these diagrams and the television does not work properly, contact your local

cable operator.

• To connect a DVD player, see VCR Connection. A DVD player is optional

• If you have a satellite television system, refer to the satellite TV manual.

Used to connect an external
antenna or cable TV system to your
TV.

Used to make video connections
with S-Video VCRs, Camcorders
and DVD players.

Coaxial Cables

S-Video Cable

Used to connect audio/video
devices like VCRs, DVD players,
stereo amplifiers, game consoles,
etc.

Component Cables

Composite Cables

Audio Cables

Quick Setup

Step 2 – Connecting Your Devices

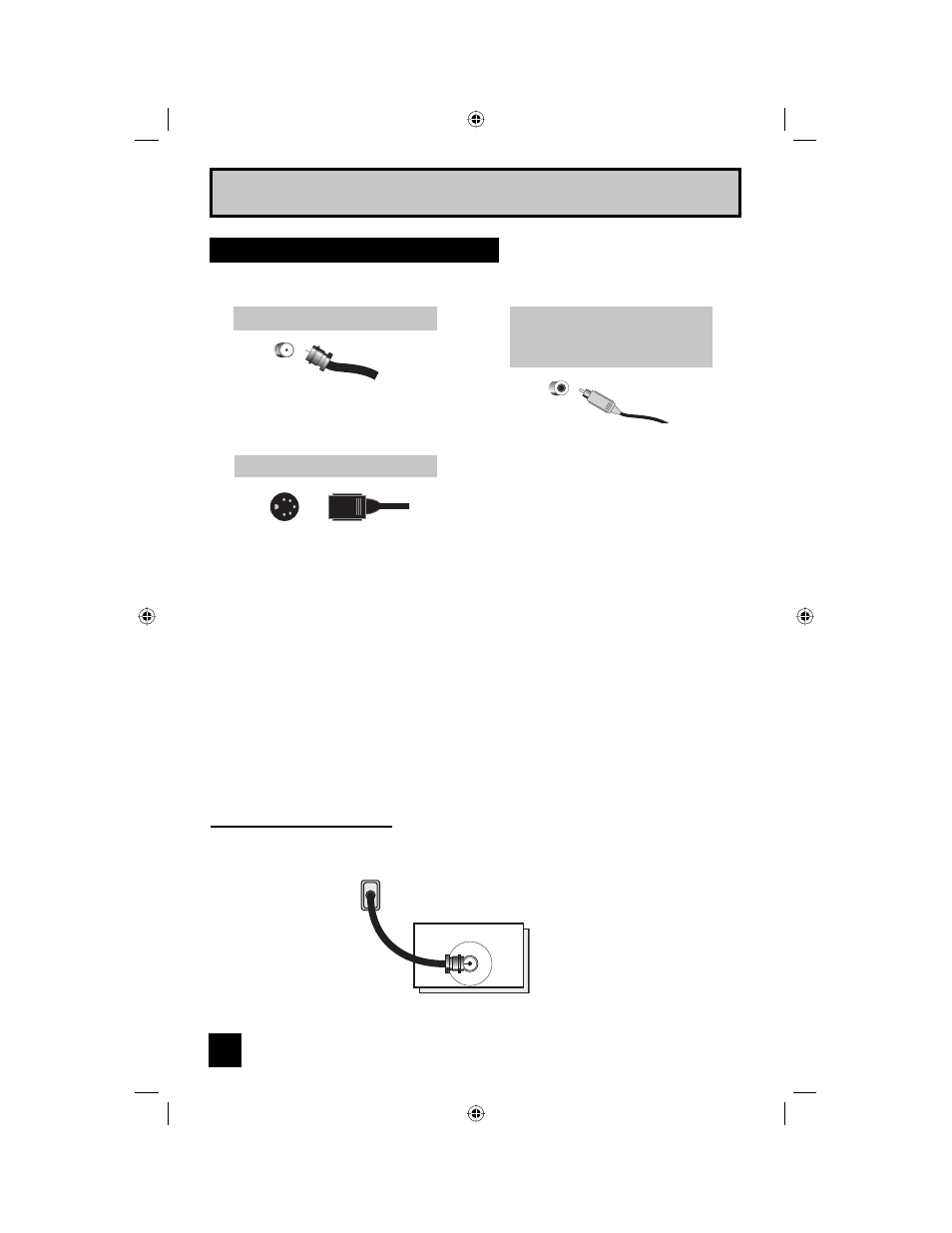

To make these connections, you will use plugs like the ones illustrated below.

No VCR Connection

TV Rear Panel

Coaxial Cable

Cable or Antenna

Output

75Ω

(VHF/UHF)
