Operator’s Manual
Operation
WaRNING: dO NOT OPeRaTe aPPlIaNCe If THe SMell
Of NaTuRal GaS IS PReSeNT. exTINGuISH all
flaMe aNd deTeRMINe SOuRCe Of GaS
BefORe PROCeedING. dO NOT IGNITe THe
aPPlIaNCe uNTIl THe GaS leaK HaS BeeN
fOuNd aNd Sealed.
CauTION: alWayS SHuT Off NaTuRal GaS WHeN THe
aPPlIaNCe IS NOT IN uSe.
lIGHTING GRIll
. The appliance must be assembled as per the assembly
instructions.
. Check that your gas line is properly connected.
. Check that there are no gas leaks in the gas supply system. See
“Leak Testing”.
4. Check that the venturi tubes are properly located over the gas valve
orifices.
5. Check that both Main Burner and Side Burner ignition wires are
connected.
6. Read carefully all instructions contained on the information plate
attached to the grill.
WaRNING: OPeN lId BefORe lIGHTING.
7. Set control knobs to “OFF” and turn on the gas supply.
8. Main Burner:
a. Check that the battery has been installed into the electronic
ignition.
b. Push and turn one main burner control knob to “Hi”.
c. Push and hold down the ignitor button or match light. Burner
should ignite within 5 seconds.
Note: To light burner with a match follow steps 1 thru 7 above.
d. Insert lighted match through lighting hole located at the
bottom right of the grill housing.
e. Push and turn right control knob to “Hi”.
f. Burner should ignite within 5 seconds.
g. After the right burner is lit, push and turn left control knob to “Hi”.
Left burner will ignite automatically.
Side Burner:
a. Push and turn side burner control knob to “Hi”.
b. Push or rotate the ignitor knob 3 or 4 times.
c. Burner should ignite within 5 seconds.
Note: To light burner with a match follow steps 1 thru 7 above.
d. Apply lighted match to burner ports.
e. Push in the control side burner knob and turn to “Hi”.
f. Burner should ignite within 5 seconds.

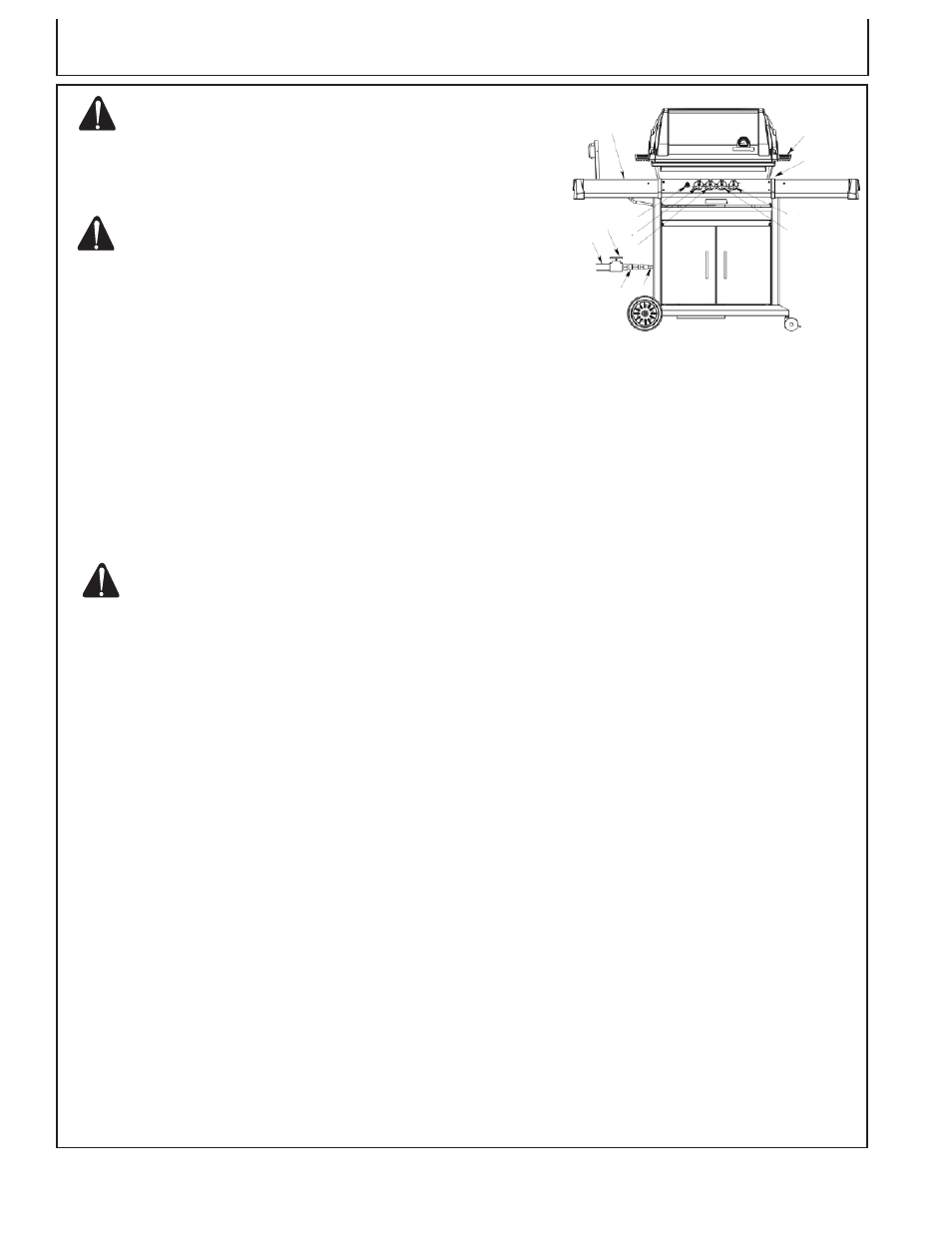

A. LEFT BURNER CONTROL
B. RIGHT BURNER
CONTROL
C. SIDE BURNER CONTROL
D. REAR BURNER CONTOL
E. IGNITOR
F. MANUAL LIGHTING HOLE
G. HANDLE
H. SIDE BURNER
I. SHUTOFF VALVE
J. QUICK DISCONNECT
cOuPlING
K. GAS SuPPlY PIPING
l. GAS SuPPlY HOSE
a
C
e
J l
K
I
H G
f
d
B
