Quick Setup
Notes:
• Green, blue and red are the most common colors for DVD cables. Some models may vary
colors. Please consult the user’s manual for your DVD player for more information.
• Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete
one set of connections (DVD or audio output) before starting the other to avoid accidentally
switching the cables.
• You may also connect the DVD player to Input 1.
TV Rear Panel
Cable or Antenna
Output
Coaxial Cable
(Attachment)
VCR
DVD Player
OR
INPUT
2
INPUT
3
INPUT
1
DIO
Y
Pr
Pb
Y
Pr Pb
VIDEO
INPUT R
R - AUDIO -
L
S-VIDEO
OVER
VIDEO
VIDEO
R - AUDIO - L
R - AUDIO - L
S-VIDEO
OVER
IN
OUT
IN
OUT
V L R
Y
P
B
P
R
OUT
AUDIO OUT
R L
Green
Blue
Red

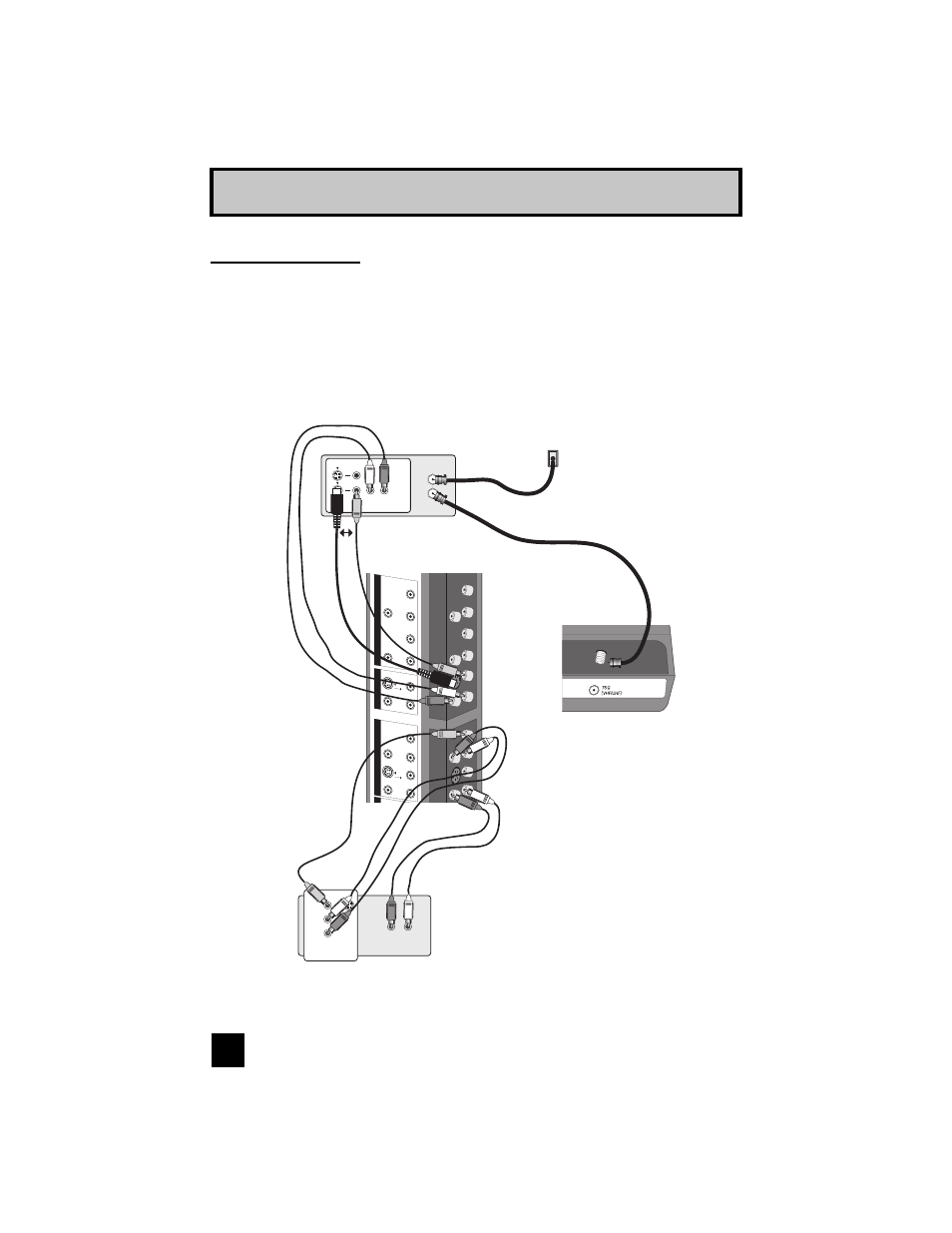

VCR Connection
Note:
• If this connection setup does not work for you, try the connection setup on page 15.
Diagram #1
