9 typical wiring diagram (208/230-1-60 power, Supply) acp models – Johnson Controls ACPU024 THRU 060 User Manual

Page 26

background image

279815-PTG-D-0408

26

Johnson Controls Unitary Products

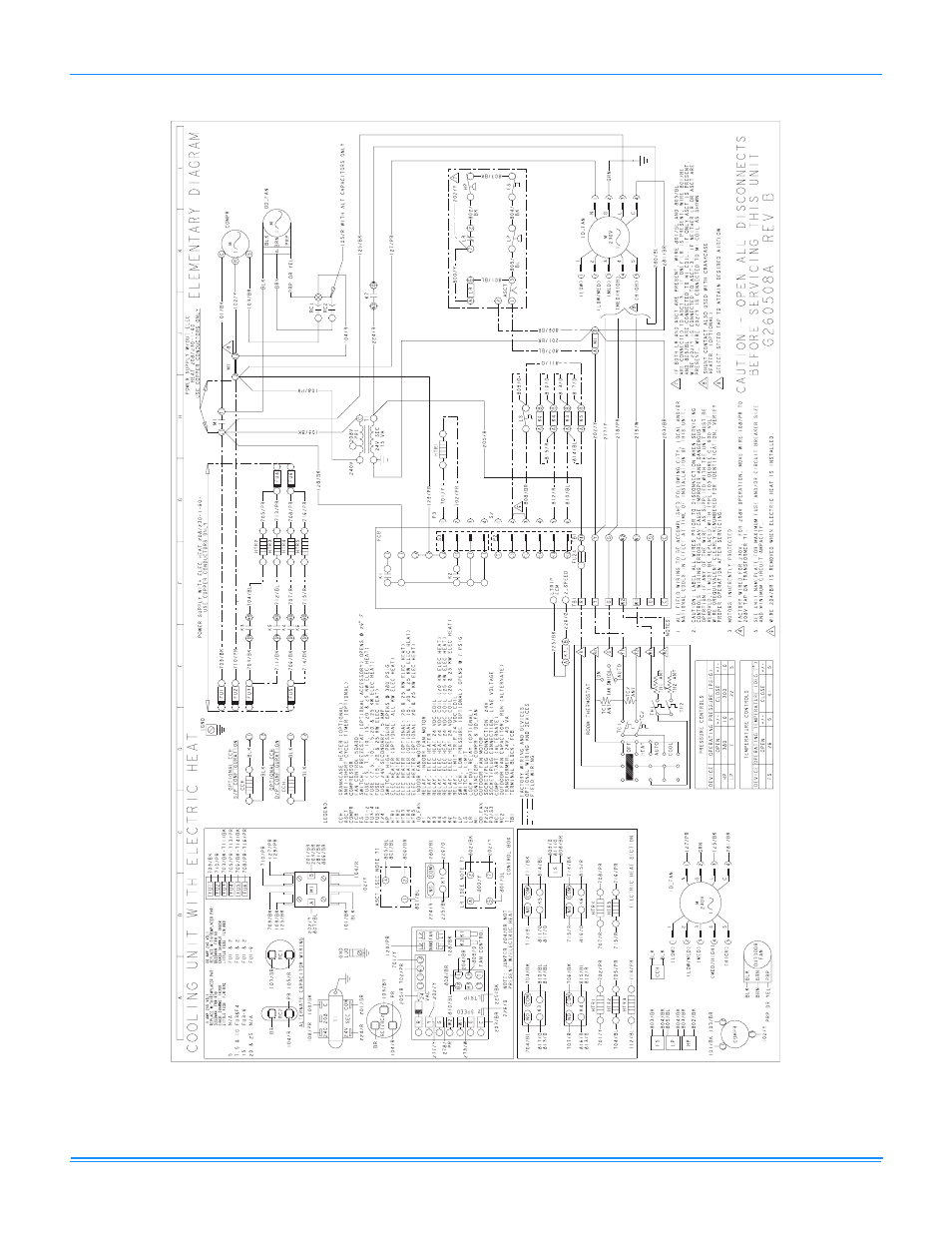

FIGURE 9 - TYPICAL WIRING DIAGRAM (208/230-1-60 POWER SUPPLY) ACP MODELS
