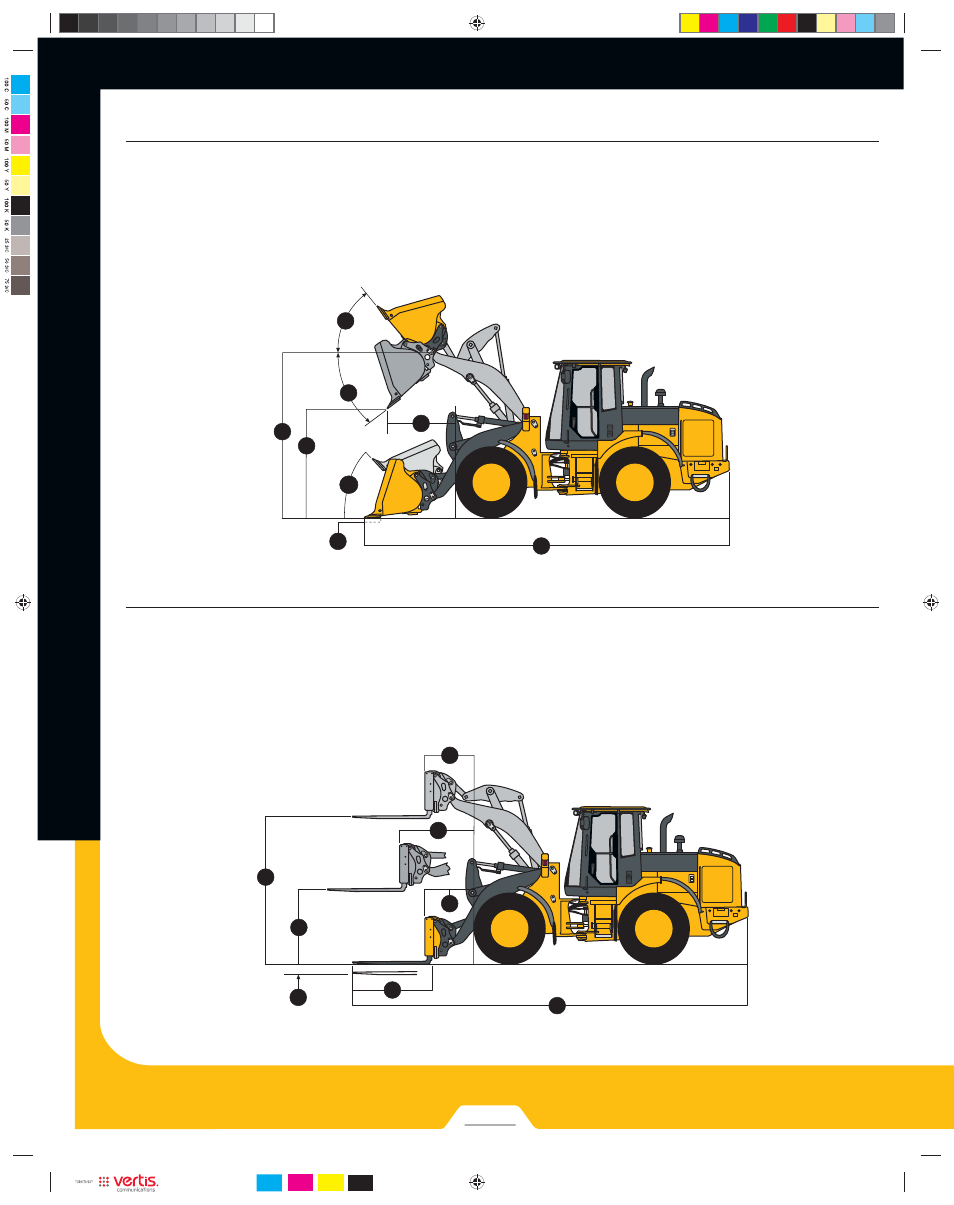

Dimensions with Quick-Coupler
and Hook-On Bucket
524K Z-BAR / HIGH-LIFT
Z-Bar High-Lift
A Dump Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . ▲ (see page 25) ▲ (see page 26)
B Dump Reach . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲ (see page 25) ▲▲ (see page 26)
C Maximum Digging Depth . . . . . . . . . . . . . . . . . . . . 146 mm (5.7 in.) 226 mm (10.3 in.)
D Height to Hinge Pin, Fully Raised . . . . . . . . . . . . . . 3.77 m (12 ft. 5 in.) 4.12 m (13 ft. 6 in.)
E Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲▲ (see page 25) ▲▲▲ (see page 26)
F Maximum Rollback, Boom Fully Raised . . . . . . . . . 54 deg. 48 deg.
G Maximum Bucket Angle, Fully Raised . . . . . . . . . . 48 deg. 48 deg.
H Maximum Rollback at Ground Level . . . . . . . . . . . . 40 deg. 45 deg.
524K Z-BAR AND HIGH-LIFT LOADERS WITH QUICK-COUPLER AND HOOK-ON BUCKET
Dimensions with Quick-Coupler and Hook-On Construction Fork
Z-Bar High-Lift
A Reach, Fully Raised . . . . . . . . . . . . . . . . . . . . . . . . 0.80 m (31.3 in.) 0.81 m (31.9 in.)
B Fork Height, Fully Raised . . . . . . . . . . . . . . . . . . . . 3.55 m (11 ft. 8 in.) 3.90 m (12 ft. 9 in.)
C Maximum Reach, Fork Level . . . . . . . . . . . . . . . . . 1.54 m (5 ft. 1 in.) 1.80 m (5 ft. 11 in.)
D Maximum Reach, Fork Height . . . . . . . . . . . . . . . . 1.72 m (5 ft. 8 in.) 1.72 m (5 ft. 8 in.)
E Reach, Ground Level . . . . . . . . . . . . . . . . . . . . . . . 0.94 m (3 ft. 1 in.) 1.27 m (4 ft. 2 in.)
F Depth Below Ground . . . . . . . . . . . . . . . . . . . . . . . 16 mm (0.6 in.) 95 mm (3.7 in.)
G Tine Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲ (see page 26) ▲ (see page 26)
H Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲ (see page 26) ▲▲ (see page 26)
524K Z-BAR AND HIGH-LIFT LOADERS WITH QUICK-COUPLER AND HOOK-ON CONSTRUCTION FORK
PAGES
24–25
A
G
F
H
B
C
E
D
E
H
C
D
B
A
F
G
