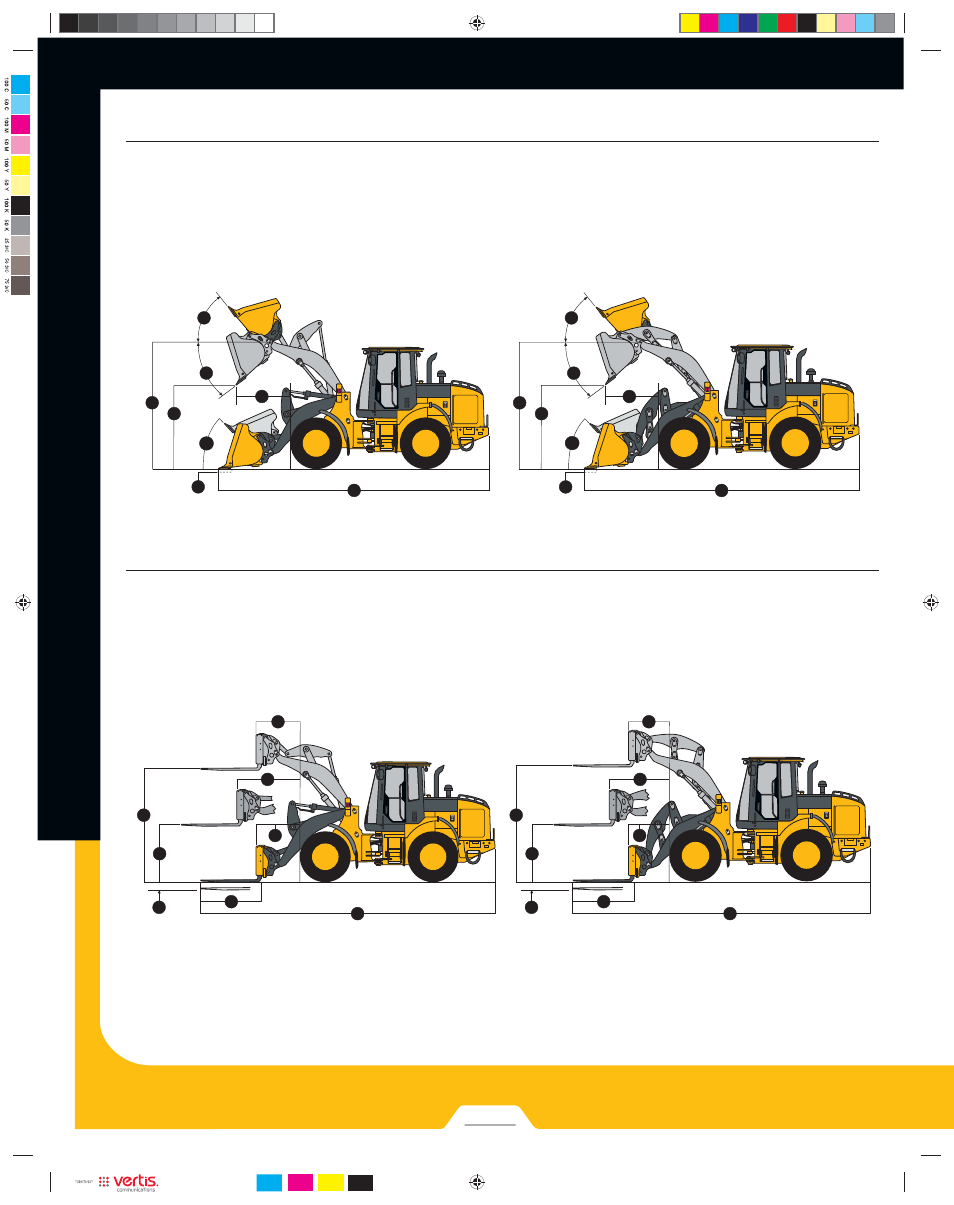

Dimensions with Quick-Coupler
and Hook-On Bucket
444K Z-BAR / HIGH-LIFT / POWERLLEL
Z-Bar High-Lift Powerllel
A Dump Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . ▲ (see page 19) ▲ (see page 20) ▲ (see page 20)
B Dump Reach . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲ (see page 19) ▲▲ (see page 20) ▲▲ (see page 20)
C Maximum Digging Depth . . . . . . . . . . . . . . . . . . . . 139 mm (5.5 in.) 148 mm (5.8 in.) 119 mm (4.7 in.)
D Height to Hinge Pin, Fully Raised . . . . . . . . . . . . . . 3.60 m (11 ft. 10 in.) 3.98 m (13 ft. 1 in.) 3.67 m (12 ft. 0 in.)
E Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲▲ (see page 19) ▲▲▲ (see page 20) ▲▲▲ (see page 20)
F Maximum Rollback, Boom Fully Raised . . . . . . . . . 55 deg. 49 deg. 51 deg.
G Maximum Bucket Angle, Fully Raised . . . . . . . . . . 42 deg. 45 deg. 50 deg.
H Maximum Rollback at Ground Level . . . . . . . . . . . . 42 deg. 39 deg. 42 deg.
444K Z-BAR AND HIGH-LIFT LOADERS WITH 444K POWERLLEL LOADER WITH
QUICK-COUPLER AND HOOK-ON BUCKET QUICK-COUPLER AND HOOK-ON BUCKET
Dimensions with Quick-Coupler and Hook-On Construction Fork
Z-Bar High-Lift Powerllel
A Reach, Fully Raised . . . . . . . . . . . . . . . . . . . . . . . . 0.86 m (34 in.) 0.86 m (34 in.) 0.86 m (34 in.)
B Fork Height, Fully Raised . . . . . . . . . . . . . . . . . . . . 3.44 m (11 ft. 3 in.) 3.79 m (12 ft. 5 in.) 3.51 m (11 ft. 6 in.)
C Maximum Reach, Fork Level . . . . . . . . . . . . . . . . . 1.57 m (5 ft. 2 in.) 1.84 m (6 ft. 0 in.) 1.63 m (5 ft. 4 in.)
D Maximum Reach, Fork Height . . . . . . . . . . . . . . . . 1.69 m (5 ft. 6 in.) 1.70 m (5 ft. 7 in.) 1.73 m (5 ft. 8 in.)
E Reach, Ground Level . . . . . . . . . . . . . . . . . . . . . . . 0.97 m (3 ft. 2 in.) 1.31 m (4 ft. 4 in.) 0.96 m (3 ft. 2 in.)
F Depth Below Ground . . . . . . . . . . . . . . . . . . . . . . . 35.6 mm (1.4 in.) 35.6 mm (1.4 in.) 2 mm (0.1 in.)
G Tine Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲ (see page 20) ▲ (see page 20) ▲ (see page 20)
H Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲ (see page 20) ▲▲ (see page 20) ▲▲ (see page 20)
444K Z-BAR AND HIGH-LIFT LOADERS WITH 444K POWERLLEL LOADER WITH
QUICK-COUPLER AND HOOK-ON CONSTRUCTION FORK QUICK-COUPLER AND HOOK-ON CONSTRUCTION FORK
PAGES
18–19
E
H
C
D
B
A
F
G
E
H
C
D
B
A
F
G
A
G
F
H
B
C
E
D
A
G
F
H
B
C
E
D
