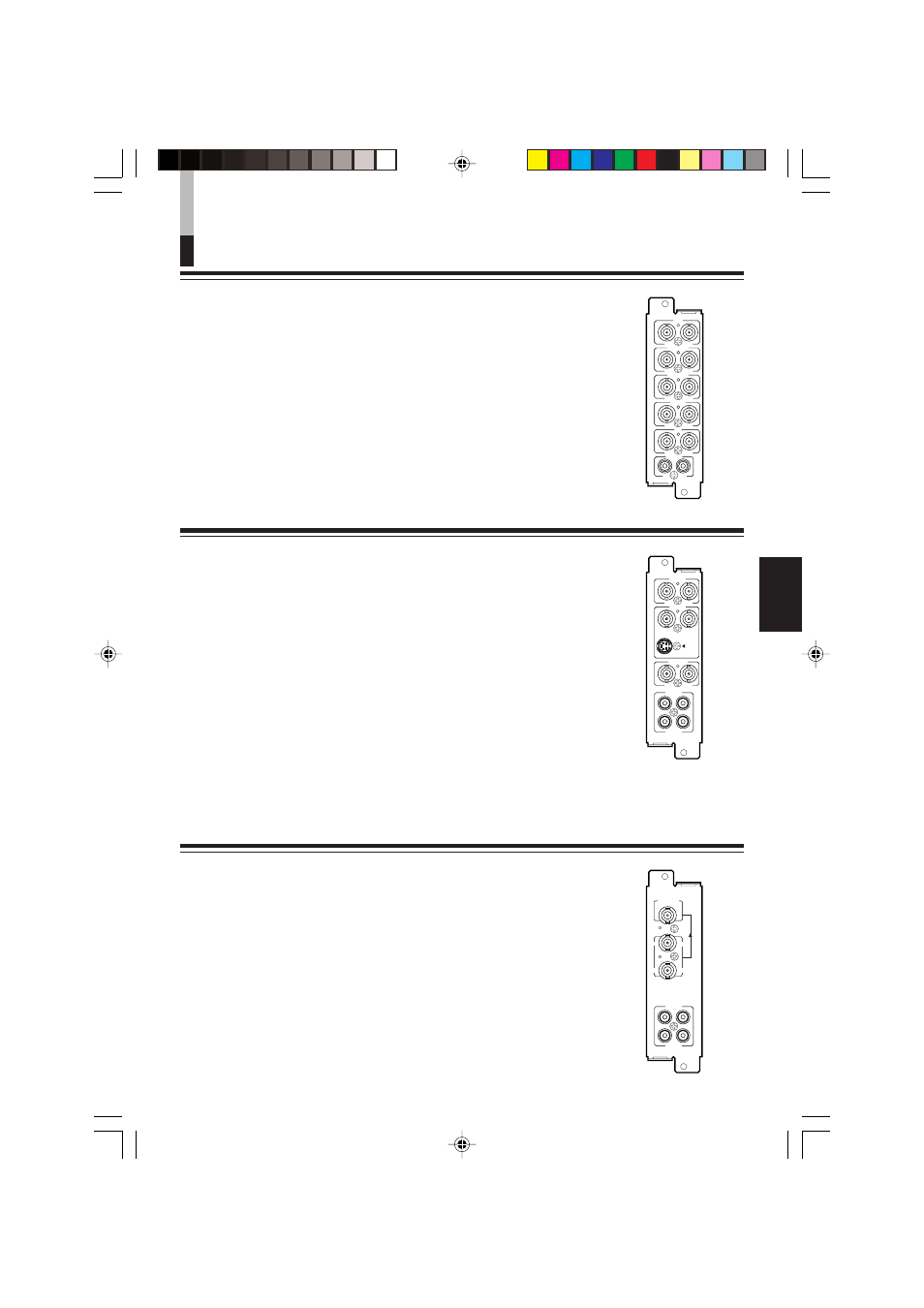

ENGLISH
3
ⅥIF-C01SDG: SDI INPUT CARD
Type
: TM-H Series and DT-V Series monitors
Inputs/Outputs
: Image input: Digital input (SDI 1/SDI 2): 2 lines, BNC connector x 2
(0.8 Vp-p, 75
Ω)
Digital output (SWITCHED OUT): 1 line, BNC connector x 1
(0.8 Vp-p, 75
Ω)
Audio signal: 2 lines (monaural), RCA pin x 4 (0.5 V(rms),
high impedance)
* The input (IN) and output (OUT) terminals are bridge-connected.
Format
: D1 serial component digital, 525/625 auto switching (compliant to
SMPTE259M)
Required slots
: 1
Power consumption : 7 V DC, 0.65 A
Weight
: 0.5 k
g
Dimensions
(W x H x D)
: 43 mm x 154.5 mm x 191.9 mm
ⅥIF-C01PNG: VIDEO INPUT CARD
Type
: DT-V Series monitors
Inputs/Outputs
: Image input: VIDEO 1/VIDEO 2: 2 lines, BNC connector x 4
(1 Vp-p, 75
Ω)
* NTSC and PAL compatible.
Synchronised signal (EXT.SYNC): 1 line, BNC connector x 2
(0.3 V – 4.0 Vp-p, 75
Ω)
* The input (IN) and output (OUT) terminals are bridge-connected.
Auto termination.
Y/C signal: 1 line, input only, mini-DIN 4-pin connector x 1 (Y/C
input has a priority to a VIDEO 2 input) (Y: 1 Vp-p,
75
Ω, C: 0.286 V (NTSC (3.58 MHz))/0.3 V (PAL
(4.43 MHz)), 75
Ω)
Audio signal: 2 lines (monaural), RCA pin x 4 (0.5 V(rms), high
impedance)
* The input (IN) and output (OUT) terminals are bridge-connected.
Required slots
: 1
Power consumption : 14 V DC, 0.25 A
7 V DC, 0.15 A
Weight
: 0.5 k
g
Dimensions
(W x H x D)
: 43 mm x 154.5 mm x 191.9 mm
* EXT SYNCH cannot be locked with VBS for the BB signal.
SPECIFICATIONS
ⅥIF-C01COMG: COMPONENT/RGB INPUT CARD
Type
: TM-H Series and DT-V Series monitors
Inputs/Outputs
: Image input: Component (Y, P
B
/B-Y, P
R
/R-Y) or RGB: 1 line, BNC
connector x 6
(Y: 1 Vp-p, 75
Ω/P
B
, B-Y, P
R
, R-Y, R, G, B: 0.7 Vp-p, 75
Ω)
Synchronised signal (HD/C
S
, VD) : 1 line, BNC connector x 4
(0.3 V – 4.0 Vp-p, 75
Ω)
* The input (IN) and output (OUT) terminals are bridge-connected.
Auto termination.
Audio signal: 1 line (monaural), RCA pin x 2 (0.5 V(rms), high
impedance)
* The input (IN) and output (OUT) terminals are bridge-connected.
Required slots
: 1
Power consumption : 14 V DC, 0.02 A
Weight
: 0.5 k
g
Dimensions
(W x H x D)
: 43 mm x 154.5 mm x 191.9 mm
B/P
B
/B-Y
G / Y
OUT
IN
OUT
IN
R/P
R
/B-Y
OUT
IN
VD
OUT
IN
HD/C
S
OUT
IN
OUT
IN
AUDIO
OUT
IN
VIDEO 1
OUT
IN
AUDIO 2
AUDIO 1
OUT
IN
VIDEO 2
OUT
Y/C IN
IN
OUT
IN
EXT.SYNC
AUDIO 2
AUDIO 1
OUT
IN
SWITCHED
OUT
SDI 1
SDI 2
IN
IN
