5
English

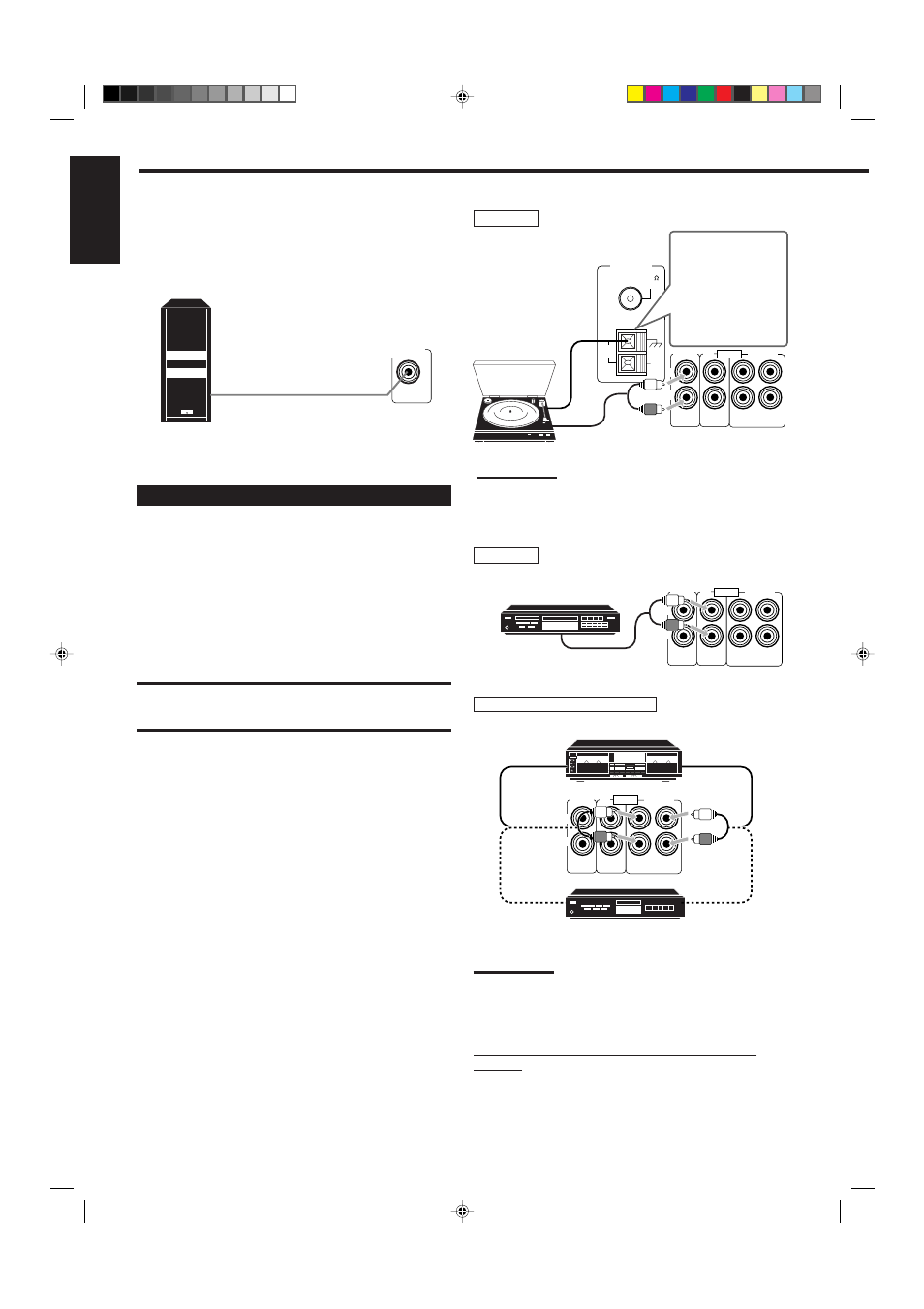

Connecting the subwoofer speaker
You can enhance the bass by connecting a subwoofer.
Connect the input jack of a powered subwoofer to the
SUBWOOFER OUT jack on the rear panel, using a cable with RCA
pin plugs.
SUBWOOFER
OUT
Powered subwoofer
Connecting Audio/Video Components
You can connect the following audio/video components to this
receiver using cables with RCA pin plugs (not supplied). Refer also
to the manuals supplied with your components.
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, and the red plug to the
audio right jack.
Audio component connections
CAUTION:
If you connect a sound-enhancing device such as a graphic equalizer
between the source components and this receiver, the sound output
through this receiver may be distorted.
AUDIO PHONO TAPE/MD CD
OUT
(REC)
IN
(PLAY)
L
R
ANTENNA
AM
EXT
AM
LOOP
FM 75
COAXIAL
Turntable
If an earth cable is
provided for your
turntable, connect the
cable to the ground
terminal (
H ) of the
ANTENNA terminals
on the rear panel.
Turntable
To audio output
Note:
Any turntables incorporating a small-output cartridge such as an MC
(moving-coil type) must be connected to this receiver through a
commercial head amplifier or step-up transformer. Direct connection
may result in insufficient volume.
To audio output
CD player
Note:
You can connect either a cassette deck or an MD recorder to the
TAPE/MD jacks. When connecting an MD recorder to the TAPE/MD
jacks, change the source name, which will be shown on the display
when selected as the source, to “M D.” See page 11 for details.
If your audio components have a COMPU LINK-3
terminal
See also page 21 for detailed information about the connection and
the COMPU LINK-3 remote control system.
To audio input
Cassette deck or MD recorder
AUDIO PHONO TAPE/MD CD
OUT
(REC)
IN
(PLAY)
L
R
To audio output
Cassette deck
MD recorder
CD player
To audio input
AUDIO PHONO TAPE/MD CD
OUT
(REC)
IN
(PLAY)
L
R
To audio output
