22
English
Operating JVC’s Audio/Video Components
You can operate JVC’s audio and video components with this receiver’s remote control, since control signals for JVC
components are preset in the remote control.
IMPORTANT:
To operate JVC’s audio components using this remote control:
• You need to connect JVC audio components through the COMPU
LINK-3 (SYNCHRO) jacks (see page 21) in addition to the
connections using cables with RCA pin plugs (see page 5).
• Aim the remote control directly at the remote sensor on the
receiver.
• If you use the buttons on the front panel to choose a source, the
remote control will not operate that source. To operate a source
with the remote control, the source must be selected using buttons
on the remote control.
• Refer also to the manuals supplied with your components.
Sound control section (Amplifier)
After pressing SOUND CONTROL, you can perform the following
operations:
SURROUND : Selects the DSP modes.
CENTER – / + : Adjusts the center speaker output level for the
Surround/DVD MULTI playback modes.
REAR•L – / + : Adjusts the left/right rear speaker output level for
the DSP modes.
Adjusts the left rear speaker output level for the
DVD MULTI playback mode.
REAR•R – / + : Adjusts the right rear speaker output level for the
DVD MULTI playback mode.
DELAY : Selects the delay time of the rear speaker sound.
(Only works when “PROLOGIC” is selected.)
EFFECT : Selects the effect level for the DSP modes.
TEST : Turns on or off the test tone output for the
Surround mode.
Note:
After adjusting sounds, press the corresponding source selecting
button or CD-DISC to operate your target source by using the 10
keys; otherwise, the 10 keys cannot be used for operating your target
source.
Cassette deck
After pressing TAPE/MD, you can perform the following operations
on a cassette deck:
3: Starts playing.
1 1 1 1 1: Fast winds the tape from right to left.
¡ ¡ ¡ ¡ ¡: Fast winds the tape from left to right.
7:
Stops operations.
8: Pauses playing. To release it, press 3.
Note:
To operate the cassette deck or MD recorder using the COMPU LINK
remote control system, set the source name correctly. (See page 11.)
CD player
After pressing CD, you can perform the following operations on the
CD player:
3:
Starts playing.
4 4 4 4 4: Returns to the beginning of the current (or
previous) track.
¢ ¢ ¢ ¢ ¢: Skips to the beginning of the next track.
7: Stops playing.
8: Pauses playing. To release it, press 3.
1 – 10, +10 : Selects a track number directly.
For track number 5, press 5.
For track number 15, press +10, then 5.
For track number 20, press +10, then 10.
Tuner
After pressing FM/AM, you can perform the following operations:
FM/AM : Alternates between FM and AM.
1 – 10, +10 : Selects a preset channel number directly.
For channel number 5, press 5.
For channel number 15, press +10, then 5.
For channel number 20, press +10, then 10.
4
1
7
4
1

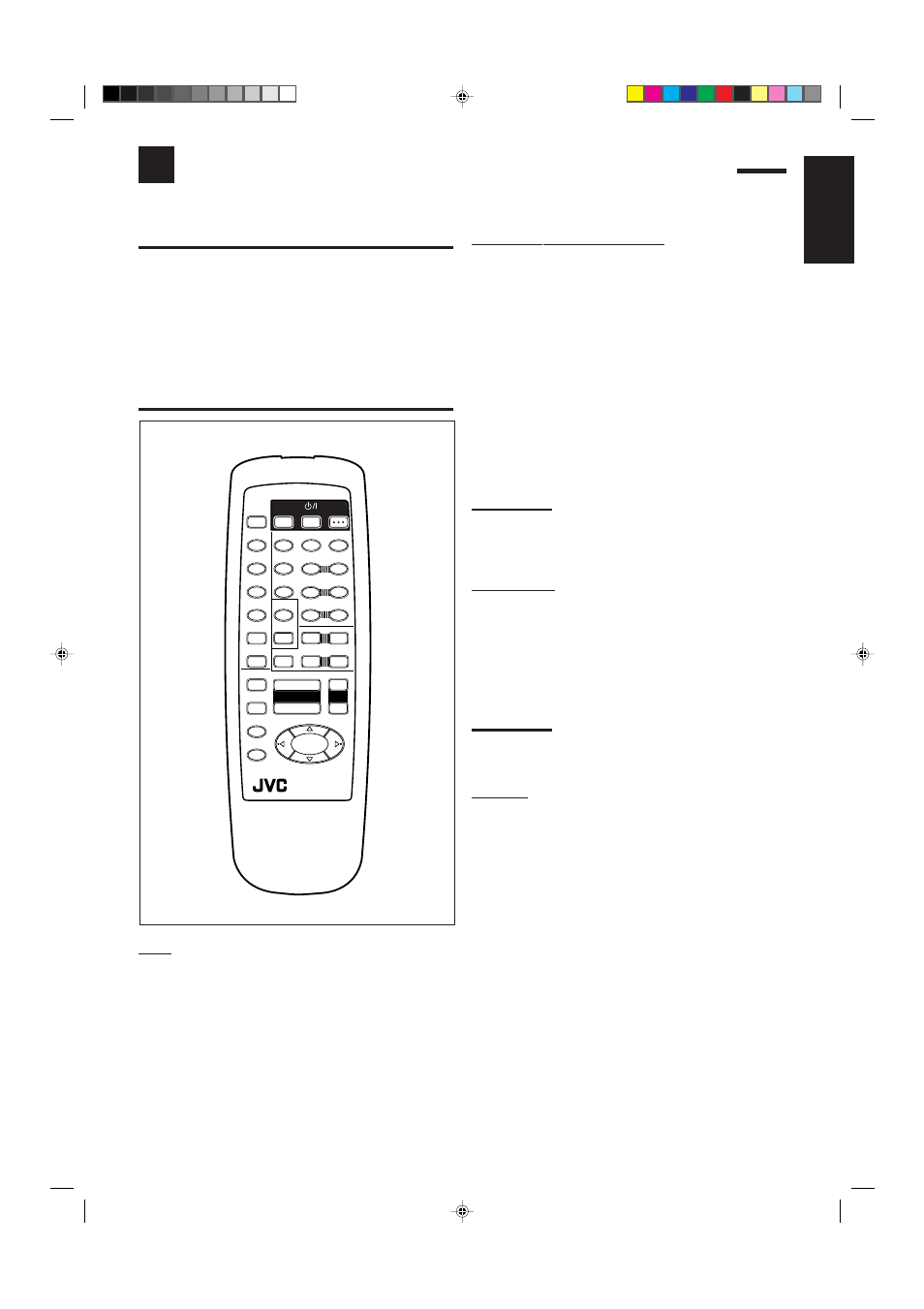

RM-SR558XU REMOTE CONTROL
TAPE/MD
FM/AM
VCR
DVD
SOUND
CONTROL
SLEEP
8
3 2 1 5
SURROUND TEST DELAY
6 5 4
EFFECT – CENTER + 5
9 8 7/P
– REAR•L + 5
TV VCR AUDIO CD
+10 10
– REAR•R +
MENU
ENT
5
+
TV CH
–
TV/VIDEO PHONO
CD-DISC
– +
TV VOL. DVD MULTI
– –
ONE TOUCH
OPERATION
VCR CH
+ +
MUTING VOLUME
£
