4
English
RIGHT LEFT
REAR
SPEAKERS
CENTER
SPEAKER
Turn the loop until you have the best reception.
Notes:
• Make sure the antenna conductors do not touch any other
terminals, connecting cords and power cord. This could cause poor
reception.
• If reception is poor, connect an outdoor single vinyl-covered wire to
the AM EXT terminal. (Keep the AM loop antenna connected.)

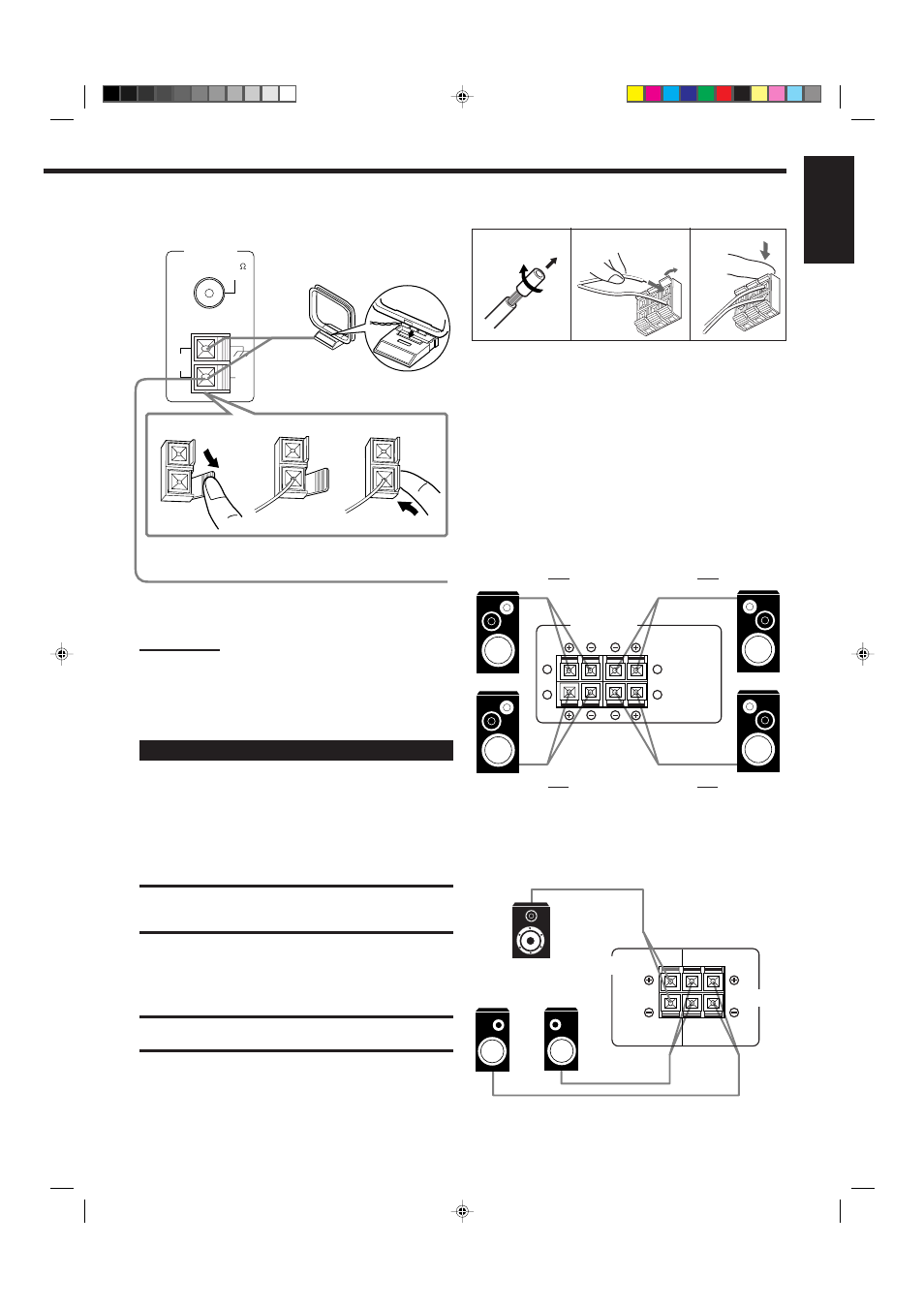

Connecting the Speakers
You can connect the following speakers:
• Two pairs of front speakers to produce normal stereo sound.
• One pair of rear speakers to enjoy the surround effect.
• One center speaker to produce more effective surround effect (to
emphasize human voices).
• One subwoofer to enhance the bass.
IMPORTANT:
After connecting the speakers listed above, set the speaker setting
information properly to obtain the best possible DSP (Digital Signal
Processor ) effect. For details, see page 11.
For each speaker (except for a subwoofer), connect the (–) and (+)
terminals on the rear panel to the (–) and (+) terminals marked on
the speakers. For connecting a subwoofer, see page 5.
CAUTION:
Use speakers with the SPEAKER IMPEDANCE indicated by the
speaker terminals.
AM Antenna Connections
AM Loop Antenna
Snap the tabs on the loop into the
slots of the base to assemble the
AM loop.
Basic connecting procedure
1 Cut, twist and remove the insulation at the end of
each speaker signal cable.
2 Open the terminal and then insert the speaker
signal cable.
3 Close the terminal.
Connecting the front speakers
You can connect two pairs of front speakers (one pair to the FRONT
SPEAKERS 1 terminals, and another pair to the FRONT
SPEAKERS 2 terminals).
Connecting the rear and center speakers
Connect rear speakers to the REAR SPEAKERS terminals and a
center speaker to the CENTER SPEAKER terminals.
2 1 3
Center speaker
Left rear
speaker
Right rear
speaker
FRONT SPEAKERS 1 Left speaker Right speaker
FRONT SPEAKERS 2 Left speaker Right speaker
ANTENNA
AM
EXT
AM
LOOP
FM 75
COAXIAL
2 3 1
Outdoor single vinyl-covered wire
RIGHT LEFT
FRONT SPEAKERS
1
2
1
2
