22

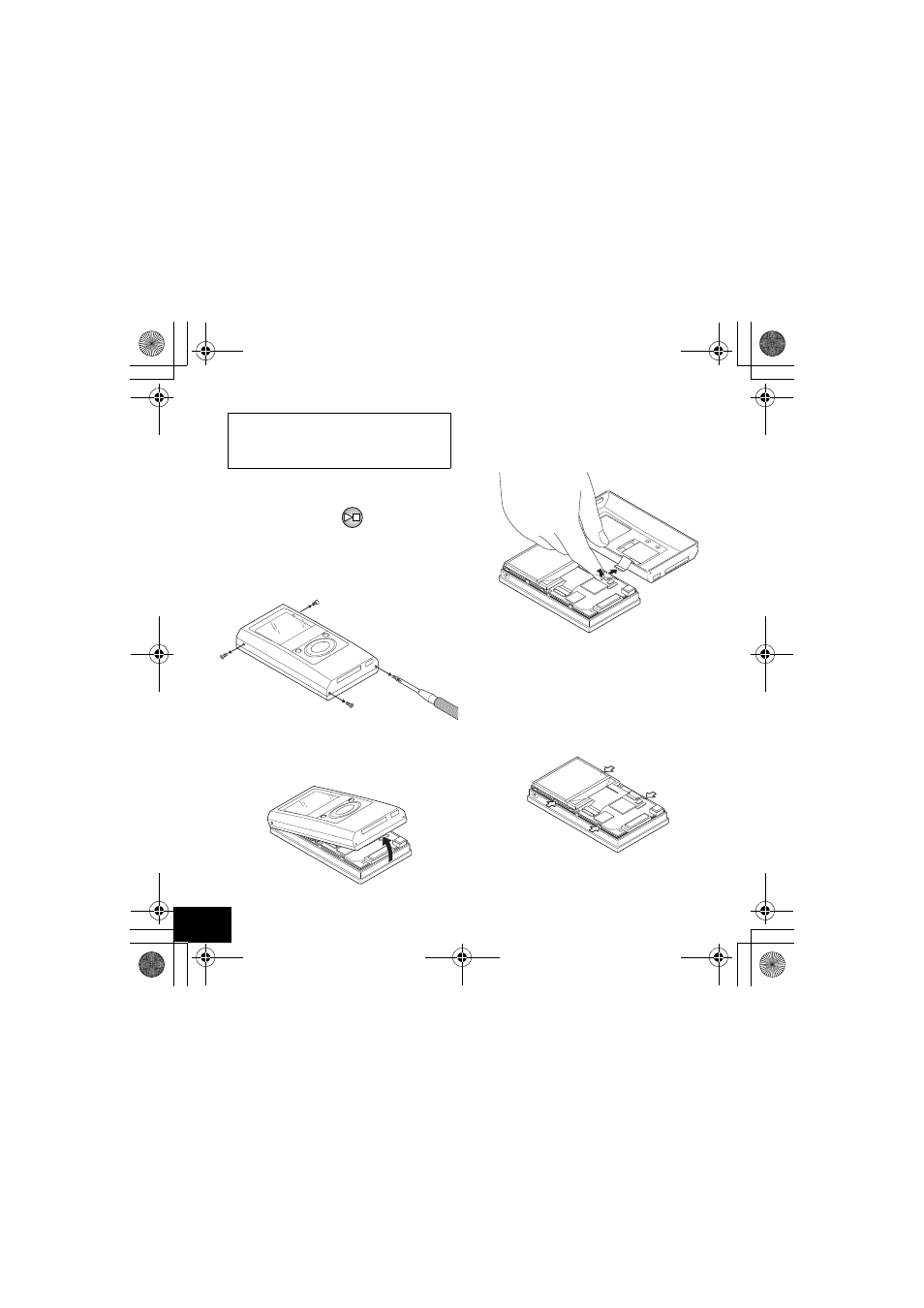

1 Turn off the power.
• Press and hold .
2 Remove the two screws on the
bottom and one screw on each
side.
3 Remove the top cabinet by lifting
it from the bottom.
4 Remove the connector as in the
illustration below, then remove
the top cabinet.
5 Remove the board from the
bottom cabinet.
• Release the lock, which are
indicated by the arrows and
remove the board by unlocking the
four parts in the illustration below.
DO NOT disassemble the XA-
HD500 except when you dispose
of it.
