AV COMPU LINK remote control system
The JVC AV COMPU LINK system allows you to enjoy video or audio with the simplest
operation.
If your video/audio player (such as a DVD player, CD player and VCR) and television or/and
amplifier/receiver support the JVC AV COMPU LINK system and are tied with the JVC AV
COMPU LINK cable(s), when you simply starting the player, all the necessary settings of
the television and/or amplifier/receiver for enjoying playback are automatically performed.
Using the AV COMPU LINK cable, connect the AV COMPU LINK terminals of each component to one another.
• If you connect a DVD player to a television via AV COMPU LINK, set the DVD player’s AV COMPU LINK setting as
follows.
• When connecting to VIDEO-1 input terminal of the television: DVD2
• When connecting to VIDEO-2 input terminal of the television: DVD3
• If you connect a DVD player to a television and VCR via AV COMPU LINK, set the VCR’s Remote Control Code and DVD
player’s AV COMPU LINK setting as follows.
• When connecting to VIDEO-1 input terminal of the television:
DVD player’s AV COMPU LINK setting: DVD2
VCR’s Remote Control Code: B
• When connecting to VIDEO-2 input terminal of the television:
DVD player’s AV COMPU LINK setting: DVD3
VCR’s Remote Control Code: A
• If you connect a DVD player to a television and receiver via AV COMPU LINK, set the DVD player’s AV COMPU LINK
setting to DVD1.
• The DVD player’s AV COMPU LINK setting is operated in the SYSTEM page of the preference display.
See page 42 for operation.
• For information on the connection between the TV and the Receiver, refer to the Receiver’s Instructions.
Connection and setup
IMPORTANT!
you connect the component video output to your TV:
• set the DVD player’s AV COMPULINK setting to DVD1.
• make the video/audio connection between the DVD player and your receiver using the supplied audio/video cable, and do not
make the S-VIDEO connection.

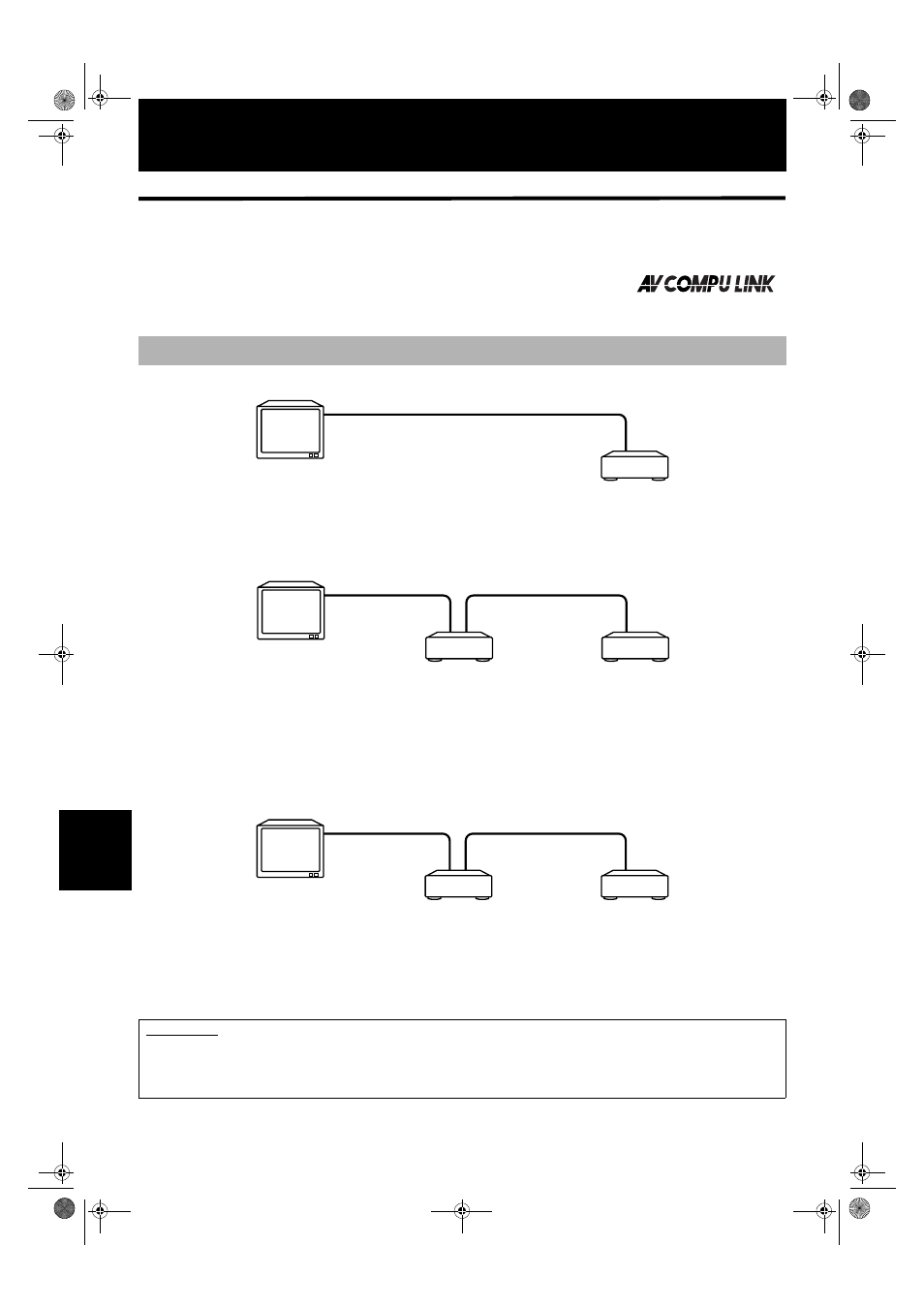

To AV COMPU LINK (II or EX)
DVD player
TV
To AV COMPU LINK (II or EX)
To AV COMPU LINK
TV
DVD player VCR (Video Cassette Recorder)
To AV COMPU LINK (II or EX)
TV
Receiver DVD player
