2 Keep holding down the 7 (STOP) button on the front panel.
After a few more seconds, “C OUT” replaces “S OUT” in the display window.
Now the COMPONENT VIDEO jacks are active.
• To change the active jack(s) from the COMPONENT VIDEO to the S-VIDEO jack, use the similar procedure.
You can enjoy high-quality audio by connecting the unit's audio output to your amplifier or receiver.
• Connect the unit's AUDIO OUT to any line-level inputs (such as AUX, DVD, CD, etc.) of an audio amplifier or receiver.

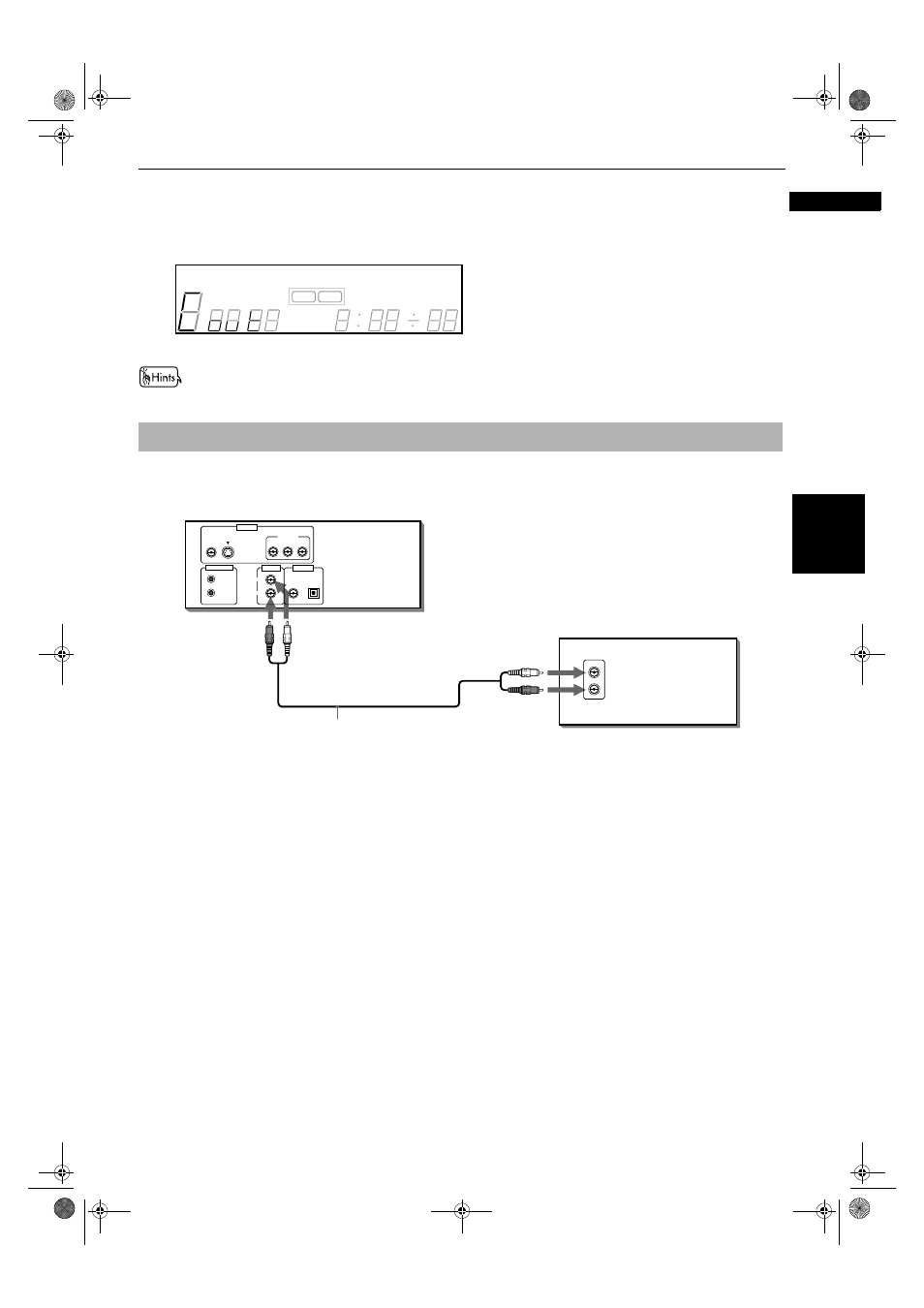

To connect to an audio amplifier or receiver
3D-PHONIC
DISC TITLE CHAP.
PROGRAM
EACH
REMAIN
DVD VCD
RANDOM
RESUME REPEAT 1A-B
THEATER
TRACK
(Display window)
Amplifier or receiver
Audio cable
(not supplied)
White
Red
The unit
White Red
PCM / STREAM
OPTICAL COAXIAL
Y P B P R
AV COMPU LINK
LEFT
RIGHT
AUDIO OUT DIGITAL OUT
VIDEO S-VIDEO
VIDEO OUT
COMPONENT
AUDIO
RIGHT
LEFT
IN
