Page 8

J-Allure
SHIM
WALL EXTRUSION
FINISHED WALL
90
°
SHIM
WALL EXTRUSION
FINISHED WALL
90
°
SHIM

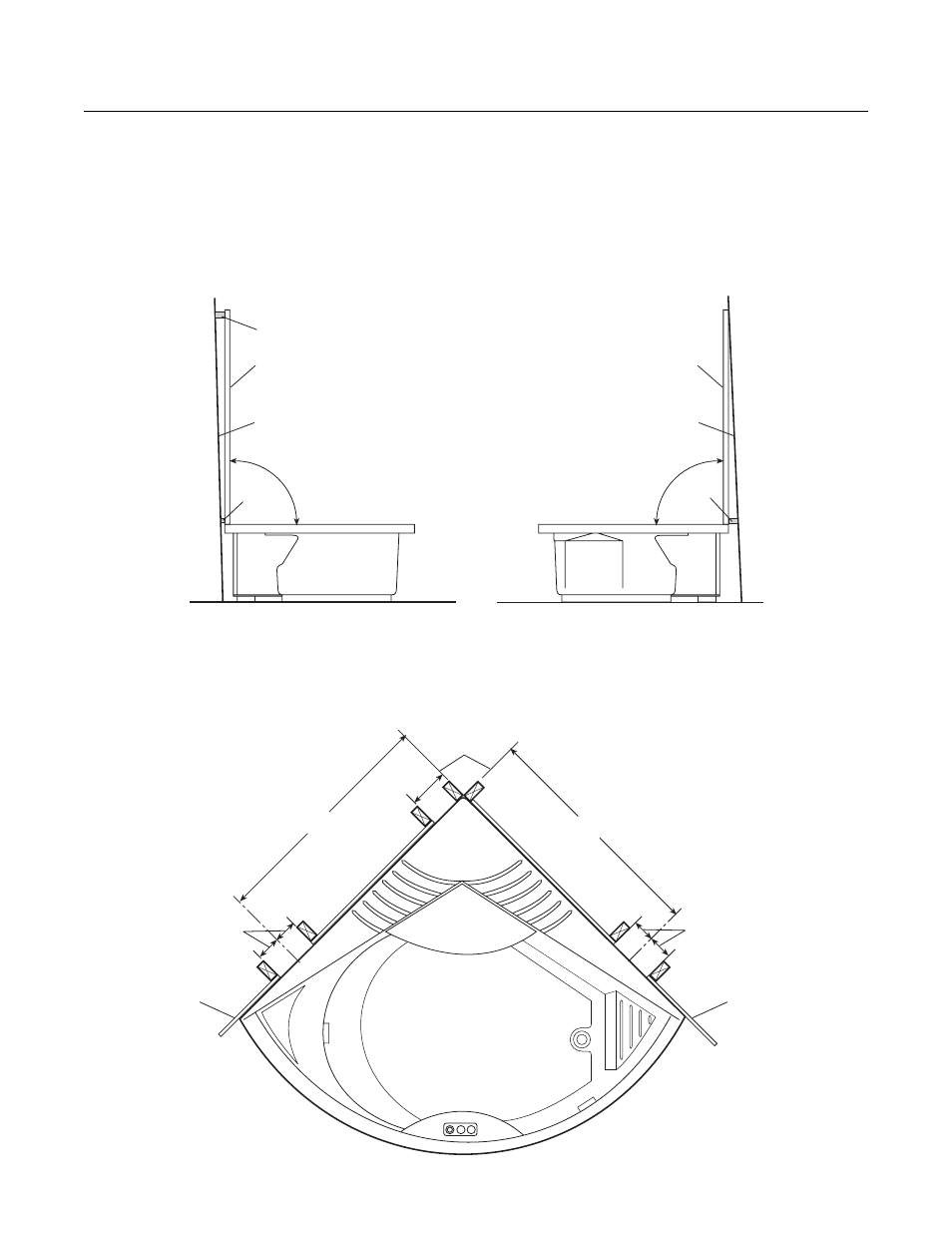

Finished Walls
Before fixing the bath in place, make sure the finished walls above the rim of the bath are perpendicular. The two wall
extrusions at the edges of the fixed panels will allow some compensation for walls out of true less than 3/16". (See
fixed panels installation for wall extrusions.) If that is the case, the bath may be placed against the finished walls. If
more than 3/16", shims will be necessary and the bath moved away from the wall an appropriate distance. When final
setting of the bath, secure the metal straps attached to the bath to the floor with screws or anchors.
6
38"
4-1/2"
4-1/2"
38"
12"
FINISHED
WALL
FINISHED
WALL
FACE OF
FINISHED
WALL
Wall Cutouts
