J-Allure
Dome Installation

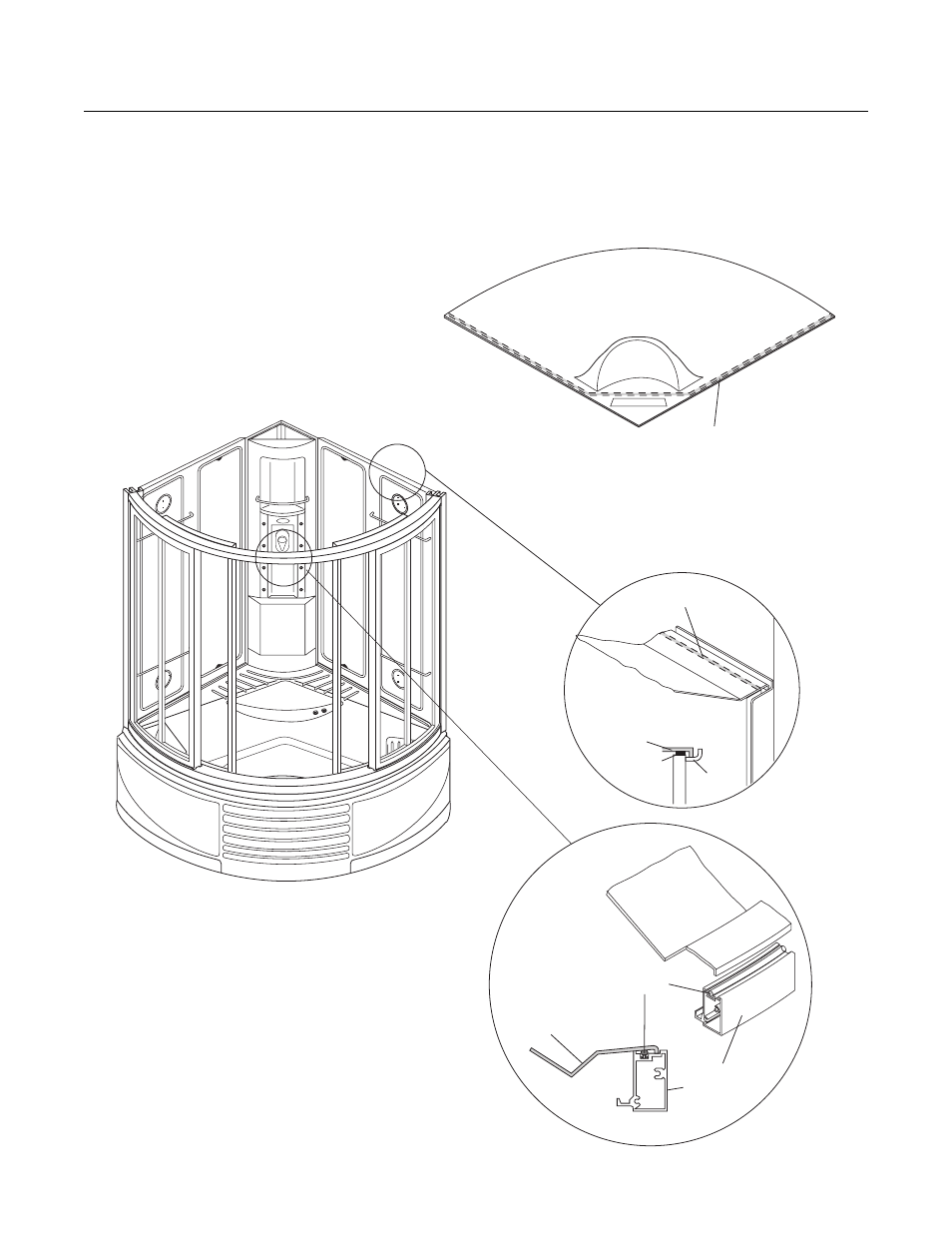

Apply gasket to dome as shown below. Note: there is no gasket on the dome where it rests on the upper guide. Then
carefully lift the dome and place onto the corner panel , side walls and upper guide. Bring the edge of the dome in
contact with the front part of the upper guide. Note the correct position of the dome on the upper guide and side walls
as shown below.
SIDEWALL
DOME
DOME
DOME
UPPER
GUIDE
GASKET
GASKET
GASKET
GASKET
DOME
FRAME
20
